Data Acquisition

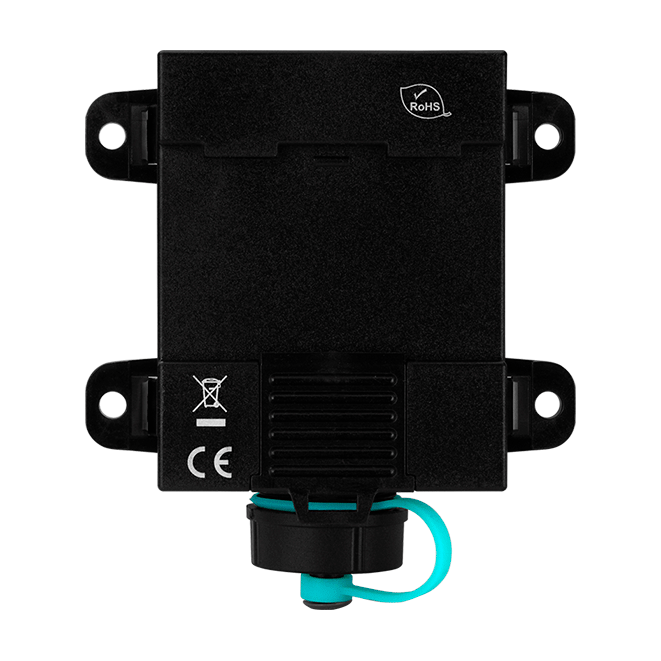

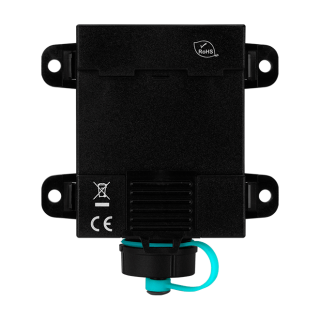

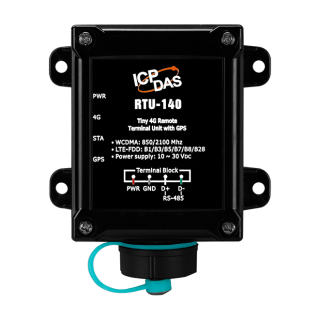

RTU-140

  • Support for UMTS/HSPA+850/2100 MHz.
  • Support LTE-FDD B1/B3/B5/B7/B8/B28.
  • Automatic / continuous 3G / 4G connection management.
  • Supports Modbus RTU master communication protocol, allowing three ModBus RTU devices to be connected in series via one RS-485 interface.
  • Provide OPC Server software and centralized data management.
  • Can be used as I/O and GPS data logger, data stored in micro SD card.
  • Micro SD capacity support up to 4GB.
  • 1 set of Micro USB (for setting), 1 set of RS485, 1 set of GPS.
  • Provide 3.7V lithium battery backup power interface.

Introduction

establish monitoring programs. In addition to the above functions, the RTU-140 also supports RTU Center related monitoring functions. It also has the function of I/O data logger, which can store I/O and GPS data in Micro SD card. The external and lithium battery connection interface is provided at the input of the power supply. After the external power supply is interrupted, the RTU-140 series can also operate for a period of time for emergency processing.

Specifications



 Software
 Service RTU



 CPU Module
CPU 32 bit CPU
Storage Expansion 4GB max



Isolation
Intra-module Isolation 3000 VDC



EMS Protection
EFT (IEC 61000-4-4) ±4 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
Surge (IEC 61000-4-5) ±0.5 kV for Power Line



LED Indicators
Status 1 x Power and Communication



Analog Input
Channels 8
Type Thermistor
Sensor Type Precon ST-A3, Fenwell U, YSI L100, YSI L300, YSI L1000, YSI B2252, YSI B3000, YSI B5000, YSI B6000, YSI B10000, YSI H10000, YSI H30000, User-defined
Resistance Measurement 200 kΩ Max.
Resolution 16-bit
Accuracy ±0.1% of FSR
Sampling Rate 8 Hz (Total)
Overvoltage Protection 120 VDC
Individual Channel Configuration Yes
Open Wire Detection Yes



Digital Output
Channels 6
Type Open Collector
Sink/Source (NPN/PNP) Sink
Load Voltage +3.5 ~ +50 VDC
Load Current 650 mA/Channel
Overvoltage Protection 60 VDC
Overload Protection 1.4 A
Short-circuit Protection Yes
Power on Value Programmable
Safe Value Programmable



COM Ports
Ports 1 x RS-485
Baud Rate 1200 ~ 115200 bps
Data Format (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1)
Protocol Modbus RTU, DCON



Power
Reverse Polarity Protection Yes
Input Range +10 ~ +30 VDC
Consumption 1.3 W



Mechanical
Dimensions (mm) 72 x 123 x 35 (W x L x H)
Installation DIN-Rail Mounting



Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, Non-condensing



Description

 PRODUCT SERIES     DESCRIPTION    QNT   INQUIRY
RTU-140  4G Remote Terminal Unit with GPS (RoHS) (Asia Only) 1
