4G-5G IOT GATEWAY

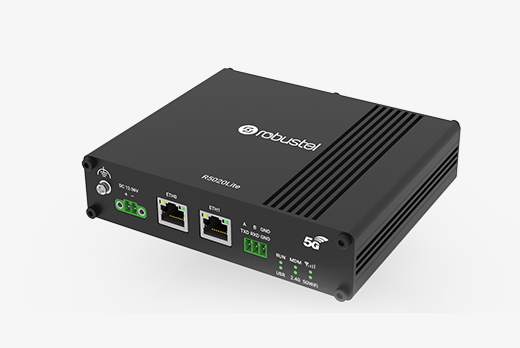

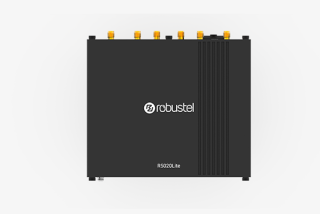

R5020 Lite 5G Router

  • Low cost industrial 5G Router
  • Global 5G/4G/3G cellular connections
  • Cutting-edge 5G 3GPP Release 16 cellular interface
  • Supports Ethernet, Wi-Fi and 5G/4G internet with auto-failover
  • 1 x RS232/RS485 (software configurable) ports for connection to industrial/legacy devices
  • Fully programmable Operating System with well documented SDK
  • Multiple VPN options are available, including DMVPN, IPsec, L2TP + more…
  • Free cloud management platform – RCMS
  • Robust metal enclosure with small footprint – DIN-rail + wall mount options

Introduction

The R5020 Lite is Robustel’s new 5G capable router supporting global 5G, 4G and 3G bands. The R5020 Lite leverages our tried and tested high performance CPU platform and RobustOS 5 – an Operating System developed in-house by Robustel that has passed extensive 3rd party penetration testing.

Specifications

 Cellular Interface

 Number of antennas

4 (ANT0 + ANT1 + ANT2 + ANT3)

 Connector

SMA-K

 SIM

2 Mini SIM (2FF)



 Ethernet Interface

 Number of ports

2 x 10/100/1000 Mbps,

2 LAN by default, can be configured as

1 WAN + 1 LAN

 Magnet isolation protection

1 KV



 Wi-Fi Interface

 Number of antennas

2 (Wi-Fi1 + Wi-Fi2)

 Connector

RP-SMA-K

 Standards

802.11b/g/n/ac, 2 x 2 MIMO, supports AP and Client modes

 Frequency bands

2.412 – 2.472 GHz (2.4 GHz ISM band)

5.15 – 5.825 GHz (5 GHz ISM band)

 Security

WPA, WPA2, WEPW, PA3*

 Encryption

AES, TKIP, WEP64

 Data speed

5G: Up to 867 Mbps

2.4G: Up to 300 Mbps



 Serial Interface
 Number of ports 1 x RS232 or 1 x RS485 (Software configurable)
 Connector 1 x 3-pin 3.5 mm female socket
 ESD protection ±8 KV air discharge, ±6 KV contact discharge
 Baud rate 300 bps ~ 115200 bps
 Signal definition RS232: TXD, RXD, GND

RS485: Data+ (A), Data- (B), Ground (GND)



 Others
 Reset button

1 x RST

 LED indicators

1 x RUN, 1 x Modem, 1 x USR, 1 x RSSI, 1 x Wi-Fi 2.4G，1 x Wi-Fi 5G

 Built-in

Watchdog



 Software (Basic features of RobustOS)

 Network protocols

PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, SSH2, DDNS, etc.

 VPN tunnel

IPsec, OpenVPN, GRE

 Firewall

DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control

 Management

Web, CLI, SMS

 Serial port

Transparent, TCP Client/Server, UDP, Modbus RTU to TCP

 Others

Data Guard, etc.



  SDK

 Supported programming languages

C, C++

 Flash available for SDK

5 MB

 RAM available for SDK

128 MB



 App Center (Available Apps for RobustOS)

 Apps

L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Dynamic Route, Captive Portal, Modbus Master, TR069



 Power Supply and Consumption

 Connector

2-pin 3.5 mm female socket with lock

 Input voltage

12 ~ 36 VDC

 Power consumption

Idle: 520 mA@12 V

Data link: 1.8 A (peak) @12 V



 Physical Characteristics

 Ingress protection

IP30

 Housing & Weight

Aluminum, 475 g

 Dimension

136 x 115 x 32 mm

 Installations

DIN rail mounting, desktop or wall mounting

 Operating temperature

-20 ~ +55°C (Normal operation)

-25 ~ +70°C (Extended operation)

 Storage temperature

-40 ~ +85°C

 Relative humidity

5 ~ 95%RH



 Regulatory and Type Approvals
 Environmental RoHS2.0
 Physical Features IEC 60068-2-6 (Sinusoidal Vibration)

IEC 60068-2-64 (Random Vibration)

IEC 60068-2-27 (Mechanical Shock)
 EMI EN 55032 Conducted Emission Class B

EN 55032 Radiated Emission Class B
 EMS

EN 61000-3-2 (Harmonic Current)

EN 61000-3-3 (Voltage Flicker)

EN 61000-4-2 (ESD) Contact Level 3, Air Level 3

EN 61000-4-3 (RS) Level 3

EN 61000-4-4 (EFT) Power Ports Level 2

Signal Ports Level 3

EN 61000-4-5 (Surge)

Line to line Level 2, Line to ground Level 3

EN 61000-4-6 (CS) Level 3

EN 61000-4-11 (Dips) Class 2



Description

 PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY
 R5020 Lite High Speed Smart 5G Router 2 Eth + 1 RS232 /RS485 + GNSS (Optional) +
Dual-band Wi-Fi





 Model

Model

PN

Frequency Bands*

Country/ Region

Certification (*In progress)

R5020L-A-5G-A25GL

B098004

5G: NR NSA: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/

n40/n41/n48/n66/n71/n77/n78/n79

NR SA: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/

n40/n41/n48/n66/n71/n77/n78/n79

4G: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12(B17)/B13/B14/B18/

B19/B20/B25/B26/B28/B29/B30/B32/B66/B71

LTE TDD: B34/B38/B39/B40/B41/B42/B43/B48

3G: WCDMA: B1/B2/B3/B4/B5/B6/B8/B19

　Global

CB, CE, UKCA, RCM, TELEC, JATE
