4G-5G IOT GATEWAY

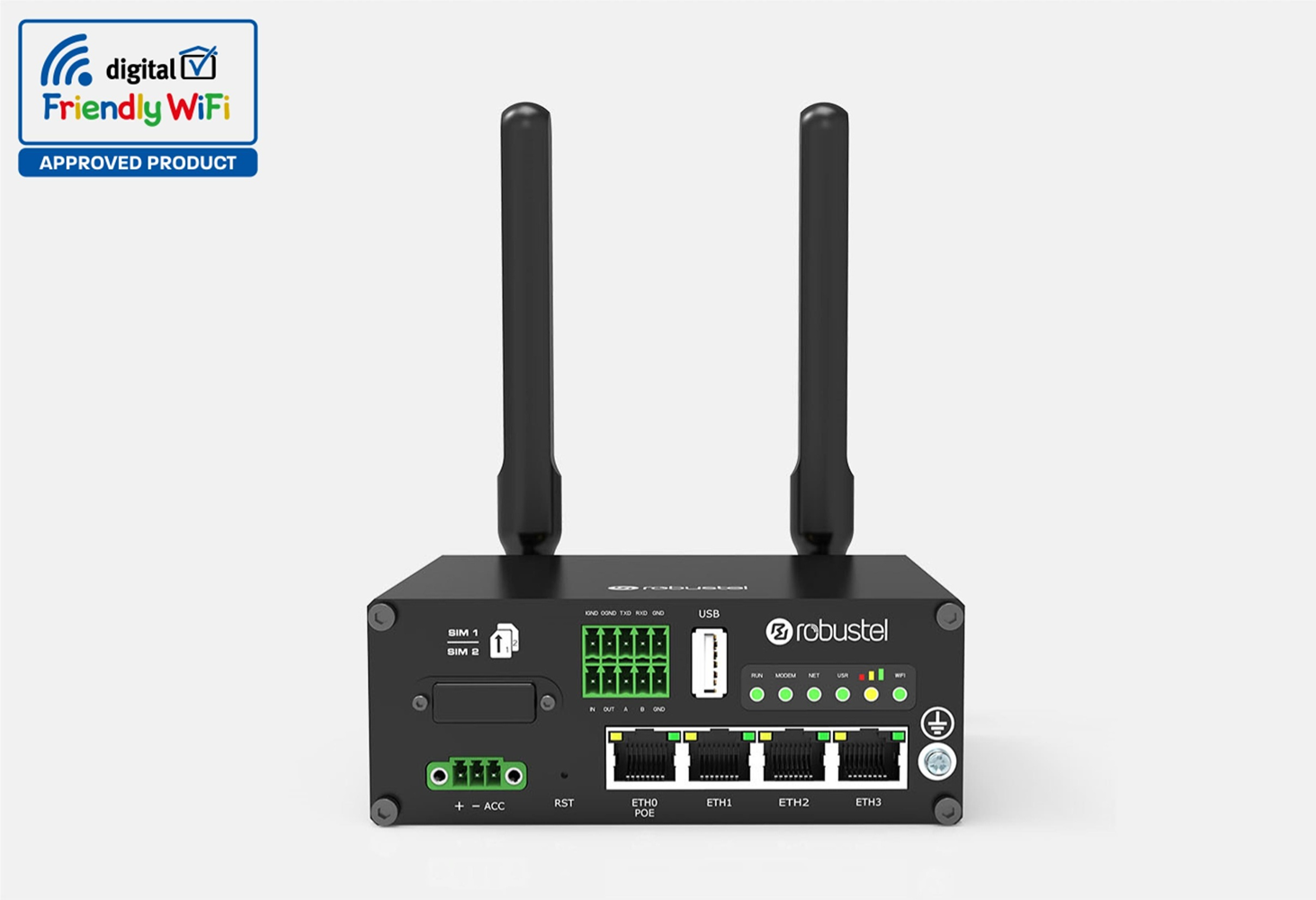

The Robustel High Speed Smart LTE /LTE-A Router (R2110) is a rugged cellular router offering state-of-the-art mobile connectivity for internet of things applications.
R2110 is a powerful platform developed based on RobustOS, a Robustel self-developed and Linux-based operating system which is designed to be used in Robustel devices. The RobustOS includes basic networking features and protocols providing customers with excellent user experience. Meanwhile, RobustOS offers Software Development Kit (SDK) allows partners and customers to develop IoT applications by using C, C++. It also provides various Apps to meet fragmented IoT market demands.
Key Features
The Robustel High Speed Smart LTE/LTE-A Router (R2110) is a rugged
cellular router offering state-of-the-art mobile connectivity for internet of
things applications. R2110 is a powerful platform developed based on RobustOS, a Robustel
self-developed and Linux-based operating system which is designed to be
used in Robustel devices. The RobustOS includes basic networking features
and protocols providing customers with excellent user experience. Meanwhile, RobustOS offers Software Development Kit (SDK) allows
partners and customers to develop IoT applications by using C, C++. It also
provides various Apps to meet fragmented IoT market demands. RCMS is Robustel’s free router monitoring service that is fully compatible
with the R2110. It allows customer to see a location overview of their
routers quickly and simply on a map. Features such as data usage, signal
strength, current network and much more can then be viewed on a per
router basis. Over-the-air updates are supported for Firmware, router
configuration and Apps serving as essential ‘insurance’ if anything was not
quite right during deployment.

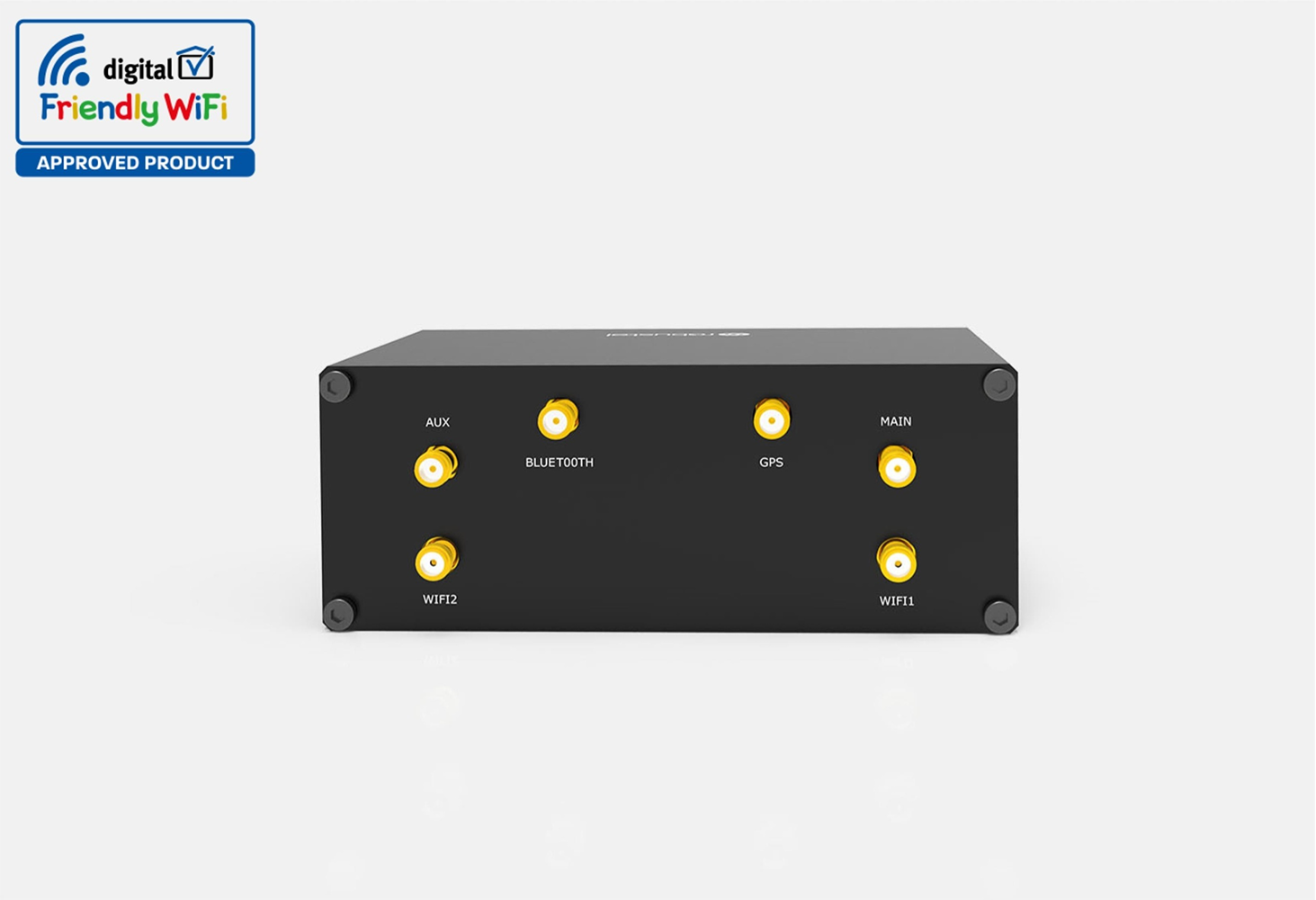

| Cellular Interface | |
|---|---|
| Number of antennas | 2 (MAIN + AUX) or 1 (MAIN) |
| Connector | SMA-K 2 x Mini SIM (2FF) |
| SIM | |
| Ethernet Interface | |
|---|---|
| LAN port | 3 x LAN (10/100/1000 Mbps) |
| WAN port | Support 802.3at PD feature on ETH0 |
| 1 x WAN (10/100/1000 Mbps) | |
| Magnet isolation protection | 1 KV |
| Wi-Fi Interface | |
|---|---|
| Number of antennas | 2 |
| Connector | RP-SMA-K |
| Standards | 802.11a/b/g/n/ac 2*2 MIMO, supports AP and Client modes |
| Frequency bands | 2.412 – 2.472 GHz (2.4 GHz ISM band) |
| 5.15 – 5.825 GHz (5 GHz ISM band) | |
| Security | Open, WPA, WPA2, WEP |
| Encryption | AES, TKIP, WEP64 |
| Data speed | 5G: Up to 867Mbps |
| 2.4G: Up to 300Mbps | |
| Bluetooth Interface | |
|---|---|
| Number of antennas | 1 |
| Connector | RP-SMA-K |
| Standards | BLE 5.0 Compatible with BLE 4.2, BLE 4.0 |
| GNSS | |
|---|---|
| Number of antennas | 1 |
| GNSS technology | GPS/QZSS/GOLNASS/Galileo/BeiDou |
| Connector | SMA-K with 50 ohms impedance |
| Tracking sensitivity | GNSS: greater than -148 dBm |
| Horizontal position accuracy | GNSS: 2.5 m |
| Serial Interface | |
|---|---|
| Number of ports | 1 x RS-232 + 1 x RS-485 |
| Connector | 2 x 3-pin 3.5 mm female socket |
| ESD protection | ±15 KV |
| Baud rate | 300bps to 115200bps |
| DI/DO | |
|---|---|
| Type | 1x DI + 1 x DO, wet contact |
| Connector | 2 x 2-pin 3.5 mm female socket |
| Isolation | 3.75KV DC |
| Absolute maximum VDC | “V+” +30V DC (DI), +30V DC (DO) |
| Absolute maximum ADC | 100 mA |
| Others | |
|---|---|
| Reset button | 1 x RST |
| SD | 1 x Micro SD interface |
| Expansion | 1 x USB2.0 Host; 5V/500mA |
| LED indicators | 1 x RUN, 1 x Modem, 1 x USR, 1 x RSSI, 1 x NET, 1 x WIFI |
| Built-in | Watchdog |
| Software | |
|---|---|
| Network protocols |
PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, |
| VPN tunnel | IPsec, OpenVPN, GRE |
| Firewall | DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
| Management | Web, CLI, SMS |
| Serial port | Transparent, TCP Client/Server, UDP, Modbus RTU to TCP |
| App Center | |
|---|---|
| Apps | L2TP, PPTP, DMVPN , VRRP, QoS, Captive Portal, WLAN Multi AP, SNMP, Language, RCMS |
| SDK | |
|---|---|
| Supported programming language | C, C++ |
| Flash available for SDK | 5 MB |
| RAM available for SDK | 256 MB |
| Power Supply and Consumption | |
|---|---|
| Connector | 3-pin 3.5 mm female socket with lock |
| Input voltage | 9 ~ 36 VDC |
| Power consumption | Idle: 500 mA@12 V
Data link: 1.3 A (peak) @12 V |
| Physical Characteristics | |
|---|---|
| Ingress protection | IP30 |
| Housing & Weight | Aluminum, 500 g |
| Dimension | 125 x 100 x 48 mm |
| Installations | Desktop, wall mounting and DIN rail mounting |
| Operating temperature | Normal operation: -20 ~ +55 °C
Extended operation: -25 ~ +70 °C |
| Storage temperature | -40 ~ +85 °C |
| Relative humidity | 5 ~ 95% RH |
| PRODUCT SERIES | DESCRIPTION | QTY | INQUIRY |
|---|---|---|---|
| R2110 | High Speed Smart LTE/LTE-A Router 4 Eth + 1 RS232 + 1 RS485 + Bluetooth |  |
| Model | PN | Category | Wi-Fi | GNSS | Frequency Bands | Country/ Region |
Certifications |
|---|---|---|---|---|---|---|---|
| R3000-NU | B018001 | – | – | – | – | EMEA | CE |
| B018002 | – | ✓ | – | – | EMEA | CE | |
| R3000-4L | B018728 | Cat 4 | – | – | 4G: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28
LTE TDD: B40 3G: WCDMA: B1/B2/B5/B8 2G: GSM: B2/B3/B5/B8 |
Oceania
South America |
RCM, ANATEL, CRC, MTC, ENACOM, ASEP |
| B018729 | ✓ | – | |||||
| B018735 | – | – | 4G: LTE FDD: B1/B3/B5/B7/B8/B20
LTE TDD: B38/B40/B41 3G: WCDMA: B1/B5/B8 2G: GSM: B3/B8 |
EMEA | CE, E-Mark, UKCA | ||
| B018739 | ✓ | – | |||||
| B018744 | ✓ | ✓ | 4G: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/
B18/B19/B20/B25/B26/B28 LTE TDD: B38/B39/B40/B41 3G: WCDMA: B1/B2/B4/B5/B6/B8/B19 2G: GSM: B2/B3/B5/B8 |
North America
EMEA |
IC, UL, FCC, PTCRB, AT&T, Verizon, CE, UKCA | ||
| B018745 | – | ||||||
| B018752 | – | – | 4G: LTE FDD: B1/B3/B8/B18/B19/B26
LTE TDD: B41 3G: WCDMA: B1/B6/B8/B19 |
Japan | Telec, JATE |
