4G-5G IOT GATEWAY

R2011

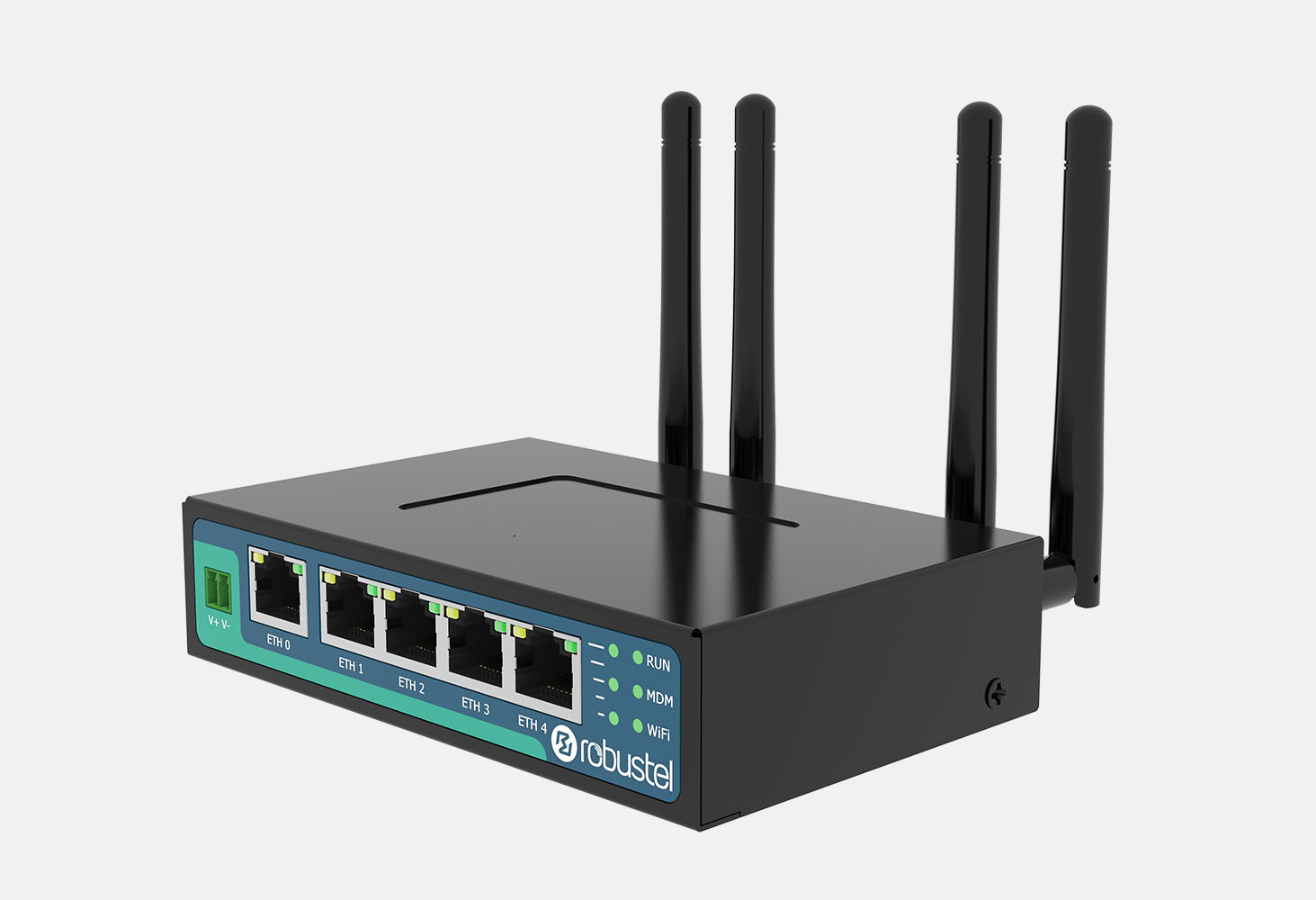

The Robustel R2011 Industrial Cellular Router is a rugged, versatile 4G router with 5 Ethernet ports, dual SIM single standby capability and a range of advanced functions for mission critical IoT or M2M applications.



The R2011 runs on Robustel’s own Linux based Operating System, RobustOS. Developed entirely in-house, this gives way to a very high standard of technical support and high reliability. Robustel offers a Software Development Kit (SDK) to allow additional customization by using C, C++. It also provides rich Apps to meet fragmented IoT market demands such as:



RobustVPN
Highly flexible hosted VPN service so customers can easily enjoy a “fixed IP router”

Data-Guard
Invaluable failsafe in case of a system failure and runaway data usage

Smart Reboot
SMS tool to push roaming SIMs from a non-working to working state

Smart Roaming
Provides you with device-assisted intelligent network selection for roaming SIMs to improve performance and reduce risk.



  • Dual-SIM redundancy for continuous cellular network connections
  • Link Manager supports Cellular WAN, Ethernet WAN, WLAN WAN link backup and ICMP detection
  • WAN – Static/DHCP Client
  • RobustOS + SDK + Apps
  • IPsec/OpenVPN/GRE/Wireguard VPN capabilities
  • Management and maintenance via Web/RCMS Cloud
  • Auto reboot via SMS/time schedule
  • Robust industrial design (9 to 36 V DC, desktop or wall mounting or DIN rail mounting)

Introduction

The Robustel R2011 Industrial Cellular Router is a rugged, versatile 4G router with 5
Ethernet ports, dual SIM single standby capability and a range of advanced functions
for mission critical IoT or M2M applications.
The R2011 runs on Robustel’s own Linux based Operating System, RobustOS.
Developed entirely in-house, this gives way to a very high standard of technical
support and high reliability. Robustel offers a Software Development Kit (SDK) to
allow additional customization by using C, C++. It also provides rich Apps to meet
fragmented IoT market demands such as:
RobustVPN - Highly flexible hosted VPN service so customers can easily enjoy a
“fixed IP router”
Data-Guard - Invaluable failsafe in case of a system failure and runaway data usage
Smart Reboot - SMS tool to push roaming SIMs from a non-working to working
state
Smart Roaming - Provides you with device-assisted intelligent network selection for
roaming SIMs to improve performance and reduce risk.
RCMS is Robustel’s free router monitoring service that is fully compatible with the
R2011. It allows customer to see a location overview of their routers quickly and
simply on a map. Features such as data usage, signal strength, current network and
much more can then be viewed on a per router basis. Over-the-air updates are
supported for Firmware, router configuration and Apps serving as essential
‘insurance’ if anything was not quite right during deployment.

Specifications

 Cellular Interface

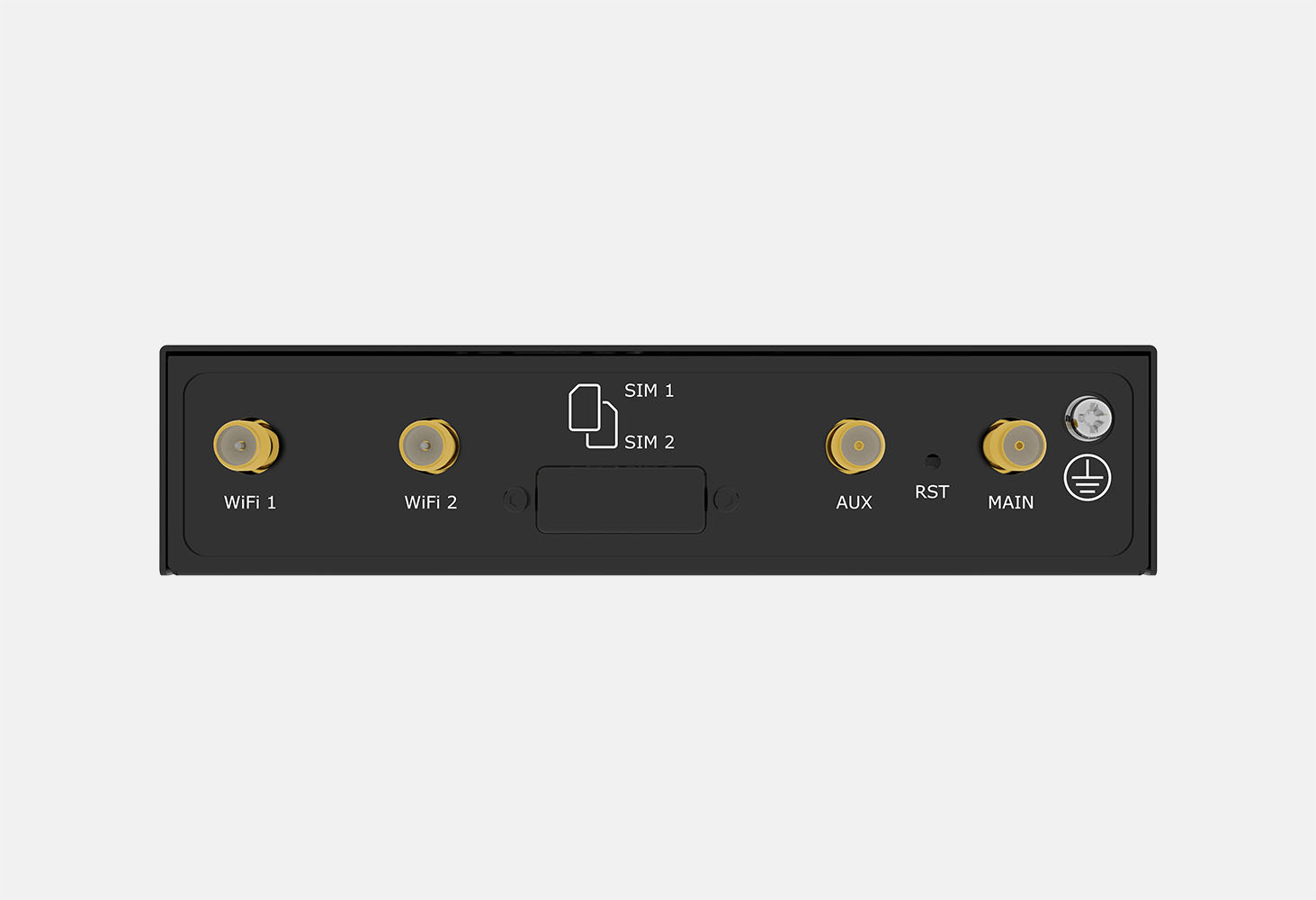

 Number of antennas 2 (MAIN + AUX) or 1 (MAIN)
 Connector SMA-K
 SIM 2 x Mini SIM (2FF)



 Ethernet Interface
 Number of ports 5 x 10/100 Mbps, 5 x LAN or 4 x LAN + 1 x WAN
 WAN port Supports 802.3at PD feature (optional)
 Magnet isolation protection 1.5 KV



 Wi-Fi Interface
 Number of antennas 2 (Wi-Fi1 + Wi-Fi2)
 Connector RP-SMA-K
 Standards 802.11 b/g/n, supporting AP and Client modes
 Frequency bands 2.4 GHz
 Security WEP, WPA, WPA2
 Encryption 64/128 AES, TKIP
 Data speed 2 x 2 MIMO, 300 Mbps



 DI/DO
 Type 1 x DI, 1 x DO
 Connector 1 x 4-pin 3.5 mm female socket
 Signal definition DI+, DI-, DO+, DO-
 Level 3.5 to 30V DC = HIGH, 0 to 1V DC = LOW
 Absolute maximum VDC 30V DC (DI/DO)
 Absolute maximum ADC 10mA (DI/DO)



 Serial Interface
 Type RS232 or RS485 (software configurable)
 Connector 1 x 3-pin 3.5 mm female socket
 Signal definition RS232: TXD, RXD, GND  RS485: A, B



 Others
 Reset button 1 x RST
 LED indicators 1 x RUN, 1 x MDM, 1 x Wi-Fi, 3 x RSSI
 Built-in Watchdog, Timer



 Software
 Network protocols

PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP,,

 VPN tunnel IPsec, OpenVPN, GRE, WireGuard
 Firewall DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
 Remote management Web, CLI, SMS



 App Center
 Apps L2TP, PPTP, DMVPN , VRRP, QoS, Captive Portal, WLAN Multi AP, SNMP, Language, RCMS



 SDK
 Supported programming language C, C++
 Flash available for SDK 16 MB
 RAM available for SDK 64 MB



 Power Supply and Consumption
 Connector 2-pin 3.5 mm female
 Input voltage 9 ~ 36 V DC
 Power consumption Idle: 70 mA@12 V
Data link: 660 mA (peak)@12 V



 Physical Characteristics
 Ingress protection IP30
 Housing & Weight Metal, 350g
 Dimensions 127 x 82 x 30 mm
 Installations Desktop, wall mounting and 35 mm DIN rail mounting
 Operating temperature -35 ~ +75°C
 Storage temperature -40 ~ +85°C
 Relative humidity 5% ~ 95%

Description

 PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY
 R2011  Industrial Cellular Router 5 x Eth + 2 x SIM



 Model     PN   Category Frequency Bands Country/
Region
  Certifications
R2011-A-4L-A23CN B070710 Cat 4 4G: LTE FDD: B1/B3/B5/B8  LTE TDD: B34/B38/B39/B40/B41

 3G: WCDMA: B1/B5/B8  2G: GSM: B3/B8

China, India CCC*
R2011-A-4L-A12EU B070712 Cat 4 4G: LTE FDD: B1/B3/B7/B8/B20/B28A  LTE TDD: B38/B40/B41

 3G: WCDMA: B1/B8  2G: GSM: B3/B8

EMEA CE, UKCA
R2011-A-4L-A03AU B070702 Cat 4 4G: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28  LTE TDD: B40

 3G: WCDMA: B1/B2/B5/B8  2G: GSM: B2/B3/B5/B8

South America, Oceania  RCM
R2011-B-4L-A23CN B070711 Cat 4 4G: LTE FDD: B1/B3/B5/B8  LTE TDD: B34/B38/B39/B40/B41

 3G: WCDMA: B1/B5/B8  2G: GSM: B3/B8

China, India CCC*
R2011-B-4L-A12EU B070713 Cat 4 4G: LTE FDD: B1/B3/B7/B8/B20/B28A  LTE TDD: B38/B40/B41

 3G: WCDMA: B1/B8  2G: GSM: B3/B8

EMEA CE, UKCA
R2011-B-4L-A03AU B070706 Cat 4 4G: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28  LTE TDD: B40

 3G: WCDMA: B1/B2/B5/B8  2G: GSM: B2/B3/B5/B8

South America, Oceania  RCM
