4G-5G IOT GATEWAY
The R2010 takes into account the varying budgetary, interface and connectivity requirements of customers to create a simple and cost-competitive networking solution for customers deploying IoT solutions in industrial environments such as water, gas, electricity, factory automation and warehousing.
The R2010 runs on Robustel’s own Linux based Operating System, RobustOS. Developed entirely in-house, this gives way to a very high standard of technical support and high reliability. Robustel offers a Software Development Kit (SDK) to allow additional customization by using C, C++. It also provides rich Apps to meet fragmented IoT market demands such as:
RobustVPN
Highly flexible hosted VPN service so customers can easily enjoy a “fixed IP Gateway”
Data-Guard
Invaluable failsafe in case of a system failure and runaway data usage
Smart Reboot
SMS tool to push roaming SIMs from a non-working to working state
Smart Roaming
Provides you with device-assisted intelligent network selection for roaming SIMs to improve performance and reduce risk.

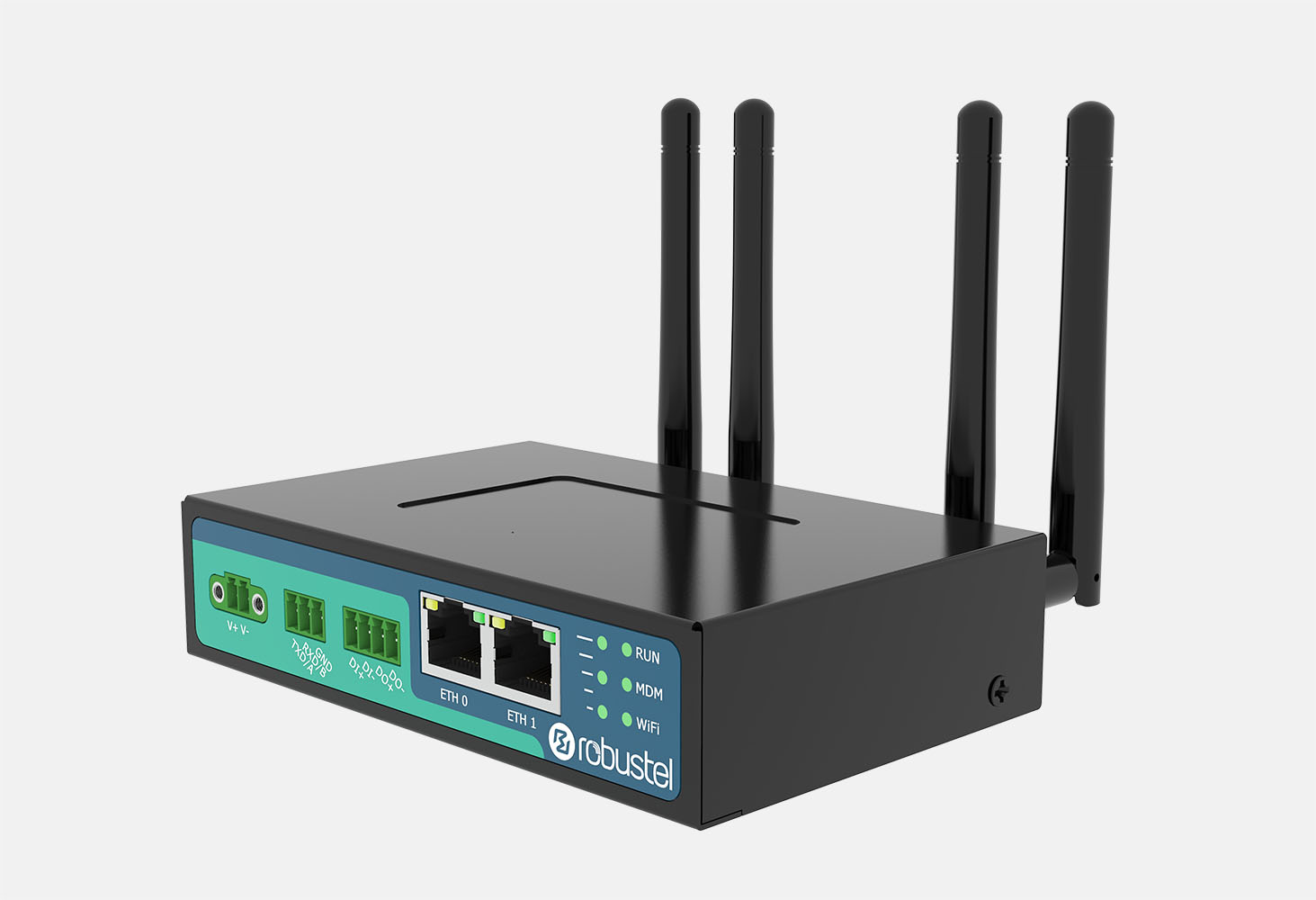

The Robustel R2010 Industrial Cellular Gateway is a rugged, versatile 4G Gateway
with dual Ethernet ports, dual SIM single standby capability and a range of advanced
functions for mission critical IoT or M2M applications.
The R2010 runs on Robustel’s own Linux based Operating System, RobustOS.
Developed entirely in-house, this gives way to a very high standard of technical
support and high reliability. Robustel offers a Software Development Kit (SDK) to
allow additional customization by using C, C++. It also provides rich Apps to meet
fragmented IoT market demands such as:
RobustVPN - Highly flexible hosted VPN service so customers can easily enjoy a “fixed
IP Gateway”
Data-Guard - Invaluable failsafe in case of a system failure and runaway data usage
Smart Reboot - SMS tool to push roaming SIMs from a non-working to working state
Smart Roaming - Provides you with device-assisted intelligent network selection for
roaming SIMs to improve performance and reduce risk.
RCMS is Robustel’s free router monitoring service that is fully compatible with the
R2010. It allows customer to see a location overview of their routers quickly and
simply on a map. Features such as data usage, signal strength, current network and
much more can then be viewed on a per router basis. Over-the-air updates are
supported for Firmware, router configuration and Apps serving as essential
‘insurance’ if anything was not quite right during deployment.

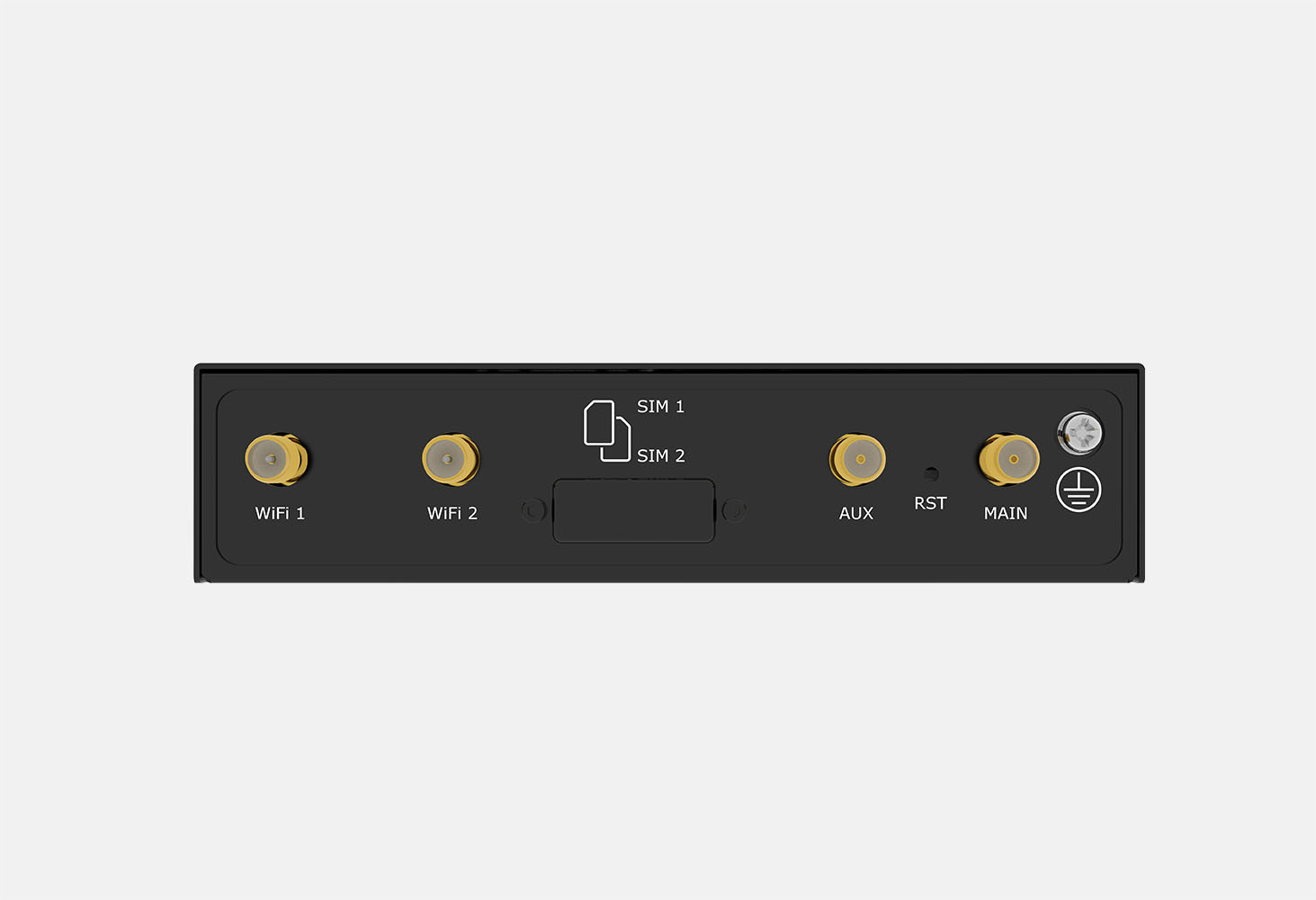

| Cellular Interface | |
|---|---|
| Number of antennas | 2 (MAIN + AUX) or 1 (MAIN) |
| Connector | SMA-K |
| SIM | 2 x Mini SIM (2FF) |
| Ethernet Interface | |
|---|---|
| Number of ports | 2 x 10/100 Mbps, 2 x LAN or 1 x LAN + 1 x WAN |
| WAN port | Supports 802.3at PD feature (optional) |
| Magnet isolation protection | 1.5 KV |
| Wi-Fi Interface | |
|---|---|
| Number of antennas | 2 (Wi-Fi1 + Wi-Fi2) |
| Connector | RP-SMA-K |
| Standards | 802.11 b/g/n, supporting AP and Client modes |
| Frequency bands | 2.4 GHz |
| Security | WEP, WPA, WPA2 |
| Encryption | 64/128 AES, TKIP |
| Data speed | 2 x 2 MIMO, 300 Mbps |
| DI/DO | |
|---|---|
| Type | 1 x DI, 1 x DO |
| Connector | 1 x 4-pin 3.5 mm female socket |
| Signal definition | DI+, DI-, DO+, DO- |
| Level | 3.5 to 30V DC = HIGH, 0 to 1V DC = LOW |
| Absolute maximum VDC | 30V DC (DI/DO) |
| Absolute maximum ADC | 10mA (DI/DO) |
| Serial Interface | |
|---|---|
| Type | RS232 or RS485 (software configurable) |
| Connector | 1 x 3-pin 3.5 mm female socket |
| Signal definition | RS232: TXD, RXD, GND RS485: A, B |
| Others | |
|---|---|
| Reset button | 1 x RST |
| LED indicators | 1 x RUN, 1 x MDM, 1 x WIFI, 3 x RSSI |
| Built-in | Watchdog, Timer |
| Software | |
|---|---|
| Network protocols |
PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, |
| VPN tunnel | IPsec, OpenVPN, GRE, WireGuard |
| Firewall | DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
| Remote management | Web, CLI, SMS |
| Serial port | Transparent, TCP Client/Server, UDP, Modbus RTU Gateway |
| App Center | |
|---|---|
| Apps | L2TP, PPTP, DMVPN , VRRP, QoS, Captive Portal, WLAN Multi AP, SNMP, Language, RCMS |
| SDK | |
|---|---|
| Supported programming language | C, C++ |
| Flash available for SDK | 16 MB |
| RAM available for SDK | 64 MB |
| Regulatory and Type Approvals | |
|---|---|
| Environmental | RoHS 2.0 |
| EMI | EN 55032 Conducted Emission class B EN 55032 Radiated Emission class B |
| EMS | IEC 61000-4-2 (ESD) Level 4
IEC 61000-4-3 (RS) Level 2 IEC 61000-4-4 (EFT) Level 2 IEC 61000-4-5 (Surge) Level 2 IEC 61000-4-6 (CS) Level 2 IEC 61000-4-11（DIP） |
| Physical Characteristics | |
|---|---|
| Ingress protection | IP30 |
| Housing & Weight | Metal, 350 g |
| Dimensions | 127 x 82 x 30 mm |
| Installations | Desktop, wall mounting and 35 mm DIN rail mounting |
| Operating temperature | -35 ~ +75℃ |
| Storage temperature | -40 ~ +85℃ |
| Relative humidity | 5% ~ 95% |
| PRODUCT SERIES | DESCRIPTION | QTY | INQUIRY |
|---|---|---|---|
| R2010 | Industrial Cellular Gateway 2 ETH+ 1 RS232/RS485 + 1 DI + 1 DO |  |
| Model | PN | Category | Frequency Bands | Country/ Region |
Certifications |
|---|---|---|---|---|---|
| R2010-A-4L-A04JP | B069717 | Cat 4 | 4G: LTE FDD: B1/B3/B8/B18/B19/B26
LTE TDD: B41 3G: WCDMA: B1/B6/B8/B19 |
Japan | JATE, Telec, E-Mark |
| R2010-A-4L-A12EU | B069714 | Cat 4 | 4G: LTE FDD: B1/B3/B7/B8/B20/B28A
LTE TDD: B38/B40/B41 3G: WCDMA: B1/B8 2G: GSM: B3/B8 |
EMEA | CE, E-mark, UKCA |
| R2010-A-4L-A03AU | B069705 | Cat 4 | 4G: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28
LTE TDD: B40 3G: WCDMA: B1/B2/B5/B8 2G: GSM: B2/B3/B5/B8 |
South America, Oceania | RCM, E-mark |
| R2010-A-4L-A27NA | B069718 | Cat 4 | 4G: LTE FDD: B2/B4/B5/B12/B13/B14
/B66/B71 3G: WCDMA: B2/B4/B5 |
North America | FCC, IC, PTCRB*, AT&T*, E-Mark |
| R2010-A-4L-A24EU | B069713 | Cat 4 | 4G: LTE FDD: B1/B3/B5/B7/B8/B20/B28
LTE TDD: B38/B40/B41 3G: WCDMA: B1/B5/B8 2G: GSM: B3/B8 |
SEA, India | CE, UKCA, E-Mark |
