R1500

4G-5G IOT GATEWAY

R1500

  • RobustOS + SDK + App
  • IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN and various VPNs
  • Supporting double cards link backup and ICMP detection
  • Supporting SMS, Email, SNMP Trap and RobustLink
  • Event alarms
  • Supporting Modbus RTU to TCP、Modbus Master
  • Supporting TCP client/server, UDP and virtual serial ports
  • Supporting IP Pass-through
  • DHCP server
  • Supporting RobustVPN cloud platform, providing easy and safe remote access for PLC and other industrial devices
  • Supporting RobustLink M2M centralized management platform, real time monitoring device network status and counting device flow
  • Supporting Web、CLI、USB、SMS and RobustLink to upgrade firmware
  • Powerful industrial design (9~36V DC input voltage, supporting desktop placement, wall mount or rail mount)

Introduction

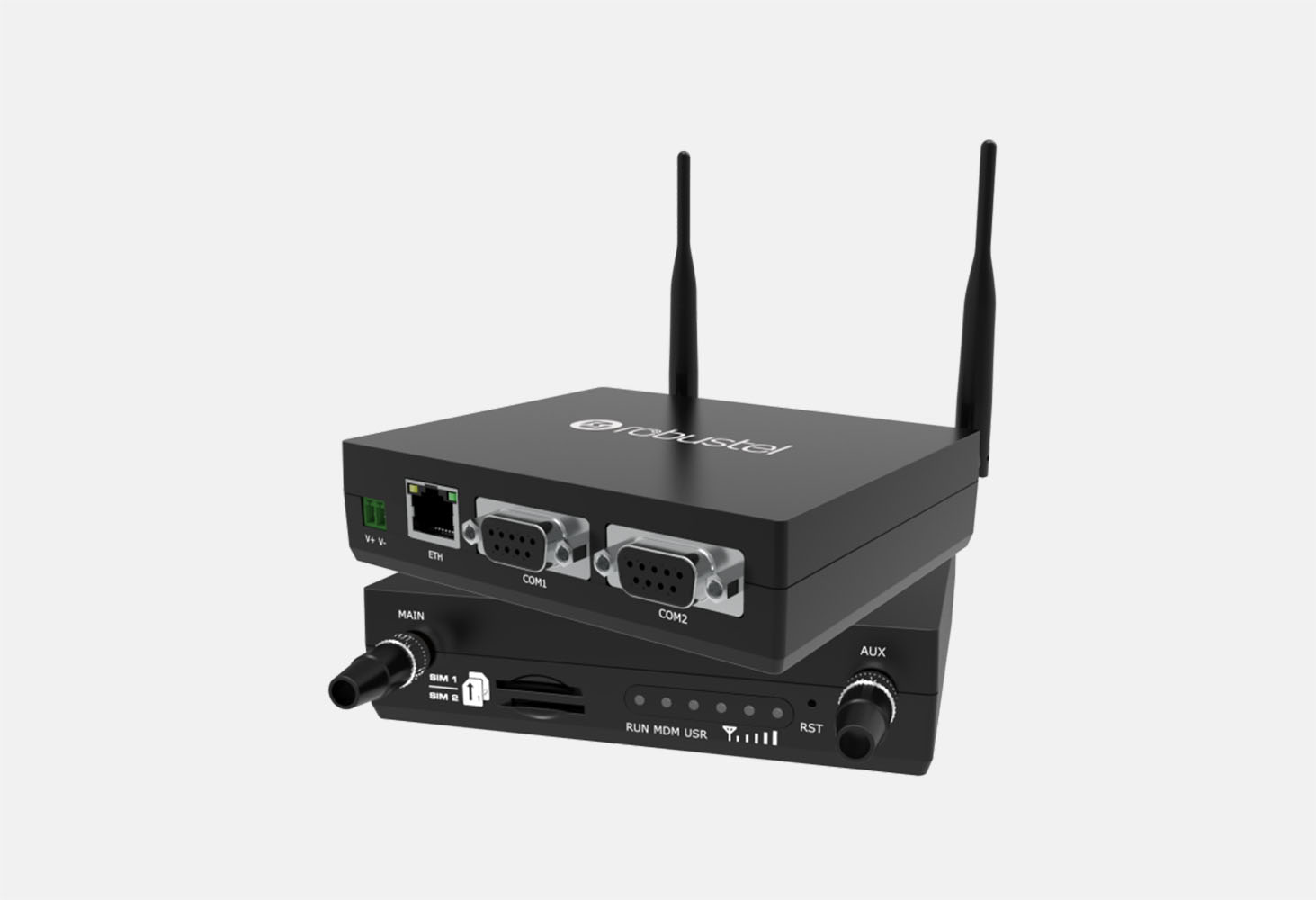

R1500 Industrial Cellular IoT Gateway
This gateway provides high-speed wireless network bandwidth for device-by-wireless connection and comes with dual-SIM backup to ensure a reliable, always-on connection for your network.

Specifications

 Cellular Interface
 Number of antennas 2 (MAIN + AUX)
 Connector SMA-K
 SIM 2 x Mini SIM (2FF)
 Standard GSM/WCDMA/FDD LTE/TDD LTE



 Ethernet Interface
 Number of ports 1 x 10/100 Mbps



 Serial Interface
 Number of ports 2 x RS232
 Connector DB9
 Signal TxD, RxD, GND, CTS, RTS, DSR, DTR
 Baud rate 300bps ~ 115200bps



 Others
 LED indicators 1 x RUN, 1 x MDM, 1 x USR, 3 x RSSI
  Network indicator (link + rate)
 Built-in RTC, Watchdog, Timer



 Software
 Network protocols PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, SMTP, Telnet, SSH2, DDNS, etc.
 VPN tunnel IPsec, OpenVPN, GRE
 Management Web, CLI, SMS
 Serial port Transparent, TCP Client/Server, UDP,



 App Center
 Apps Language, RCMS



 SDK
 Supported programming language  C, C++
 Flash available for SDK 5 MB
 RAM available for SDK 256 MB



 Power Supply and Consumption
 Connector 2-pin 3.5 mm
 Input voltage 9 ~ 36V DC
 Power consumption Idle: 80 mA@12 V




  Data link: 450 mA (peak) @12 V



 Physical Characteristics
 Ingress protection IP30
 Housing & Wight Plastic, 300 g
 Dimensions 118 x 97.5 x 28.5 mm
 Installations Desktop, wall mounting and DIN rail mounting
 Operating temperature -40 ~ +75 °C
 Storage temperature -40 ~ +85 °C
 Relative humidity 5 ~ 95% RH

Description

 Model     PN   Category Frequency Bands Country/
Region		   Certifications

R1500-4L

 B041701



Cat 4



4G: LTE FDD: B1/B3/B5/B7/B8/B20
LTE TDD: B38/B40/B41
3G: WCDMA: B1/B5/B8
2G: GSM: B3/B8

 EMEA       CE
B041703

4G: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28
LTE TDD: B40
3G: WCDMA: B1/B2/B5/B8
2G: GSM: B2/B3/B5/BB

 Oceania RCM
