Industrial Gateway

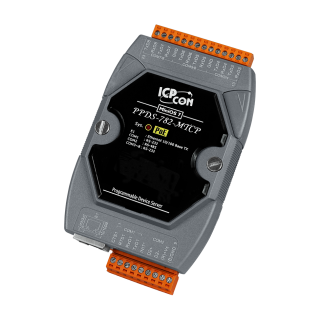

PPDS-782-MTCP

  • Incorporate Serial Devices in an Ethernet network
  • "Virtual COM" Extend COM Ports
  • VxComm Utility supports 32/64-bit Windows 7 SP1/10/2012/2016
  • Supports Modbus TCP to RTU/ASCII Gateway
  • Powerful Programmable Device Server
  • Watchdog Timer suitable for use in harsh environments
  • Serial Port +/-4 kV ESD Protection Circuit
  • Self-Tuner ASIC Controller on the RS-485 Port
  • Built-in High Performance MiniOS7 from ICP DAS
  • Palm-Sized with multiple Serial Ports

Introduction

The PDS-700 series is a family of Programmable Device Servers, also known as "Serial-to-Ethernet gateway", that are designed for linking RS-232/422/485 devices to an Ethernet network. The user-friendly VxComm Driver/Utility allows users to easily turn the built-in COM ports of the PDS-700 series into standard COM ports on a PC. By virtue of its protocol independence, a small-core OS and high flexibility, the PDS-700 series is able to meet the demands of every network-enabled application.

The PDS-700 series includes a powerful and reliable Xserver programming structure that allows you to design your robust Ethernet applications in one day. The built-in, high-performance MiniOS7 boots the PDS-700 up in just one second and gives you fastest responses. It also works as a Modbus TCP to RTU/ASCII gateway that supports most SCADA/HMI communications based on the Modbus/TCP protocol.

The PPDS-700-MTCP series features true IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) using a standard category 5 Ethernet cable to receive power from a PoE switch like the NS-205PSE. The PDSM-700 is the PDS-700 with Metal Case (RoHS) and the PPDSM-700-MTCP is the PPDS-700-MTCP with Metal Case (RoHS). Metal Case version includes stronger protection than PDS-700 and PPDS-700-MTCP.

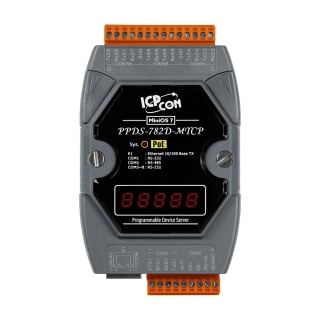

The PDS(M)-782(D) and PPDS-782(D)-MTCP is equipped with 7 RS-232 ports and 1 RS-485 port. The removable on-board terminal block connector is designed for easy and robust wiring in industrial situations.

Application

Factory Automation    Building Automation    Home Automation

Specifications

 CPU Module
 CPU 80186-80 MHz or compatible
 EEPROM 16 KB; Data retention: 40 years; 1,000,000 erase/write cycles.
 Flash 512 KB ; Erase unit is one sector (64 KB) ;
100,000 erase/write cycles
 SRAM 512 KB
 Watchdog Timer Yes



 LED Indicators
 Status 1 x Power/PoE



 COM Ports
 Ports 6 x 3-wire RS-232
1 x 5-wire RS-232
1 x RS-485
 Baud Rate 115200 bps Max.
 Bias Resistor Yes, 1 KΩ
 Parity None, Even, Odd, Mark, Space
None parity is required when using 8 data bits and 2 stop bits on COM1/COM2.
 Data Bit 7, 8: for COM1 and COM2
5, 6, 7, 8: for COM3 ~ COM8
 Stop Bit 1, 2: for COM1 ~ COM8
 Node Address 254 (max.)



 Ethernet
 Ports  10/100 Base-TX, RJ-45 port (Auto-negotiating, auto MDI/MDI-X, LED indicator)



 Power
 Consumption 2.2 W
 Powered from PoE IEEE 802.3af, Class 1
 Powered from Terminal Block +12 ~ 48 VDC



 Mechanical
 Casing Plastic
 Dimensions (mm) 72 mm x 35 mm x 123 mm (W x L x H)
 Installation DIN-Rail or Wall mounting



 Environment
 Operating Temperature -25 ~ +75 °C
 Storage Temperature -40 ~ +80 °C
 Humidity 5 ~ 90% RH, non-condensing



Accessories

CA-0903 CA-0910 NS-205
     CA-0903      CA-0910        NS-205

Description

 PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY
 PPDS-782-MTCP CR  Programmable (7x RS-232 and 1x RS-485) Serial-to-Ethernet Device Server with PoE and Modbus Gateway (RoHS)
Includes CA-0910 Cable
1
