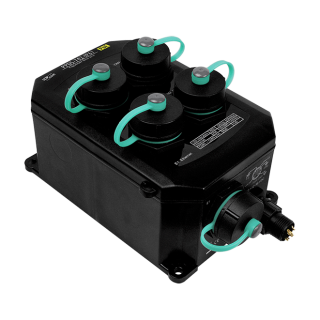

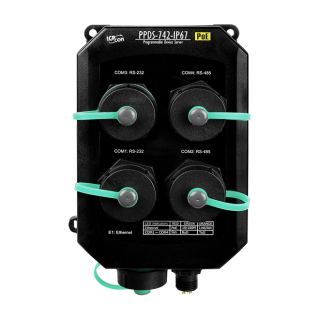

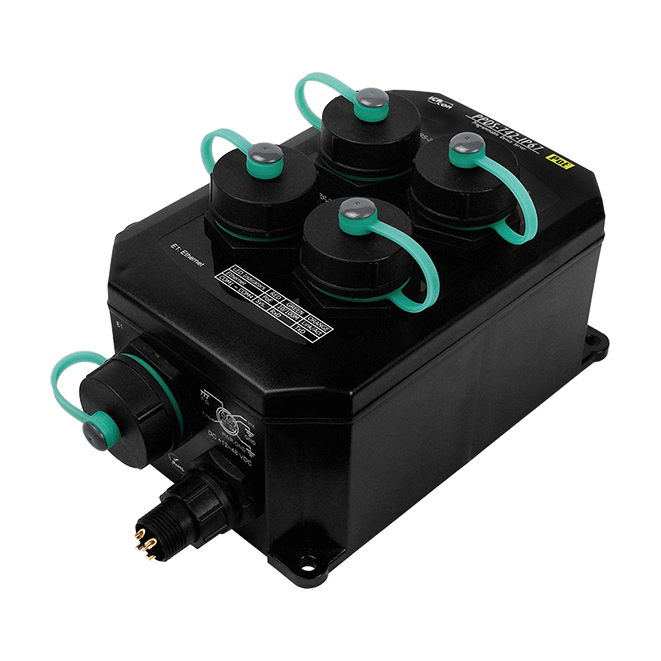

Industrial Gateway

PPDS-742-IP67

  • Incorporate Serial Devices in an Ethernet network
  • Supports Modbus TCP to RTU/ASCII Gateway
  • VxComm Utility supports 32/64-bit Windows 7 SP1/10/2012/2016
  • Powerful Programmable Device Server
  • Watchdog Timer suitable for use in harsh environments
  • Serial Port +/-4 kV ESD Protection Circuit
  • Self-Tuner ASIC Controller on the RS-485 Port
  • Built-in High Performance MiniOS7 from ICP DAS
  • Rugged RJ-45 Connector for anti-vibration and shock
  • Plastic Casing with IP67 Waterproof

Introduction

The PPDS-742-IP67 series is a family of Programmable Device Servers, also known as "Serial-to-Ethernet gateway", that are designed for linking RS-232/485 devices to an Ethernet network. The user-friendly VxComm Utility allows users to easily turn the built-in COM ports of the PPDS-742-IP67 series into standard COM ports on a PC. By virtue of its protocol independence, a small-core OS and high flexibility, the PPDS-742-IP67 series is able to meet the demands of every network-enabled application.

The PPDS-742-IP67 series includes a powerful and reliable Xserver programming structure that allows you to design your robust Ethernet applications in one day. The built-in, high-performance MiniOS7 boots the PPDS-742-IP67 up in just one second and gives you fastest responses.

The PPDS-742-IP67 is a special design for the toughest applications. It can be directly mounted to any machine or convenient flat surface. The rugged packaging and IP67 connectors are rated to protect against water, oil, dust, vibration, and much more.

The PPDS-742-IP67 supports PoE (Power over Ethernet) function that allows power and data to be carried over a single Ethernet cable, so a device can operate solely from the power it receives through the data cable. This innovation allows greater flexibility in office design, higher efficiency in systems design, and faster turnaround time in set-up and implementation. When there is no PoE switch on site, the PPDS-742-IP67 accepts power input from a +12 VDC ~ +48 VDC adapter.

Application

Factory Automation Transportation Automation Chemical Industry Automation Marine Automation

Specifications

 CPU Module
 CPU 80186-80 MHz or compatible
 EEPROM 16 KB; Data retention: 40 years; 1,000,000 erase/write cycles.
 Flash 512 KB ; Erase unit is one sector (64 KB) ;
100,000 erase/write cycles
 SRAM 512 KB
 Watchdog Timer Yes



 LED Indicators
 Status 1 x Power
1 x PoE
2 x Ethernet
8 x Communication



 COM Ports
 Ports 2 x 5-wire RS-232
2 x RS-485
 Baud Rate 115200 bps Max.
 Bias Resistor Yes, 1 KΩ
 Parity None, Even, Odd, Mark, Space
None parity is required when using 8 data bits and 2 stop bits on COM1/COM2.
 Data Bit 7, 8: for COM1 and COM2
5, 6, 7, 8: for COM3 ~ COM4
 Stop Bit 1, 2: for COM1 ~ COM4
 Node Address 254 (max.)



 Ethernet
 Ports  10/100 Base-TX, RJ-45 port (Auto-negotiating, auto MDI/MDI-X, LED indicator)



 Power
 Reverse Polarity Protection Yes
 Consumption 2.2 W
 Powered from PoE IEEE 802.3af, Class 1
 Powered from Terminal Block +12 ~ 48 VDC



 Mechanical
 Casing Plastic
 Dimensions (mm) 88 mm x 82 mm x 149 mm (W x L x H)
 Installation Wall mounting (DIN-Rail mounting for /DIN versions)



 Environment
 Operating Temperature -10 °C ~ +60 °C
 Storage Temperature -10 °C ~ +60 °C
 Humidity 100% RH for operating temperature -10 °C ~ +60 °C



Accessories

4SIO1K0000013 NS-205 NS-205PSE
 4SIO1K0000013    NS-205  NS-205PSE

Description

 PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY
 PPDS-742-       IP67     CR  Programmable (2x RS-232 and 2x RS-485) Serial-to-Ethernet Device Server with PoE and IP67 Casing (RoHS)
Includes 5-pin Waterproof Power Plug (4SIO1K0000013)		 1
