• Runs on browsers, no extra software tool is required.
  • No more programming, Web pages provided for control logic editing.
  • 10.4" TFT LCD (with Touch Panel) & PoE (Power over Ethernet) supported.
  • Support at most "24 ICP DAS Modbus Power Meter modules + 8 Modbus I/O modules" (Max. total of 16 TCP type modules)
    • COM1 and COM2 interface can connect to Max. 16 Modbus RTU modules (include Power Meter & I/O Module) individually.
    • LAN interface can connect to Max. 16 Modbus TCP modules (include Power Meter & I/O Module).
    • Support at most 4 ICP DAS PM-4324 series Power Meters.
  • Display real-time or historical power data by browser or by the onsite displayer. Provide power data statistics report by browser.
  • Provide microSD card for power data log operation. Data log file auto send-back & recovery when disconnected network is resumed.
  • Built-in IF-THEN-ELSE logic engine for power demand management.
  • Provide alarm message notification function via LINE or Email.
  • Adjust device operations by its power status via Modbus I/O modules.
  • Provide Schedule function for operations of I/O modules (devices).
  • Support Modbus TCP/RTU, SNMP, FTP and MQTT protocols.
  • Support Connection with IoT Cloud Platform (Microsoft Azure and IBM Bluemix); and ICP DAS IoTstar Cloud software.

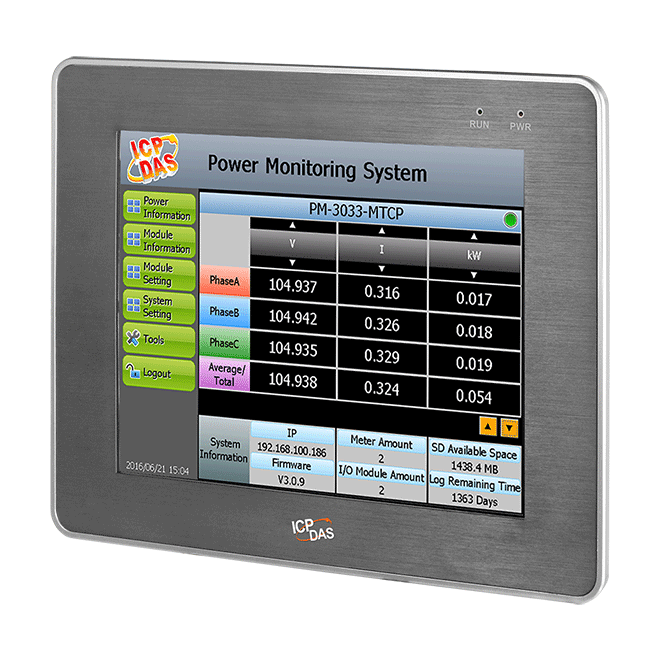

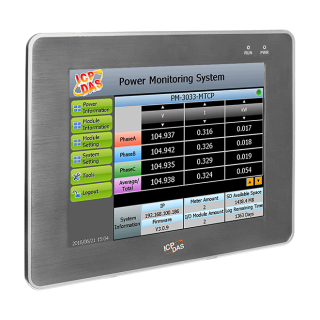

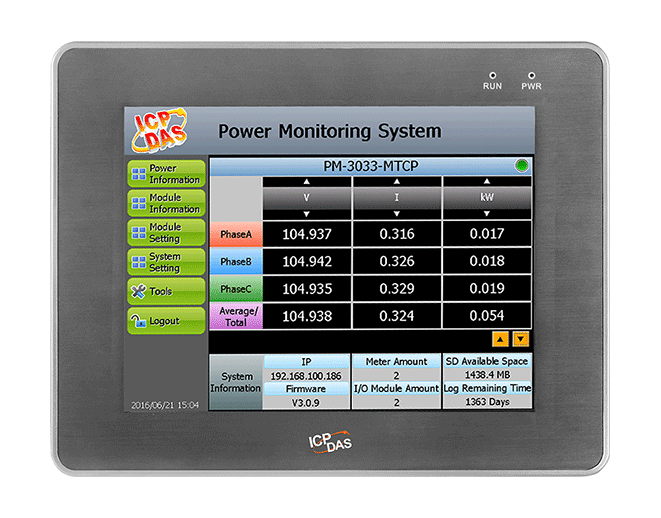

The PMD-4201 is a web-based intelligent Power Meter Concentrator developed by ICP DAS. It offers webpage interface, and features various functions such as: power data collection, logic control, power demand management, data logger, local display/Web page data display and alarm notification functions. PMD-4201 allows connections to ICP DAS Smart Power Meters via RS-485 or Ethernet interface to read the power data of the devices measured by the power meters; and then real-time record the power values in the data logger file. PMD-4201 also provides data logger file auto send-back function; together with PMC Data Server software or SCADA software, it allows collection and analysis of the power data. PMD-4201 is equipped with the 10.4" TFT LCD (with Touch Panel) and designed for panel mount installation. It provides an easy way for viewing the power data and setting the system parameters at the local side. In addition, PMD-4201 also is equipped with built-in Web Server that allows direct connections via browsers to the PMD-4201 for viewing power data and setting up the system parameters. PMD-4201 also supports the Modbus TCP/RTU, SNMP, FTP and MQTT protocols for seamless integration with the back-end SCADA/MES/IT/IoT/Network Management systems. In addition to ICP DAS M-7000 I/O modules, the PMD-4201 could connect to standard Modbus TCP/RTU Slave modules. By working with the I/O modules, and functions such as IF-THEN-ELSE logic rule execution and alarm notification functions including LINE/Email, PMD-4201 offers more thought-out power demand management and alarm notification functions, and is able to perform load shedding of the devices if required, and enables real-time monitoring and control of the power consumption of the devices. When using PMD-4201 to build a power management and monitoring system, during the whole process of system development, no programming is required; it takes a few clicks on web page to complete all settings; it is easy for the user to quickly view the power data of the devices and furthermore process the data for statistics and analysis. The PMD-4201 is an easy-to-use and easy-to-build total solution for power management and monitoring that makes more efficient energy usage.


Energy measurement, monitoring and management


 Protocol • Modbus TCP/RTU for SCADA software
• FTP Client & Server
• SNMP & SNMP Trap
• MQTT Client (Message Publish & Subscribe; non-SSL & SSL)
 Function • Web Interface & Local Display for Configuration
• IF-THEN-ELSE Logic operation (Unlimited rule supported)
• Power meters & I/O modules monitoring and control
• Data Logger operation
• Timer operation (Unlimited set supported)
• Schedule operation (More Powerful; Unlimited set supported)
• Internal Register operation (70 set supported)
• Instant message sending function (LINE Notify)
• non-SSL & SSL Email sending function
• SNTP Time Synchronization
 Power Management • Power Data Display
• Historical Power Data Report
• Power Demand Management
• PUE Setting and Display
 IoT Service Integration • ICP DAS IoTstar IoT Cloud Management Software
• Microsoft Azure IoT Cloud platform
• IBM Bluemix IoT Cloud platform


 CPU Module
 CPU 32-bit ARM CPU (1 GHz)
 Storage Expansion microSD socket with 4 GB microSD card (support up to 32 GB microSDHC card)


 Size 10.4" (4:3)
 Backlight Life 50,000 hrs
 Brightness 400 cd/m2
 Resolution 800 x 600
 Touch Panel 5-wire, resistive type; light transmission: 80 %
 Contrast Ratio 20.834027777778


 LED Indicators
 Status 1 x Power
1 x Running


 I/O Expansion
 I/O Type XV-board
 Remote Module Support M-7000/DL/IR Series Module
Modbus RTU Slave Module
Modbus TCP Slave Module
 Power Meter PM Series Modbus meter


 COM Ports
 Ports COM 1: RS-485 (Data+, Data-); 2500 VDC isolated
COM 2: RS-485 (Data+, Data-); 2500 VDC isolated
COM 3: RS-485 (Data+, Data-, GND); 2500 VDC isolated


 Ports RJ-45 x 1, 10/100/1000 Based-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)


 Input Range 12 ~ 48 VDC
 Consumption 13 W
 Powered from PoE Yes, IEEE 802.3af


 Dimensions (mm) 291 x 229 x 54 (W x H x D)
 Panel Cut-Out (mm) 277 x 215, ±1 (W x H)
 Installation Panel Mounting, VESA (75 x 75) Mounting
 Ingress Protection Rating Front panel: NEMA 4/IP65


 Operating Temperature -10 ~ +60 °C (-13 to 167 ℉)
 Storage Temperature -20 ~ +70 °C (-22 to 176 ℉)
 Humidity 10% ~ 90% RH, Non-condensing



PMD-4201-EN     CR  IIoT Power Meter Concentrator with 10.4" Touch Panel (English) (RoHS) 1
