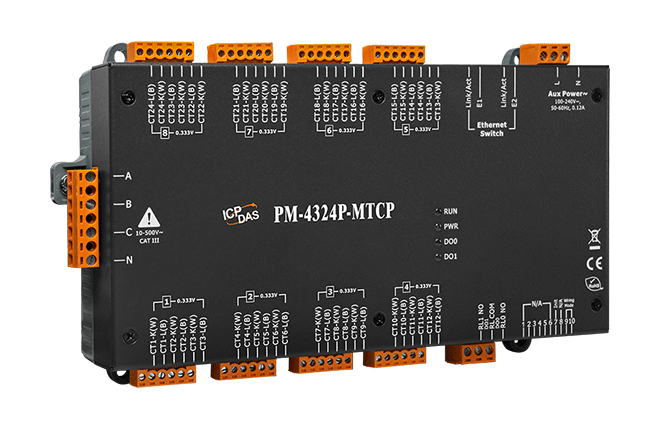

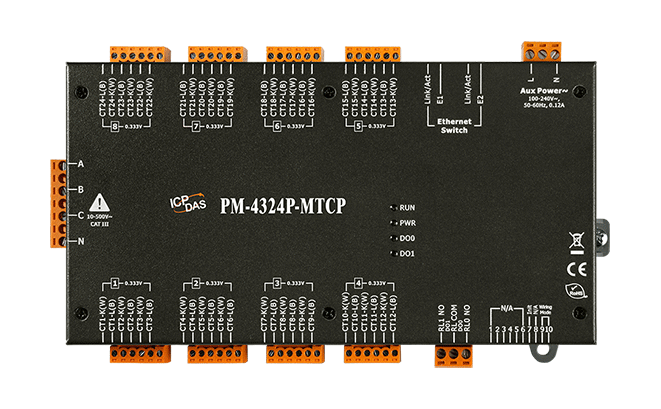

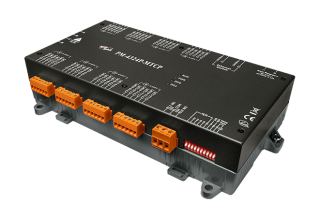

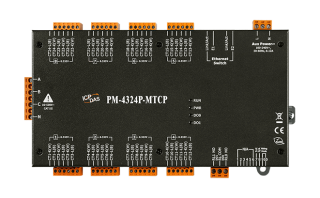

PM-4324P-MTCP

• Bi-directional Energy
• 8 Three Phase Circuits or 24 Single Phase Circuits
• True RMS Power Measurements
• Energy Analysis for 3P4W, 3P3W, 1P3W, 1P2W
• Measure different current ranges with different 333mV CTs
• Voltage Measurements Up to 500 V
• Easy install with split core CT
• W Accuracy Better than 5% (PF=1)
• Total Harmonic Distortion (THD)
• Support Modbus TCP Protocol
• Support 2 Power Relay Output (Form A)

Introduction

The PM-4324P series multi-circuit power meter monitors up to 8 three-phase circuits or 24 single-phase circuits, or any combination of single or three-phase circuits. The PM-4324P series can measure up to 24 currents via external Current Transformers (CTs). This flexibility makes the PM-4324P series perfect for multi-tenant facilities such as residential projects, office buildings and shopping malls. This compact instrument is designed to easily fit into existing panelboards or be flush mounted nearby, thus eliminating the need for expensive retrofit projects or for allocating extra space for the device. You can use CT's that you currently own with PM-4324P (without CTs) Power Meter. The CT inputs of the PM-4324P can be directly input from the secondary side of 333mV CT.

Application

• Generator monitoring
• Switchgear distribution systems
• Energy Management
• Power quality analysis

Specifications

 AC Power Measurement
 Wiring 3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT
 Loops Multi-circuit
 Input Voltage 10 ~ 500 V
 Input Frequency 50/60 Hz
 W Accuracy Better than 5% (PF=1)
 Power Parameter Measurement True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh),Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency
 Data Update Rate 1 Second



 CT
 Includes CTs 0



 Ethernet
 Protocol Modbus TCP



 Power
 Input Range +85 ~ +264 VAC (277 VAC available)
 Consumption 6 W
 Alarm Output Form A (Normal Open) x 2; Relay Contact Voltage Range: 5 A @ 250 VAC (47 ~ 63 Hz), 5 A @ 30 VDC



 Mechanical
 Casing Metal
 Dimensions (mm) 237 x 57 x 134 (W x L x H)
 Installation DIN-Rail & wall mounting



 Environment
 Operating Temperature 20 °C ~ +70 °C
 Storage Temperature -25 °C ~ +80 °C
 Humidity 10 ~ 90% RH, Non-condensing



Accessories

Current Transformer
Current Transformer

Description

 PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY
PM-4324P-MTCP CR                               Modbus TCP, Multi-Circuit Power Meter (Can be directly input from the secondary side of 333mV CT) (RoHS) 1
