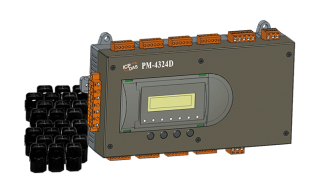

PM-4324D-100P-MTCP

POWER

PM-4324D-100P-MTCP

• Bi-directional Energy
• 8 Three Phase Circuits or 24 Single Phase Circuits
• True RMS Power Measurements
• Energy Analysis for 3P4W, 3P3W, 1P3W, 1P2W
• Current Measurements Up to 60 A with Different CT Ratio
• Voltage Measurements Up to 600 V
• Easy install with split core CT
• W Accuracy Better than 0.5% (PF=1)
• Total Harmonic Distortion (THD)
• LCD Display
• 2/3-wire DS18B20 Wire Connection
• Support Modbus TCP Protocol
• Support 2 Power Relay Output (Form A)

Introduction

The PM-4324D series multi-circuit power meter monitors up to 8 three-phase circuits or 24 single-phase circuits, or any combination of single or three-phase circuits. The PM-4324D series can measure up to 24 currents via external Current Transformers (CTs). This flexibility makes the PM-4324D series perfect for multi-tenant facilities such as residential projects, office buildings and shopping malls. This compact instrument is designed to easily fit into existing panelboards or be flush mounted nearby, thus eliminating the need for expensive retrofit projects or for allocating extra space for the device. The digital temperature sensor function that provides one port for 2- or 3 wire DS18B20 digital temperature sensor input. This meter has LCD display shows power.

Application

• Generator monitoring
• Switchgear distribution systems
• Energy Management
• Power quality analysis

Specifications

 AC Power Measurement
 Wiring 3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT
 Loops Multi-circuit
 Input Voltage 10 ~ 600 V
 Input Current CTØ10 mm (0.05 A ~ 60 A)
 Input Frequency 50/60 Hz
 W Accuracy Better than 0.5% (PF=1)
 Power Parameter  Measurement True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh),Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency
 Data Update Rate 1 Second
 LCD Display Yes



 CT
 Includes CTs 24
 Type Clip
 Max. Current 60 A
 Inside Diameter 10 mm
 Leading Cable 4 mm



 Ethernet
 Protocol Modbus TCP



 Power
 Input Range +85 ~ +264 VAC (277 VAC available)
 Consumption 6 W
 Alarm Output Form A (Normal Open) x 2; Relay Contact Voltage Range: 5 A @ 250 VAC (47 ~ 63 Hz), 5 A @ 30 VDC



 Mechanical
 Casing Metal
 Dimensions (mm) 237 x 57 x 134 (W x L x H)
 Installation DIN-Rail & wall mounting



 Environment
 Operating Temperature 20 °C ~ +70 °C
 Storage Temperature -25 °C ~ +80 °C
 Humidity 10 ~ 90% RH, Non-condensing



Description

 PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY
PM-4324D-100P-MTCP     CR  Modbus TCP, Multi-Circuit Power Meter; includes 60A CT (Inside diameter 10 mm; wire lead 4 m) x 24 (RoHS) 1
