POWER
• True RMS Power Measurements
• Energy Analysis for 1P2W, 1P4W
• Current Measurements Up to 60 A
• Voltage Measurements Up to 300 V
• Clip-on CT for Easy Installation
• W Accuracy Better than 0.5% (PF=1)
• Supports Modbus TCP Protocol
• Supports 2 Power Relay Output (Form A)
• IEC 61010-1 and EN 61010-1

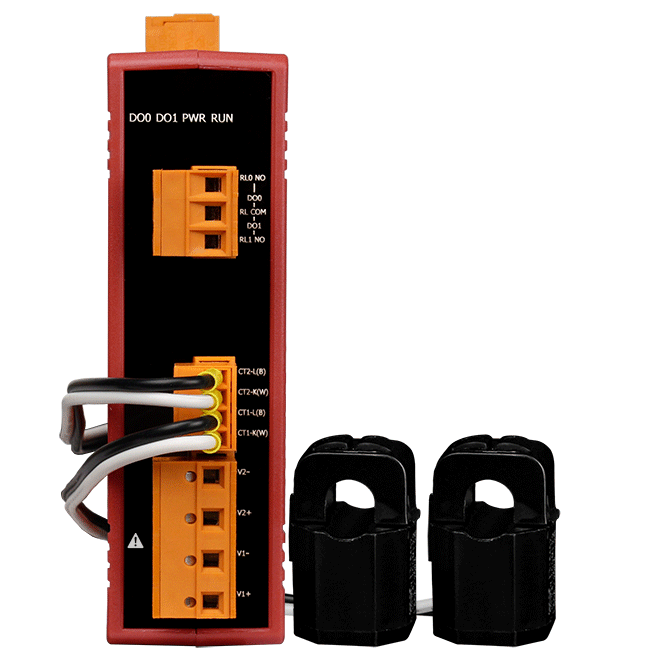

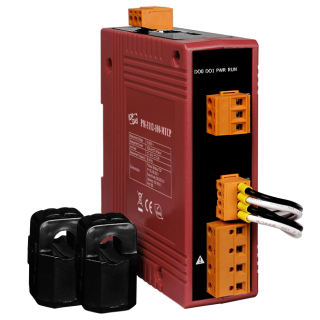

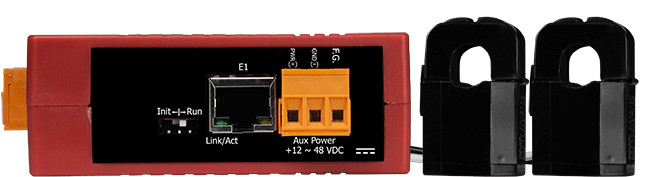

ICP DAS brings the most powerful, cost-effective, advanced Smart Power Meters PM-3000 series that gives you access to real-time electric usage for single-phase power measurement. With its high accuracy (< 0.5%, PF=1 ), the PM-3000 series can be applied to both low voltage primary side and/or medium/high voltage secondary side and enables the users to obtain reliable and accurate energy consumption readings from the monitored equipments in real time under operation. These compact size and cost-effective power meters are equipped with revolutionary wired clip-on CT (various types, support input current up to 200 A). It operates over a wide input voltages range 10 ~ 300 VAC which allows worldwide compatibility. And with 2 channels relay outputs, it can be linked with sirens or lightings for alarm messages. It also supports Modbus RTU, Modbus TCP or CANopen protocols for easy integration.
• Generator monitoring
• Switchgear distribution systems
• Energy Management
• Power quality analysis
AC Power Measurement | |
---|---|
Wiring | 1P2W-2CT |
Loops | Single-phase |
Input Voltage | 10 ~ 300 V |
Input Current | CTØ10 mm (0.05 A ~ 60 A) |
Input Frequency | 50/60 Hz |
W Accuracy | Better than 0.5% (PF=1) |
Power Parameter Measurement | True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency |
Data Update Rate | 1 Second |
CT | |
---|---|
Includes CTs | 2 |
Type | Clip |
Max. Current | 60 A |
Inside Diameter | 10 mm |
Leading Cable | 1.8 m |
Ethernet | |
---|---|
Protocol | Modbus TCP |
Power | |
---|---|
Input Range | +12 ~ 48 VDC |
Consumption | 2W |
Alarm Output | Form A (Normal Open) x 2; Relay Contact Voltage Range: 5 A @ 250 VAC (47 ~ 63Hz), 5 A @ 30 VD |
Mechanical | |
---|---|
Casing | Plastic |
Dimensions (mm) | 33 x 127 x 100 (W x L x H) |
Installation | DIN-Rail Mounting |
Environment | |
---|---|
Operating Temperature | 20 °C ~ +70 °C |
Storage Temperature | -25 °C ~ +80 °C |
Humidity | 10 ~ 90% RH, Non-condensing |
PRODUCT SERIES | DESCRIPTION | QTY | INQUIRY |
---|---|---|---|
PM-3112-100-MTCP CR | Modbus TCP, 2 loops single-phase Power Meter; includes 60A CT (Inside diameter 10 mm; wire lead 1.8 m) x 2 (RoHS) | 1 |
