High Speed Modules

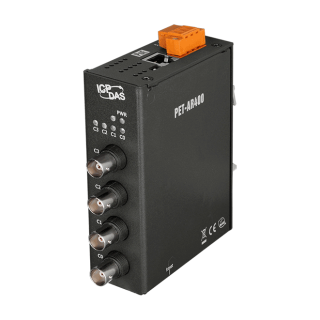

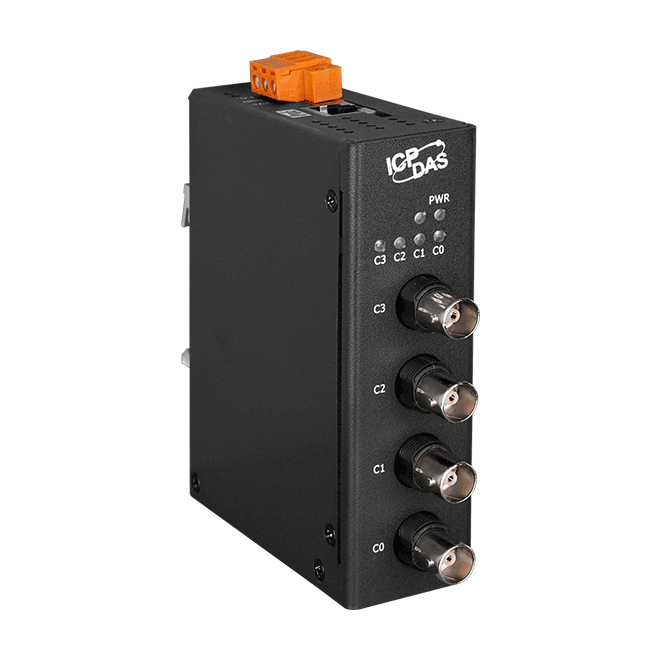

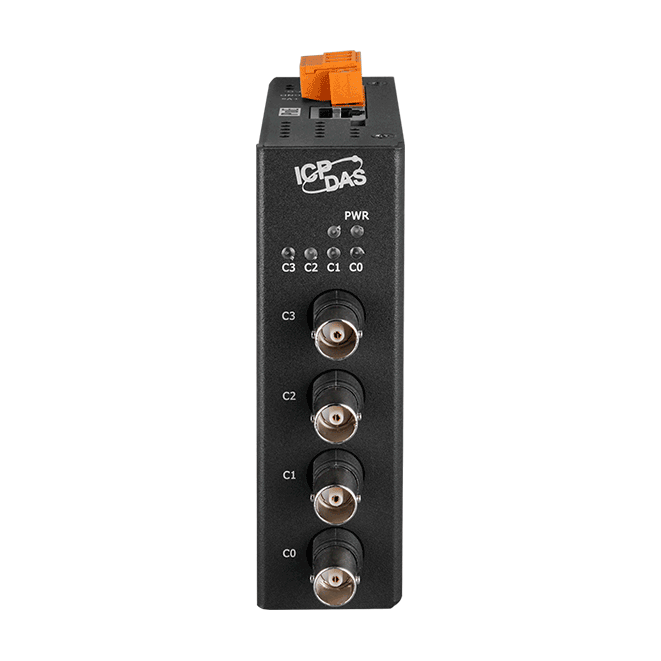

PET-AR400

  • 4 differential IEPE input,Excitation Current 4 mA
  • 24-bit ADC
  • Supports Real Sample and Hold
  • Sample Rate up to 128 kS/s(One Channel)
  • Continuous and N Data Sample Data Transmission Mode
  • A/D Trigger Mode
    1. Software Trigger
    2. Analog Threshold Trigger
  • Software Support
    1. Supported Operating Systems
      Windows 7/8/10 and Linux
    2. Software Compatibility
      1. Microsoft VC, C#, VB.NET SDK API and Demo
      2. NI LabVIEW Toolkit and Demo for Windows
      3. C/C++ library and Demo for Linux
  • Built-In 10/100BASE-T Auto-negotiating, Auto MDI/MDI-X Ethernet Port
  • Option for External Power Supply or POE Supply

Introduction

PET-AR400 is a high speed data acquisition device with a built-in Ethernet communication port for data transfer over a network, and includes 4 high-speed 24-bit differential IEPE input channels (128 kHz sample-and-hold @ one channel).
PET-AR400 also provides 4 kV ESD protection as well as 2500 VDC intra-module isolation. In addition, the 24-bit ADC includes built-in filtering to adjust the appropriate sampling rate and filter out modulator and signal noise. The PET-AR400 is not only suitable for a wide range of mobile/portable measurement applications, but also for precision signal measurement.
The software trigger mode can command the trigger to perform continuous or N data A/D acquisition when needed, on the other hand, when the trigger mode is set to Analog Threshold Trigger mode, the A/D will start collecting N data when the analog input value is above or below a certain voltage.

Application

 Vibration measurement and analysis application

 Machine condition monitoring

 Predictive maintenance



Specifications

 Software
 OS Windows 7/8/10 and Linux
 Protocol TCP Streaming (Access data by SDK library)
Modbus TCP
 Utility Configuration, graphically display and data logging
 SDK Windows
。Microsoft VC, C#, VB.NET SDK API and Demo
。Python Demo
。NI LabVIEW Toolkit and Demo
Linux
。C/C++ library and Demo
。.NET library and Demo
。Python Demo



 EMS Protection
 EFT (IEC 61000-4-4) 1 kV for Power
 ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
±8 kV Air for Random Point



 LED Indicators
 Status 1 x Power, 4 x Connection



 Analog Input
 Channels 4 Differential (Simultaneously)
 Type IEPE
 Connector BNC (Female)
 Range ±10 V
 Input Common Mode Range ±10 V
 Input Coupling AC Coupling/DC Coupling (Jumper Select)
 Resolution 24-bit
 Accuracy ±0.02 % FSR @ ±10 V
 Sampling Rate 32k Hz @ 3/4 channels
64k Hz @ 2 channels
128k Hz @ 1 channel
 Bandwidth 12.8k Hz (-0.1 db) @ 1/2 channel(s)
64.8k Hz (-0.1 db) @ 3/4 chhanels
 Cut-off Frequency 0.16 Hz
 Input Impedance Voltage: 2 MΩ
 Excitation Current 4 mA (Jumper Select) (IEPE compliance: 24 V)
 FIFO Size 1 k bytes, 256 Samples
 Trigger Mode Software, Analog Threshold Trigger



 Ethernet
Ports 1 x RJ-45, 10/100 Base-TX
PoE IEEE 802.3af, Class 2
Security ID, Password and IP Filter
Protocol Modbus TCP Slave, Private TCP Raw Data



 Power
 Reverse Polarity Protection Yes
 Consumption 4.5 W
Powered from Terminal Block +12 ~ 48 VDC



 Mechanical
 Casing Metal
 Dimensions (mm) 116 x 33 x 120 (W x L x H)
 Installation DIN-Rail Mounting



 Environment
 Operating Temperature -25 ~ +75 °C
 Storage Temperature -30 ~ +80 °C
 Humidity 10 ~ 90% RH, Non-condensing



Accessories

MDR-20-24 NS-205 NS-205PSE NS-205PSE-24V iSN-701-F15-L030 iSN-701-F15-L060
MRD-20-24 NS-205 NS-205PSE NS-205PSE-24V iSN-701-F15-L030 iSN-701-F15-L060

Description

 PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY
 PET-AR400 CR PoE Ethernet High Speed Data Acquisition Module, 4-ch Accelerometer (IEPE) Inputs (RoHS) 1
