IOT RTU & Modem

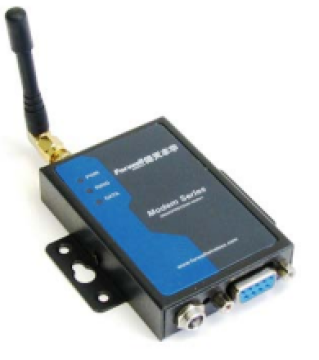

M12 GPRS

 Industrial design with intelligent software capabilities, reliable cellular
solution for data collection and transmission
 Plug-and-play design with easy-to-use software interface for easy
integration
 Easily manage and control distributed remote devices over the air
 Built-in Watch Dog
 Remote Data Monitor and Control
 Reliable GSM/GPRS network connectivity, providing fast and cost-effective
long-range wireless communication
 Voice ,GPRS ,SMS supported

Introduction

The M12 GPRS Modem allows products to immediately
offer the full benefits of GPRS technology, such as
permanent online connections plus cost-efficient, highspeed data transmission. The M12 GPRS Modem can
be used with a wide range of applications.
Accelerate development and implementation by simply
plugging the M12 GPRS Modem into your products. It is
backwards compatible with the M12 GPRS Modem and
offers additional features.
The ultra compact dual-band M12 GPRS Modem has all
the right industry standard interfaces for GPRS Class10 data/voice/SMS and fax applications.

Application

 Remote Data Monitor and Control
 Water, gas and oil flow metering
 AMR (automatic meter reading)
 Power station monitoring and control
 Remote POS (point of sale) terminals
 Traffic signals monitor and control
 Fleet management
 Power distribution network supervision
 Central heating system supervision
 Weather station data transmission
 Hydrologic data acquisition
 Vending machine
 Traffic info guidance
 Parking meter and Taxi Monitor
 Telecom equipment supervision (Mobile base station, microwave or optical
relay station)

Specifications

 Wireless

 Mobile Networks

M12H111

GPRS phase2/2+,EGSM 900MHz/DCS 1800MHz GSM 850MHz/PCS
1900MHz
M12Z111
GSM 850MHz/EGSM 900MHz/DCS 1800MHz/PCS 1900MHz
M12Z1411/ M12AZ1411
EGSM 900MHz/DCS 1800MHz
M12Z1511/M12AZ1511
GSM 850MHz/EGSM 900MHz/DCS 1800MHz/PCS 1900MHz
M12AC111
GSM 850MHz/EGSM 900MHz/DCS 1800MHz/PCS 1900MHz
M12S211
GPRS phase2/2+,GSM 900MHz/GPRS 1800MHz
M12O111
GSM/GPRS EGSM 900MHz/DCS 1800MHz/PCS 1900 MHz



 Data

 GPRS

Downlink up to 85.6kbps
Uplink up to 21.4kbps

 GSM

GSM phase 2/2+

 CSD

Downlink/Uplink up to 14.4kbps



 Interface

 Antenna

50Ω SMA female interface

 Serial port

DB9(RS232)

 Led

Power
Ring
Data

 UIM/SIM

1.8V/3V



 Power
 Power supply DC7V-28V , typical DC12V1A
 Power consumption Peak:＜0.6A@+12VDC
Average：28mA@+12VDC
Idle：3.5mA@+12VDC



 Software

 User interface

AT command set



 Physical

 Operating Temperature

M12S211,M12O111
Work temperature：-20℃～55℃
Storage temperature：-25℃～70℃
M12Z111
Work temperature：-30℃～80℃
Storage temperature：-40℃～85℃
M12Z1411
Work temperature：-30℃～80℃
Storage temperature：-40℃～85℃
M12AZ1411
Work temperature：-30℃～80℃
Storage temperature：-40℃～85℃
M12AZ1511
Work temperature：-30℃～80℃
Storage temperature：-40℃～85℃
M12AZ1511
Work temperature：-30℃～80℃
Storage temperature：-40℃～85℃
M12AC111
Work temperature：-30℃～80℃
Storage temperature：-40℃～85℃
M12H111
Work temperature：-30℃～75℃

 Humidity

95% Maximum (Non-condensing)

 Dimensions

Item (L x B x H): 75mm x 50mm x 16mm (5.3″ x 3.7″ x 1.4″)
Packaging (L x B x H): 260mm x 190mm x 65mm (10.3″ x 7.5″ x 2.6″)

 Weight

tem: 200g
Packaging: 2.0 lbs

 Electromagnetic Compatibility

Anlistatig test：Class 3
Radio electromagnetism test：Class 3



  Others

 Warranty

1 Year

 Package Contents

The M12 Series Modem
DB9 Serial Cable
DC 9V1A Power Adapter
Antenna
CD-ROM with Product Documentation
