Data Acquisition

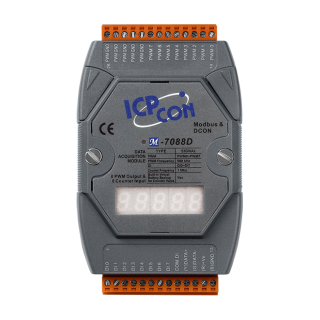

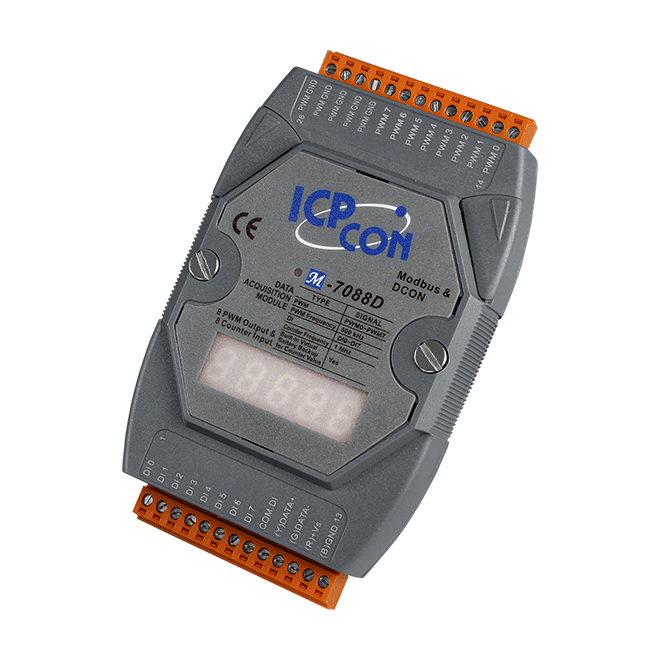

M-7088D-G

  • 8 PWM Outputs and 8 Counter Inputs
  • Burst Mode and Continuous Mode for PWM Output
  • Software and Hardware Trigger Mode for PWM Output
  • Individual and Synchronous PWM Output
  • High-speed Counters
  • Built-in Dual Watchdog

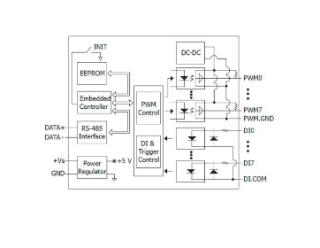

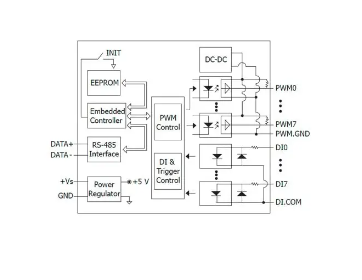

Introduction

The M-7088/M-7088D provides 8-channel PWM (Pulse Width Modulation) output and 8-channel Counter input and can be used to develop powerful and cost-effective analog control systems. PWM is a powerful technique for controlling analog circuits that uses the digital output to generate a waveform with a variable duty cycle and frequency which can then be used to control an analog circuit in applications such as controlling the position or speed of motors, the brightness of lamps, or the speed of fans, etc.

Either burst mode or continuous mode can be used for the PWM output depending on the application. In addition,All digital input channels are also able to be used as high-speed counters with a speed of up to 1 MHz. The M-7088(D) supports both the Modbus RTU and the DCON protocols, which can be configured via software, and all hardware specifications are the same as the I-7088(D). The M-7088(D)/S allows the load voltage to be increased from +3.5 to +50 V for the 8-channels PWM (Pulse Width Modulation) output and the 8-channel high-speed counter.

Application

• Controlling Motor Position/Speed
• Dimming Lamp Brightness
• Controlling Fan Speed

Specifications

 CPU Module
 Watchdog Timer Module, Communication (Programmable)



 Display
 Type 5-Digit 7 Segment LED Display



 Memory
Battery Backup Yes



 Isolation
 Intra-module Isolation 2500 VDC



 EMS Protection
 EFT (IEC 61000-4-4) ±4 kV for Power Line
 ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal



 LED Indicators
 Status 1 x Power and Communication



 PWM
Channels 8
Type TTL
Sink/Source (NPN/PNP) Sink, Source
Load Voltage +5 VDC
Load Current Sink: 10 mA @ 5V /Channel
Source: 1 mA @ 5V /Channel
Frequency 1 Hz ~ 500 KHz
Duty Cycle 0.1 to 99.9 %
Mode Burst, Continuous
Burst Count 1 to 65535
Trigger Start Hardware or Software



 Counter/Frequency/Encoder Input
Channels 8
Type Counter
Counter Mode Up
Counter/Encoder Bits 32-bit
Sink/Source (NPN/PNP) Sink
ON Voltage Level +3.5 ~ +5 VDC
OFF Voltage Level +1 VDC Max.
Max. Speed 1 MHz





 COM Ports
 Ports 1 x RS-485
 Baud Rate 1200 ~ 115200 bps
 Data Format (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1)
 Protocol Modbus RTU, DCON



 Power
 Reverse Polarity Protection Yes
 Input Range +10 ~ +30 VDC
 Consumption 3.4 W



 Mechanical
 Dimensions (mm) 72 x 123 x 35 (W x L x H)
 Installation DIN-Rail Mounting



 Environment
 Operating Temperature -25 ~ +75 °C
 Storage Temperature -40 ~ +85 °C
 Humidity 10 ~ 95% RH, Non-condensing



Accessories



 DN-8P8C-CA           Power Supply

Description

 PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY
 M-7088D-G     CR  8-ch PWM Output and 8-ch High-speed Counter Input Module (5 VDC) with LED Display, using DCON and Modbus Protocols (Gray Cover) (RoHS) 1
