M-7064D-G

  • 8 Form A Signal Relay Outputs
  • Configurable Power-on Value and Safe Value Settings
  • Built-in Dual Watchdog

Introduction

The M-7064/M-7064D provides 8 Form A signal relay output channels. The M-7064D includes 8 LED indicators for channel status monitoring. The M-7064(D) supports Modbus RTU and DCON protocols, which can be configured via software. There are also options for configuring power-on and safe values. 8 kV ESD, 4 kV EFT and 3 kV surge protection are also provided to enhance noise protection capabilities in industrial environments, making The M-7064(D) an ideal solution for small signal-switching applications.

Application

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Specifications

 CPU Module
 Watchdog Timer Module, Communication (Programmable)



 Display
 Type I/O LED Indicator



 Isolation
 Intra-module Isolation 2000 VDC



 EMS Protection
 EFT (IEC 61000-4-4) ±4 kV for Power Line
 ESD (IEC 61000-4-2) ±8 kV Contact for Each Terminal
±16 kV Air for Random Point
 Surge (IEC 61000-4-5) ±3 kV for Power Line



 LED Indicators
 Status 1 x Power and Communication
8 x Relay Output



 Relay Output
 Channels 8 (Form A)
 Type Signal Relay
 Contact Material Silver Nickel, Gold-covered
 Contact Rating 2 A @ 30 VDC
0.24 A @ 220 VDC
0.25 A @ 250 VAC
 Operate Time 3 ms (typical)
 Release Time 4 ms (typical)
 Electrical Endurance 2 x 10^5 ops.
 Mechanical Endurance 1 x 10^8 ops.
 Power on Value Programmable
 Safe Value Programmable



 COM Ports
 Ports 1 x RS-485
 Baud Rate 1200 ~ 115200 bps
 Data Format (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1)
 Protocol Modbus RTU, DCON



 Power
 Reverse Polarity Protection Yes
 Input Range +10 ~ +30 VDC
 Consumption 1.6 W Max.



 Mechanical
 Dimensions (mm) 72 x 123 x 35 (W x L x H)
 Installation DIN-Rail Mounting



 Environment
 Operating Temperature -25 ~ +75 °C
 Storage Temperature -40 ~ +85 °C
 Humidity 10 ~ 95% RH, Non-condensing



Description

 PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY

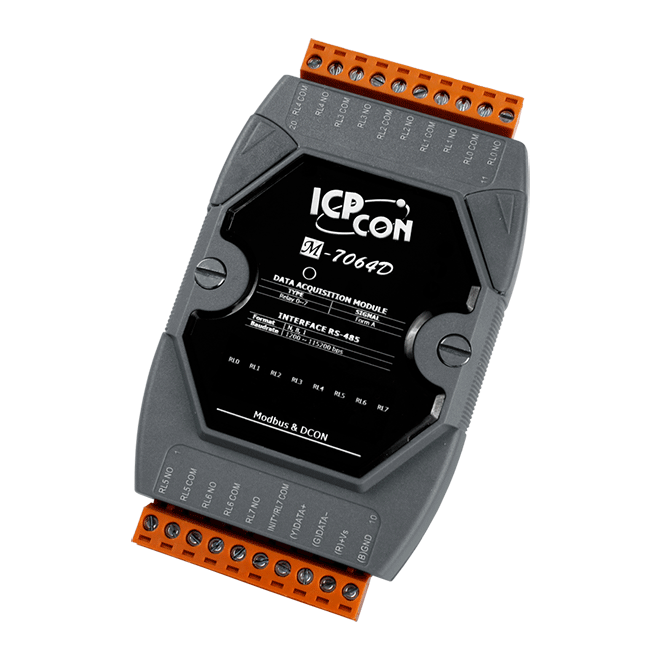

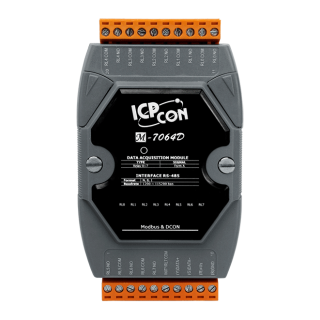

 M-7064D-G     CR  8-ch Signal Relay Module with LED Display, using DCON and Modbus Protocols (Gray Cover) (RoHS) 1
