Data Acquisition

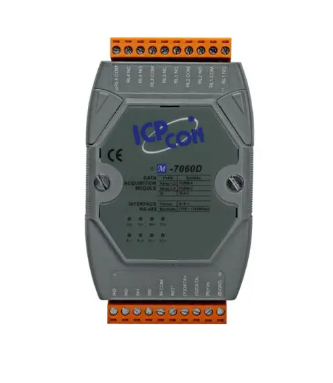

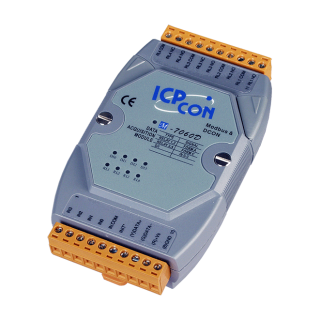

M-7060D-G

  • 4 Sink- or Source-type Digital Inputs
  • 2 Form A and 2 Form C Signal Relay Outputs
  • Digital Input Channels Can be Used as 16-bit Counters
  • Configurable Power-on Value and Safe Value Settings
  • Built-in Dual Watchdog

Introduction

The M-7060/M-7060D provides 4 digital input channels, 2 Form A and 2 Form C signal relay output channels, while The M-7060P/M-7060PD provides 4 digital input channels, 2 Form A and 2 Form C power relay output channels. All digital input channels are also able to be used as 16-bit counters. In addition, the digital input channels can be selected either as sink- or source-type via wire connections. The M-7060D/PD provides eight LED indicators for channel status monitoring.

The M-7060(D)/M-7060P(D) supports Modbus RTU and DCON protocols, which can be configured via software. There are also options for configuring power-on and safe values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided to enhance noise protection capabilities in industrial environments. The M-7060(D) is the ideal solution for small signal-switching applications, while The M-7060P(D) is the perfect solution for high-power applications.

Application

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

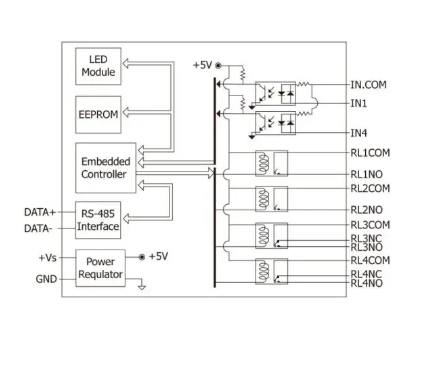

Specifications

 CPU Module
 Watchdog Timer Module, Communication (Programmable)



 Display
 Type I/O LED Indicator



 Isolation
 Intra-module Isolation 3750 VDC



 EMS Protection
 EFT (IEC 61000-4-4) ±2 kV for Power Line
 ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
±8 kV Air for Random Point



 LED Indicators
 Status 1 x Power and Communication
8 x Digital Input/Relay Output



 Digital Input/Counter
 Channels 4
 Type Wet Contact
 Sink/Source (NPN/PNP) Sink/Source
 ON Voltage Level +1 VDC Max.
 OFF Voltage Level +4 ~ +30 VDC
 Max. Counts 65535 (16-bit)
 Frequency 100 Hz
 Min. Pulse Width 5 ms
 Input Impedance 3 kΩ
 Overvoltage Protection ±35 VDC



 Relay Output
 Channels 4 (2 x Form A, 2 x Form C)
 Type Signal Relay
 Contact Material Gold-plated silver
 Contact Rating Form A:
0.6 A @ 125 VAC
2 A @ 30 VDC
Form C:
0.6 A @ 125 VAC
2 A @ 30 VDC
 Operate Time 3 ms
 Release Time 2 ms
 Electrical Endurance 5 x 10^5 ops.
 Mechanical Endurance 1 x 10^8 ops.
 Power on Value Programmable
 Safe Value Programmable



 COM Ports
 Ports 1 x RS-485
 Baud Rate 1200 ~ 115200 bps
 Data Format (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1)
 Protocol Modbus RTU, DCON



 Power
 Reverse Polarity Protection Yes
 Input Range +10 ~ +30 VDC
 Consumption 1.4 W



 Mechanical
 Dimensions (mm) 72 x 123 x 35 (W x L x H)
 Installation DIN-Rail Mounting



 Environment
 Operating Temperature -25 ~ +75 °C
 Storage Temperature -40 ~ +85 °C
 Humidity 10 ~ 95% RH, Non-condensing



Description

 PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY
 M-7060D-G     CR  4-ch Isolated (Wet, 4~30 VDC) DI and 4-ch Signal Relay Module with LED Display, using DCON and Modbus Protocols (Gray Cover) (RoHS) 1
