Data Acquisition

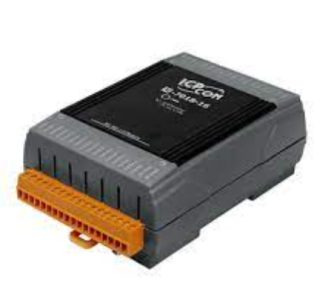

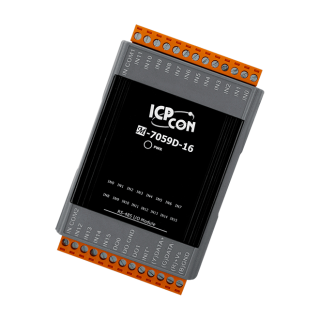

M-7059D-16-G

  • Supports AC/DC Digital Input
  • 16 Digital Inputs and 2 Digital Outputs
  • Digital Input Channels Can be Used as 16-bit Counters
  • Channel-to-Channel Isolation
  • Built-in Dual Watchdog

Introduction

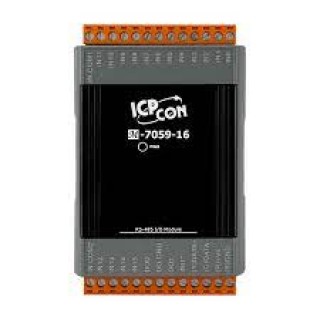

The M-7059-16/M-7059D-16 provides 16 channels for AC/DC digital input, each of which features channel-to-channel photocoupler isolation, and two channels for digital output. All digital input channels are also able to be used as 16-bit counters. The M-7059D-16 has 16 LED indicators for channel status monitoring. The M-7059(D)-16 provides ±4 kV ESD, ±4 kV EFT, and ±2 kV Surge protection, as well as 3750 VDC intra-module isolation to enhance noise protection capabilities in harsh industrial environments.

Application

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Specifications

 CPU Module
 Watchdog Timer Module, Communication (Programmable)



 Isolation
 Intra-module Isolation 3750 VDC



 EMS Protection
 EFT (IEC 61000-4-4) ±4 kV for Power Line
 ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
±8 kV Air for Random Point
 Surge (IEC 61000-4-5) ±2 kV for Power Line



 LED Indicators
 Status 1 x Power and Communication
16 x Digital Input



 Digital Input/Counter
 Channels 16
 Type Wet Contact
 Sink/Source (NPN/PNP) Sink/Source
 ON Voltage Level 10 ~ 80 VAC
±15 ~ ±80 VDC
 OFF Voltage Level 3 VAC Max.
±3 VDC Max.
 Max. Counts 65535 (16-bit)
 Frequency 100 Hz
 Min. Pulse Width 5 ms
 Input Impedance 30 kΩ
 Overvoltage Protection 120 VAC/VDC Max.




 Digital Output
 Channels 2
 Type Isolated Open Collector
 Sink/Source (NPN/PNP) Sink
 Load Voltage +5 ~ +50 VDC
 Load Current 600 mA/Channel
 Overvoltage Protection 60 VDC
 Overload Protection 1.4 A
 Short-circuit Protection Yes
 Power on Value Programmable
 Safe Value Programmable



 COM Ports
 Ports 1 x RS-485
 Baud Rate 1200 ~ 115200 bps
 Data Format (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1)
 Protocol Modbus RTU, DCON



 Power
 Reverse Polarity Protection Yes
 Input Range +10 ~ +30 VDC
 Consumption 0.4 W



 Mechanical
 Dimensions (mm) 76 x 121 x 42 (W x L x H)
 Installation DIN-Rail Mounting



 Environment
 Operating Temperature -25 ~ +75 °C
 Storage Temperature -40 ~ +85 °C
 Humidity 10 ~ 95% RH, Non-condensing



Accessories

  Relay Module

Description

 PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY
 M-7059D-16-   G     CR  16-ch Isolated (Wet, 10~80 VAC/±15~±80VDC) DI and 2-ch (Sink, NPN) DO Module with LED Display, using DCON and Modbus Protocols (Gray Cover) (RoHS) 1
