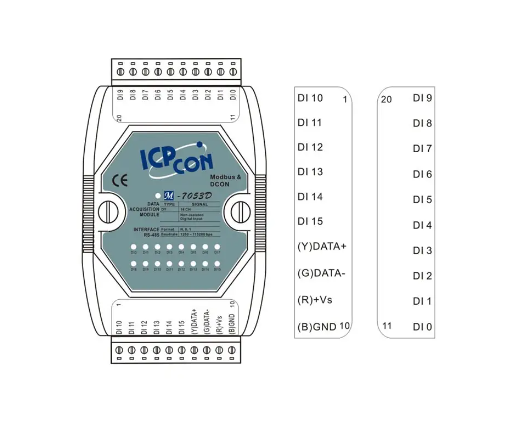

M-7053D-G

  • 16 Source-type Digital Inputs
  • Long Effective Distance
  • All Channels Can be Used as 16-bit Counters
  • Built-in Dual Watchdog

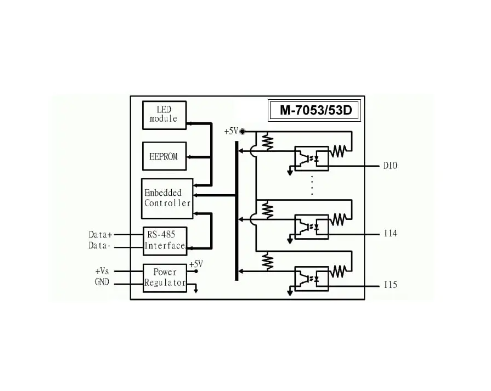

Introduction

The M-7053/M-7053D features a long effective distance measurement for dry contact digital input of up to 500 meters. The module supports source-type input. All 16 channels are also able to be used as 16-bit counters, each of which is non-isolated. The M-7053D has 16 LED indicators for channel status monitoring. The M-7053(D) supports Modbus RTU and DCON protocols, which can be configured via software, and all hardware specifications are the same as the I-7053(D)_FG.

Application

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Specifications

 CPU Module
 Watchdog Timer Module, Communication (Programmable)



 Display
 Type I/O LED Indicator



 LED Indicators
 Status 1 x Power and Communication
16 x Digital Output



 Digital Input/Counter
Channels 16
Type Dry Contact
Sink/Source (NPN/PNP) Source
ON Voltage Level Open
OFF Voltage Level Close to GND
Max. Counts 65535 (16-bit)
Frequency 100 Hz
Min. Pulse Width 5 ms
Effective Distance 500 m Max.



 COM Ports
 Ports 1 x RS-485
 Baud Rate 1200 ~ 115200 bps
 Data Format (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1)
 Protocol Modbus RTU, DCON



 Power
 Reverse Polarity Protection Yes
 Input Range +10 ~ +30 VDC
 Consumption 0.9 W



 Mechanical
 Dimensions (mm) 72 x 123 x 35 (W x L x H)
 Installation DIN-Rail Mounting



 Environment
 Operating Temperature -25 ~ +75 °C
 Storage Temperature -40 ~ +85 °C
 Humidity 10 ~ 95% RH, Non-condensing



Description

 PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY
 M-7053D-G     CR  16-ch Non-isolated (Dry) DI Module with LED Display, using DCON and Modbus Protocols (Gray Cover) (RoHS) 1
