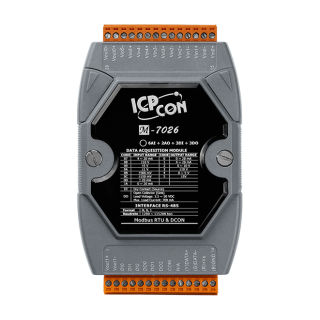

M-7026-G

  • Multifunction (6 AI, 2 AO, 3 DI, and 3 DO)
  • Jumper Selectable Voltage or Current Input/Output
  • High Over-voltage Input Protection
  • High Common Voltage Protection
  • Adjustable Sampling Rate (Fast/Normal Mode)
  • Individual Channel Configuration
  • Open Wire Detection for Current Output
  • Overload and Short Circuit Protection for Digital Output
  • Configurable Power-on Value and Safe Value Settings
  • Built-in Dual Watchdog

Introduction

The M-7026 is a multi-function module that includes 6 analog input channels, 2 analog output channels, 3 digital input channels, and 3 digital output channels. It provides a programmable input range on all analog input channels (±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V, ±20 mA, 0 ~ +20 mA, or 4 ~ 20 mA), analog outputs are 12-bit at 0 ~ 5 V, ±5 V, 0 ~ 10 V, ±10 V, 0 ~ +20 mA, or +4 ~ +20 mA and all digital outputs can be set as an alarm output. Each analog input can be configured for an individual range and provides high overvoltage protection of 240 Vrms. Voltage and current inputs/outputs are jumper selectable.

Application

   • Building Automation
   • Industrial Automation
   • Industrial Machinery
   • Food and Beverage Systems
   • Semiconductor Fabrication
   • Control Systems

Specifications

 CPU Module
 Watchdog Timer Module, Communication (Programmable)



 Isolation
 Intra-module Isolation 2500 VDC



 EMS Protection
 EFT (IEC 61000-4-4) ±4 kV for Power Line
 ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
±8 kV Air for Random Point
 Surge (IEC 61000-4-5) ±3 kV for Power Line



 LED Indicators
 Status 1 x Power and Communication



 Analog Input
 Channels 6 Differential
 Type Voltage
Current
 Range Voltage: ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V
Current: ±20 mA , 0 ~ 20 mA, 4 ~ 20 mA (Jumper Selectable)
 Resolution 16-bit
 Accuracy Normal Mode: ±0.1% of FSR
Fast Mode: ±0.5% or better
 Sampling Rate Normal Mode: 10 Hz (total channels)
Fast Mode: 60 Hz (total channels)
 Input Impedance Voltage: 2 MΩ
Currnet: 140 Ω
 Common Voltage Protection ±200 VDC
 Overvoltage Protection 240 Vrms
 Overcurrent Protection 50 mA at 110 VDC
 Individual Channel Configuration Yes
 Channel-to-Channel Isolation 400 VDC
 Open Wire Detection For 4 ~ 20 mA Only



 Analog Output
 Channels 2
 Type Voltage
Current
 Range Voltage: +0 ~ +5 VDC, +0 ~ +10 VDC, ±5 VDC, ±10 VDC
Current: +0 ~ +20 mA, +4 ~ +20 mA (Jumper Selectable)
 Resolution 12-bit
 Accuracy ±0.1% of FSR
 Open Wire Detection For 4 ~ 20 mA Only
 Voltage Output Capability 10 V @ 20 mA
 Power-on Value Programmable
 Safe Value Programmable



 Digital Input/Counter
Channels 3
Type Dry Contact
Sink/Source (NPN/PNP) Source
ON Voltage Level Close to GND
OFF Voltage Level Open
Max. Counts 65535 (16-bit)
Frequency 50 Hz
Min. Pulse Width 5 ms



 Digital Output
Channels 3
Type Open Collector
Sink/Source (NPN/PNP) Sink
Load Voltage +3.5 ~ +50 VDC
Load Current 700 mA/Channel
Overvoltage Protection 60 VDC
Overload Protection 1.4 A
Short-circuit Protection Yes
Power on Value Programmable
Safe Value Programmable



 COM Ports
 Ports 1 x RS-485
 Baud Rate 1200 ~ 115200 bps
 Data Format (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1)
 Protocol Modbus RTU, DCON



 Power
 Reverse Polarity Protection Yes
 Input Range +10 ~ +30 VDC
 Consumption 1.0 W



 Mechanical
 Dimensions (mm) 72 x 123 x 35 (W x L x H)
 Installation DIN-Rail Mounting



 Environment
 Operating Temperature -25 ~ +75 °C
 Storage Temperature -40 ~ +85 °C
 Humidity 10 ~ 95% RH, Non-condensing



Accessories



 Relay Module

Description

 PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY
 M-7026-G CR  6-ch AI, 2-ch AO, 3-ch DI and 3-ch DO Module using DCON and Modbus Protocols (Gray Cover) (RoHS) 1
