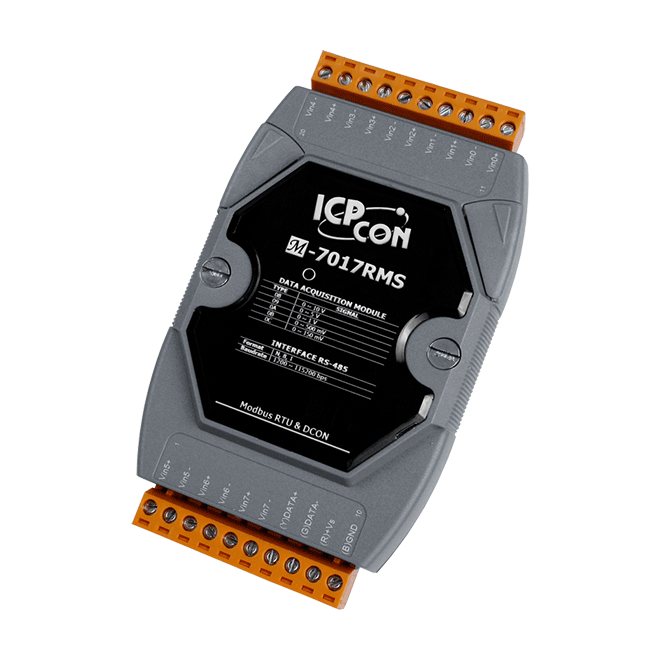

M-7017RMS-G

  • 8 True RMS Inputs
  • ±0.15% Factory Calibrated Accuracy
  • The RMS Input Range Can be from +150m Vrms to +10 Vrms
  • Designed for Standard Operating Frequencies of 45 Hz to 10 KHz
  • Individual Channel Configurable

Introduction

The M-7017RMS is an 8-channel differential AC input module that is used to convert the AC input signals to their True RMS DC values. The RMS input range can be from +150 mVrms to +10 Vrms, and each channel can be configured individually. The M-7017RMS is a complete, high-accuracy, RMS-to-DC converter that computes the True RMS DC value of any complex waveform. It also features 4 kV ESD protection, 2500 VDC intra-module isolation and ±35 VDC overvoltage protection.

Application

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Specifications

 CPU Module
 Watchdog Timer Module, Communication (Programmable)



 Isolation
 Intra-module Isolation 2500 VDC



 EMS Protection
 EFT (IEC 61000-4-4) ±4 kV for Power Line
 ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
±8 kV Air for Random Point
 Surge (IEC 61000-4-5) ±0.5 kV for Power Line



 LED Indicators
 Status 1 x Power and Communication



 Analog Input
 Channels 8 Differential
 Type True RMS
 Range 0 ~ +10 Vrms, 0 ~ +5 Vrms, 0 ~ +1 Vrms,
0 ~ +500 mVrms, 0 ~ +150 mVrms
 Resolution 16-bit
 Accuracy • Sinusoid:
50/60 Hz: ±0.15% of FSR
45 Hz to 10 kHz: ±0.5% of FSR

• Non-Sinusoid:
Crest Factor = 1 to 2: ±0.2% of FSR
Crest Factor = 2 to 3: ±0.35% of FSR

• DC:
0 ~ +10 V/0 ~ +5 V/0 ~ +1 V: ±0.3% of FSR
0 ~ +500 mV, 0 ~ +150 mV: ±0.7% of FSR
 Sampling Rate 10 Hz (Total)
 Input Impedance >2 MΩ
 Overvoltage Protection ±35 VDC
 Individual Channel Configuration Yes



 COM Ports
 Ports 1 x RS-485
 Baud Rate 1200 ~ 115200 bps
 Data Format (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1)
 Protocol Modbus RTU, DCON



 Power
 Reverse Polarity Protection Yes
 Input Range +10 ~ +30 VDC
 Consumption 0.9 W



 Mechanical
 Dimensions (mm) 72 x 123 x 35 (W x L x H)
 Installation DIN-Rail Mounting



 Environment
 Operating Temperature -25 °C ~ +75 °C
 Storage Temperature --40 °C ~ +85 °C
 Humidity 10 ~ 95% RH, Non-condensing



Description

 PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY
M-7017RMS-G     CR  8-ch True RMS Input Module using DCON and Modbus Protocols (Gray Cover) (RoHS) 1
