Data Acquisition

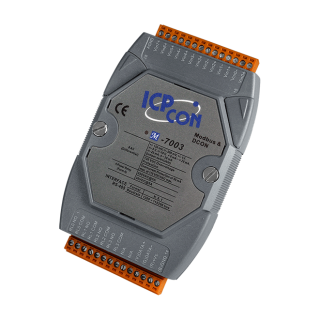

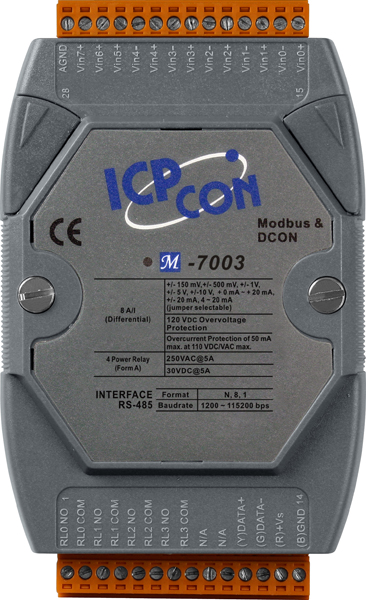

M-7003-G

  • Voltage and Current Inputs
  • Relay Outputs
  • High Resolution: 16-bit
  • Photocoupler Isolation
  • Built-in Dual Watchdog

Introduction

The M-7003 module features 16-bit resolution, 8-channel analog input, and 4-channel relay output module. All of its channels are Form A type relay module that provides programmable input range on all analog channels (±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V, ±20 mA, 0 ~ 20 mA, and 4 ~ 20 mA). Each analog channel is allowed to configure an individual range and has 120 VDC high overvoltage protection. Jumper selectable for voltage or current input. The sampling rate of the M-7003 is changeable; there are fast mode and normal mode for your consideration. The M-7003 also has a qualification for 4 kV ESD protection as well as 2500 VDC intra-module isolation.

Application

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Specifications

 CPU Module
 Watchdog Timer Module, Communication (Programmable)



 Isolation
 Intra-module Isolation 2500 VDC



 EMS Protection
 EFT (IEC 61000-4-4) ±4 kV for Power Line
 ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
 Surge (IEC 61000-4-5) ±3 kV for Power Line



 LED Indicators
 Status 1 x Power and Communication



 Analog Input
 Channels 8 (5 Differential and 3 Single-ended)
 Type Voltage
Current
 Range Voltage: ±150 mV, ±500 mV, ±1 V , ±5 V, ±10 V
Current: ±20 mA , 0 ~ 20 mA, 4 ~ 20 mA (Jumper selectable)
 Resolution 16-bit
Accuracy Normal Mode: 0.1% of FSR
Fast Mode: 0.5% of FSR
Sampling Rate Normal Mode: 10 Hz
Fast Mode: 60 Hz
Input Impedance Voltage: 20 MΩ (Differential)
Currnet: 10 MΩ (Single-ended)
Common Voltage Protection ±15 VDC
Overvoltage Protection 120 VDC
Individual Channel Configuration Yes



 Relay Output
Channels 4
Type Power Relay (Form A)
Contact Rating 5 A @ 250 VAC
5 A @ 30 VDC
Operate Time 3 ms
Release Time 2 ms
Electrical Endurance 10^5 ops.
Mechanical Endurance 2 x 10^7 ops.
Power on Value Programmable
Safe Value Programmable





 COM Ports
 Ports 1 x RS-485
 Baud Rate 1200 ~ 115200 bps
 Data Format (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1)
 Protocol Modbus RTU, DCON



 Power
 Reverse Polarity Protection Yes
 Input Range +10 ~ +30 VDC
 Consumption 1.8 W



 Mechanical
 Dimensions (mm) 72 x 123 x 35 (W x L x H)
 Installation DIN-Rail Mounting



 Environment
 Operating Temperature -25 ~ +75 °C
 Storage Temperature -40 ~ +85 °C
 Humidity 10 ~ 95% RH, Non-condensing



Description

 PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY
 M-7003-G     CR  8-ch AI and 4-ch Relay Module using DCON and Modbus Protocols (Gray Cover) (RoHS) 1
