Data Acquisition

M-2224CI

  • 4-channel differential analog outputs
  • Current, Voltage Output
  • Open Wire Detection for Current Output
  • RF Immunity
  • Short Circuit Protection
  • Dual Watchdog

Introduction

The M-2224CI is a 4-channel analog differential output module with 3000 VDC channel-to-channel isolation. It provides a programmable output range on all analog output channels (0 ~ 5 V, 0 ~ 10 V, +4 ~ +20 mA, or 0 ~ +20 mA). Each analog output channel can be configured for an individual range and provides an RF immunity level matching that defined by the IEC 61000-4-3 standard. The module also features per-channel open wire detection for +4 ~ +20 mA outputs, together with 4 kV ESD protection as well as 3000 VDC intra-module isolation. Options for configuring power-on and safe values are also included.

Specifications

 CPU Module
CPU 32-bit ARM
 Watchdog Timer Module, Communication (Programmable)



 Isolation
 Intra-module Isolation 3000 VDC



 EMS Protection
 EFT (IEC 61000-4-4) ±4 kV for Power Line
 ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
±8 kV Air for Random Point
 Surge (IEC 61000-4-5) ±2 kV for Power Line



 LED Indicators
 Status 1 x Power and Communication



 Analog Input
 Channels 4 Differential
 Type Voltage
Current
 Resolution 12-bit
 Accuracy ±0.1% of FSR
 Short Circuit Protection Yes
 DA Output Response Time 10 ms per channel
 Programmable Output Slope Voltage: 0.0625 ~ 512 V/Second
Current: 0.125 ~ 1024 mA/Second
 Open Wire Detection Yes, +4 ~ +20 mA
 Current Output Capacity 500 Ω
 Voltage Output Capability 10 V @ 10 mA
 Channel-to-Channel Isolation 3000 VDC
 Power-on Value Yes
 Safe Value Yes

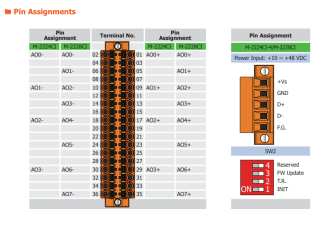

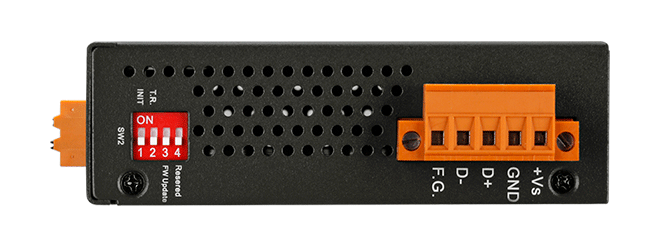

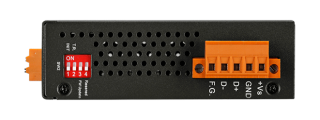

 COM Ports
 Ports 1 x RS-485
 Baud Rate 1200 ~ 115200 bps
 Data Format (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1)
 Protocol Modbus RTU, DCON
 Bias Resistor 10 kΩ



 Power
 Reverse Polarity Protection Yes
 Input Range +10 ~ +30 VDC
 Consumption 4.6 W Max.



 Mechanical
 Dimensions (mm) 33 x 176 x 130 (W x L x H)
 Installation DIN-Rail Mounting



 Environment
 Operating Temperature -25 ~ +75 °C
 Storage Temperature -30 ~ +80 °C
 Humidity 10 ~ 90% RH, Non-condensing



Description

 PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY
 M-2224CI CR 4-ch Channel to Channel Isolation Differential Analog Output Module using the DCON and Modbus Protocols (RoHS) 1
