Data Acquisition

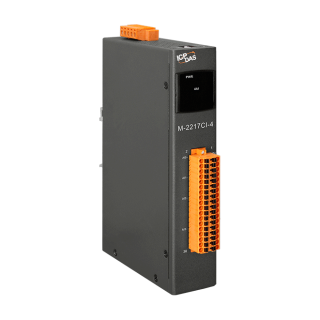

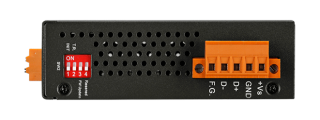

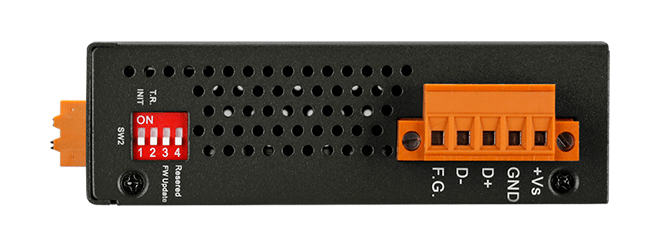

M-2217CI-4

  • 4-channel differential analog inputs
  • Current, Voltage Input
  • Resolution: 12/16 bits
  • Adjustable Sampling Rate

Introduction

The M-2217CI-4 is a 4-channel analog differential input module with 3000 VDC channel-to-channel isolation. It provides a programmable input range on all analog input channels (±1 V, ±2.5 V, ±5 V, ±10 V, ±20 mA) also high overvoltage protection of 120 VDC. The sampling rate of the M-2217CI-4 is adjustable and is available in either fast or normal mode. It also provides 4 kV ESD protection and 3750 VDC intra-module isolation.

Specifications

 CPU Module
 CPU 32-bit ARM
 Watchdog Timer Module, Communication (Programmable)



 Isolation
 Intra-module Isolation 3750 VDC



 EMS Protection
 EFT (IEC 61000-4-4) ±4 kV for Power Line
 ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
±8 kV Air for Random Point
 Surge (IEC 61000-4-5) ±2 kV for Power Line



 LED Indicators
 Status 1 x Power and Communication



 Analog Input
 Channels 4 Differential
 Type Voltage
Current
 Range Voltage: ±1 V, ±2.5 V, ±5 V, ±10 V
Current: ±20 mA
 Resolution Normal Mode: 16-bit
Fast Mode: 12-bit
 Accuracy Normal Mode: ±0.1% of FSR
Fast Mode: ±0.5% of FSR
 Sampling Rate Normal Mode: 10 Hz (Total)
Fast Mode: 200 Hz (Total)
 Input Impedance 20 MΩ
 Overvoltage Protection 120 VDC
 Channel-to-Channel Isolation 3000 VDC



 COM Ports
 Ports 1 x RS-485
 Baud Rate 1200 ~ 115200 bps
 Data Format (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1)
 Protocol Modbus RTU, DCON
 Bias Resistor 10 k Ω



 Power
 Reverse Polarity Protection Yes
 Input Range +10 ~ +48 VDC
 Consumption 5.4 W Max.



 Mechanical
 Dimensions (mm) 33 x 176 x 130 (W x L x H)
 Installation DIN-Rail Mounting



 Environment
 Operating Temperature -25 ~ +75 °C
 Storage Temperature -30 ~ +80 °C
 Humidity 10 ~ 90% RH, Non-condensing



Description

 PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY
 M-2217CI-4 CR       4-ch Channel to Channel Isolation Differential Analog Input Module using the DCON and Modbus Protocols (RoHS) 1
