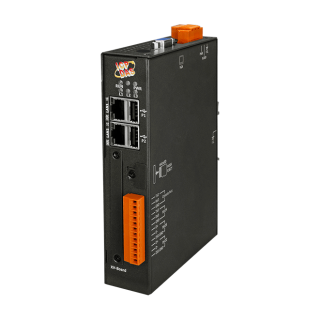

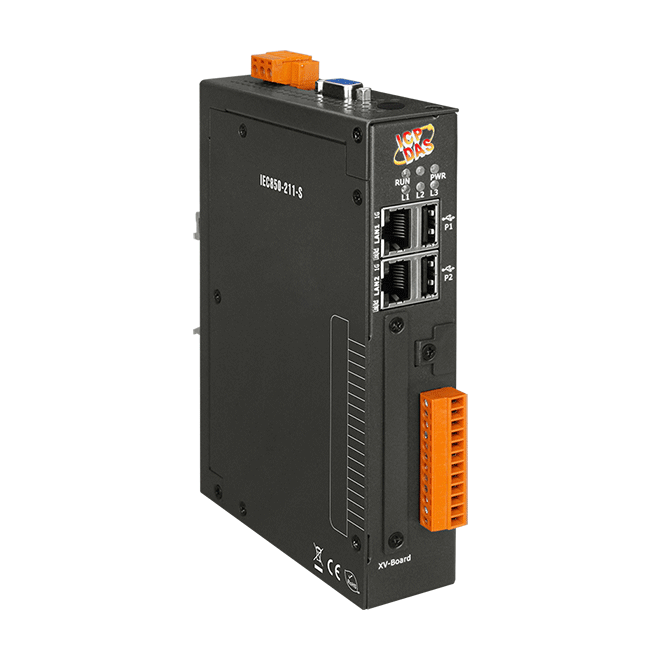

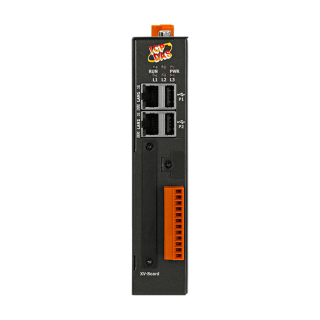

Industrial Gateway

IEC850-211-S

  • Read/Write Modbus register via IEC-61850
  • Maps Modbus registers to IEC-61850 data objects via utility automatically
  • Supports Logical Node GGIO and Data Object Ind, IntIn, SPCSO, ISCSO
  • Offers secure remote operations with a Select-Before-Operate feature
  • Supports Modbus function code 1, 2, 3, 4, 5 and 6
  • Allows up to 32 Modbus TCP server and 5 IEC-61850 MMS client connections
  • Allows 9600 Modbus registers in total. (Includes coil, discrete inputs, input registers and hold registers)
  • Provides ICD file via utility

Introduction

IEC 61850 is an international standard defining communication protocols for intelligent electronic devices at electrical substations. It is developed by the International Electrotechnical Commission's (IEC) Technical Committee 57 reference architecture for electric power systems. The objective of the standard is to specify requirements and to provide a framework to achieve interoperability between the IEDs supplied from different suppliers. This protocol can run over TCP/IP networks or substation LANs using high speed switched Ethernet to obtain the necessary response times below four milliseconds for protective relaying.
IEC850-211-S is a network gateway allowing IEC-61850 MMS client to access Modbus TCP network as a Modbus TCP client. IEC-61850 protocol is used in substation automation. The IEDs exchange information with other IEDs or SCADA via IEC-61850 protocol for protection and control devices. IEC850-211-S support Logical Node GGIO and Data Object Ind, IntIn, SPCSO, ISCSO. It also support data set and unbuffered report function to exchange data with a client. The data mapping rule can be configured via ICPDAS Utility.

Application

Specifications

 Software
 OS Linux Kernel 3.2.14
 Protocol Modbus TCP client:
• Function:1, 2, 3, 4, 5, 6
• connection:Max. 32 Modbus TCP servers

IEC-61850 MMS server:
• connection:Max. 5 MMS clients
• Logical Node:LLN0、LPHD、GGIO
• Data Object:Ind, IntIn, SPCSO, ISCSO
• control:
---- status-only
---- direct-with-normal-security
---- direct-with-enhanced-security
---- sbo-with-normal-security
---- sbo-with-enhanced-security
 Service SFTP server, Web server



 Main Unit
 CPU Cortex-A8, 1 GHz
 System Memory 512 MB DDR3 SDRAM
 Real Time Clock Yes (Provide seconds, minutes, hours, day of week, month, year)
 Watchdog Timer Yes, Dual Watchdog Timer



 Display
 Signal VGA (Analog RGB)



 LED Indicators
 Status 1 x PWR(Power)
1 x RUN(Running)
1 x L1
1 x L2
1 x L3



 COM Ports
 Ports 1 x RS-232 (Console, Non-isolated)
1 x RS-232, Non-isolated
1 x RS-485, Non-isolated
1 x RS-485 (2500 VDC, Isolated)



 Ethernet
 Ports 2 x RJ-45, 10/100/1000 Base-TX



 USB
 Ports 2
 Specification USB 2.0 (Host)



 Power
 Input Range +12 VDC ~ +48 VDC
 Consumption 4.8 W



 Mechanical
 Casing Metal
 Dimensions (mm) 35 x 167 x 119 (W x L x H)
 Installation DIN-Rail or Wall Mounting (optional)



 Environment
 Operating Temperature -25 ~ +75 °C (-13 to 167 ℉)
 Storage Temperature -40 ~ +80 °C (-22 to 176 ℉)
 Humidity 10% ~ 95% RH, Non-condensing



Description

 PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY
     IEC850-211-S     CR  Modbus TCP Master to IEC-61850 Server Gateway (RoHs) 1
