Industrial Gateway

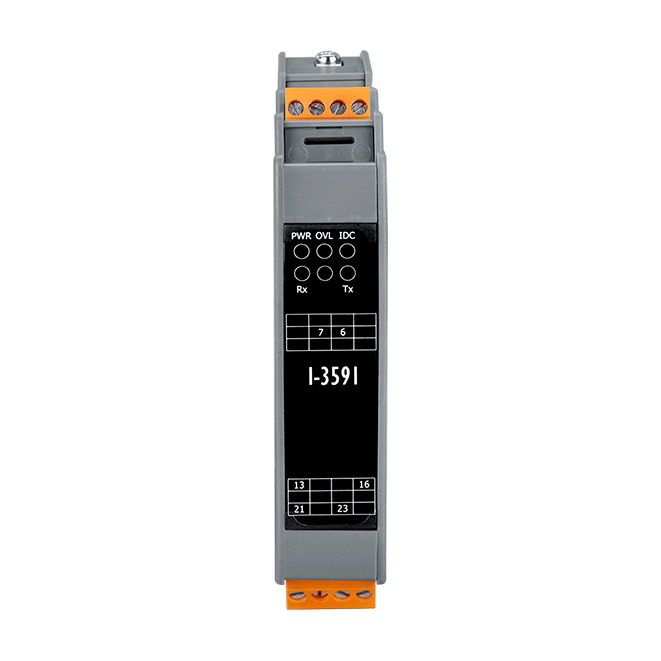

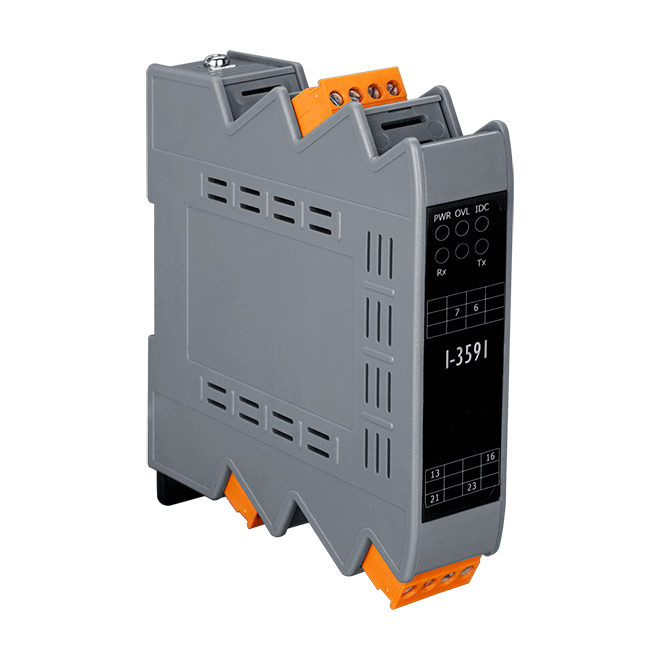

I-3591

  • Supports M-Bus physical layer
  • Supports drive up to 100 M-Bus slaves
  • Auto M-Bus baud rate
  • M-Bus distance is extended by 1200 meters (at 2400 bps)
  • M-Bus overloading alarm
  • Overcurrent and short-circuit protection on the M-Bus port
  • Reverse polarity protection on power

Introduction

M-Bus (Meter-Bus) is a communication interface widely used in various meters, such as electricity meters, water meters, heat meters, etc. It is easy to install (two-wire system includes power and communication function) and robustness are the most important features. I-3591 is the M-Bus repeater developed by ICP DAS, its main function is to strengthen the driving ability of M-Bus, extend the communication distance of M-Bus, reshape the signal waveform, etc. Provide the M-Bus master with better communication capabilities. I-3591 does not require any settings, it can be used directly after connecting to the line, and easy to use is also one of the main features of I-3591.

Application

Specifications

 M-Bus
 Ports 1 Master Port, 1 Slave Port
 Baud Rate Auto-adjust
 Isolation 3750 Vrms for photo-couple
 Current Protection short-circuit protection



 Power
 Consumption 1.6 W @ 24 VDC (with 1 slave device), 9.7 W @ 24 VDC (with 100 slave devices)



 Mechanical
 Dimensions (mm) 25 x 116 x 120 (W x H x D)
 Installation DIN-Rail



 Environment
 Operating Temperature -25 ~ +75 °C (-13 to 167 ℉)
 Storage Temperature -30 ~ +80 °C (-22 to 176 ℉)
 Humidity 10% ~ 90% RH, Non-condensing



Description

 PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY
             I-3591     CR  M-Bus Repeater (RoHs) 1
