Industrial Gateway

HRT-227CS

  • Support HART Short/Long frame
  • Support HART Burst mode
  • Support point-to-point or multi-drop HART mode
  • Support connecting up to 15 HART slave devices
  • Allow two HART masters
  • Provide HC_Tool utility for module configuration
  • Support firmware update via ComPort
  • Fiber broken line detection
  • Fiber Type: SC ; Single mode ; 100 Base-FX
  • Fiber max. transmission distance up to 30 km
  • 4KV ESD Protection
  • Built-in Watchdog
  • Selectable 250Ω loop resistor
  • The HART port with the same Group ID can communicate with each other

Introduction

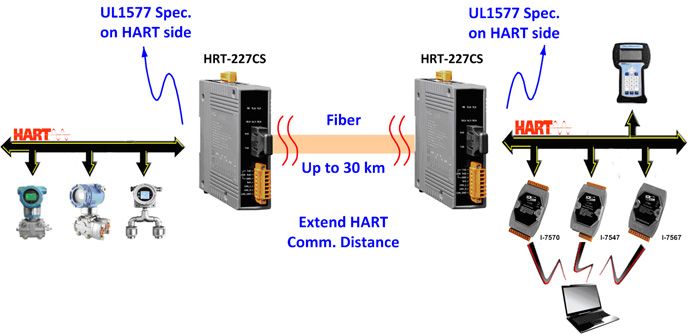

The HRT-227CS is a HART to Fiber converter paired used to extend HART communication distance via single mode fiber optic transmission medium. In order to solve the problem between HART and fiber transmission medium, HRT-227CS is specially designed for converting the HART signal to fiber optic cables. Built-in a HART 250 Ω loop resistor adjustable by dip switch. Therefore, users can make data collection and processing of HART network easier and quicker by applying HRT-227CS. In addition, we also provide the free HC_Tool utility for module configuration easily.

Application

  • Current Measuring

  • Petrochemical Industry Application

  • Environment Monitoring

  • Tunnel Monitoring

  • Monitor system

  • Building Monitoring

Specifications

 LED Indicators
 Status PWR, FB_Ack, FB_Err, HT_Err, HT_Tx and HT_Rx



 COM Ports
 Ports RS-232 (TXD / RXD / GND) for configuration (1200, O, 8 ,1)



 Fiber
 Ports SC Duplex type ; Single mode ; 100 Base-FX
 Fiber Cable 8.3/125, 8.7/125, 9/125 or 10/125
 Wavelength 1310 nm
 TX Output -15 dBm Min.
-8 dBm Max.
 RX Sensitivity -34 dBm Max.
 RX Overload -5 dBm Max.
 Budget 19 dBm



 HART
 Ports 1
 Data Only Digital Data
 Loop Resistor Selectable 250 Ω loop resistor
 Isolation UL1577 Spec.
 Protocol 2-pin screwed terminal block (HART+, HART-)



 Power
 Reverse Polarity Protection Power reverse polarity protection, Over-voltage brown-out protection
 Input Range Unregulated +10 ~ +30 VDC
 Consumption 3W



 Mechanical
 Dimensions (mm) 33.0 x 126 x 101 (W x L x H)
 Installation DIN-Rail



 Environment
 Operating Temperature -25 ~ +75 °C (-13 to 167 ℉)
 Storage Temperature -30 ~ +80 °C (-22 to 176 ℉)
 Humidity 10% ~ 90% RH, Non-condensing



Description

 PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY
 HRT-227CS     CR  HART to Single Mode Fiber Converter (RoHS) 1
