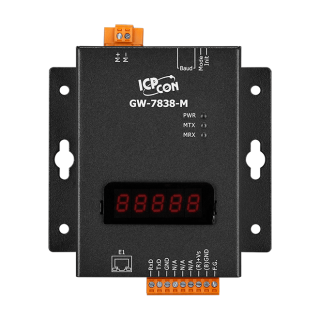

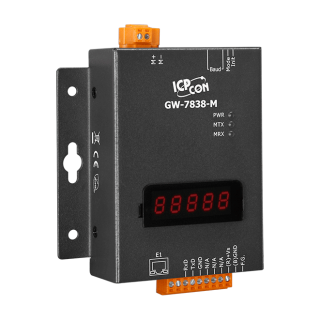

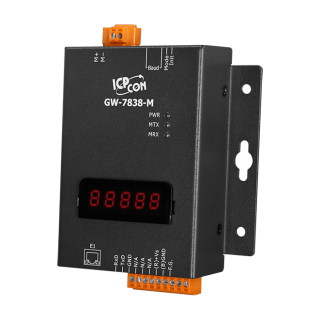

GW-7838-M

Industrial Gateway

GW-7838-M

  • Supports M-Bus standard: EN-13757, CJ/T -188
  • Supports Modbus TCP/RTU function code 0x03 and 0x04 to read Meter data
  • Default M-Bus port data format: Data bit 8, Parity Even, Stop bit 1
  • Supports up to 100 M-Bus slaves
  • M-Bus over current protection
  • Short-circuit protection on the M-Bus
  • Update firmware from serial port
  • Watchdog inside

Introduction

M-Bus (Meter-Bus) is a communication interface widely used in various meters, such as electricity meters, water meters, heat meters, etc. Ease of installation (two-wire system includes power and communication function) and robustness are the most important features. M-Bus has its own physical layer and protocol. Therefore, it is usually switched to other systems, such as Modbus, to facilitate the overall application.

In the field of automation, Modbus TCP/RTU is one of the most common communication standards. ICP DAS developed the gateway GW-7838-M for Modbus TCP/RTU to M-Bus, allows the direct transmission of meter data to a control system using Modbus TCP/RTU. The GW-7838-M supports operating up to 100 devices on the M-Bus. After an initial configuration by M-Bus utility, GW-7838-M will read out the meters data autonomously. The PLC or PC as a Modbus TCP/RTU client can access meter data via a TCP/RS-232 connection easily.

Application

The M-Bus (Meter‐Bus) is a bus optimized for the reading of measurement instruments like: energy counters, hot and cold water counters, gas, pressure, sensors and actuators, etc.….

Specifications

 COM Ports
 Ports 1 x RS-232, Non-isolated
 Baud Rate 300 ~ 115200 bps
 Parity None, Even, Odd, Mark, Space
 Data Bit 5, 6, 7, 8
 Stop Bit 1, 2



 Ethernet
 Ports 1 x RJ-45, 10/100Base-T(X)
 Protocol Modbus TCP



 M-Bus
 Ports 1
 Baud Rate 300 ~ 2400 bps and user-defined baud rate
 Data Bit 5, 6, 7, 8
 Stop Bit 1, 2
 Parity None, Even, Odd, Space, Mark
 Isolation 3750 Vrms for photo-couple
 Current Protection short-circuit protection



 Power
 Consumption 1.8 W @ 24 VDC (with 1 slave device), 11.8 W @ 24 VDC (with 100 slave devices)



 Mechanical
 Dimensions (mm) 102 x 123 x 40 (W x H x D)
 Installation Wall mounting



 Environment
 Operating Temperature -25 ~ +75 °C (-13 to 167 ℉)
 Storage Temperature -30 ~ +80 °C (-22 to 176 ℉)
 Humidity 10% ~ 90% RH, Non-condensing



Accessories

CA-0910
     CA-0910

Description

 PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY
      GW-7838-M     CR  Modbus TCP Server to M-Bus Master Gateway (Metal Case)(RoHS) 1
