GW-7828

Industrial Gateway

GW-7828

  • Supports M-Bus standard: EN-13757, CJ/T -188
  • Supports Modbus RTU function code 0x03 and 0x04 to read Meter data
  • Supports up to 100 M-Bus slaves
  • M-Bus over current protection
  • Short-circuit protection on the M-Bus
  • Update firmware from serial port

Introduction

The M-Bus ("Meter-Bus") is a standard for remote reading of meters. It is usable for most types of consumption meters as well as for various sensors and actuators. The GW-7828 is specially designed for M-Bus slave device. It offers Modbus RTU communication by three kinds of interface, RS-232, RS-422 and RS-485. On hardware the GW-7828 has two rotary switches for serial port and M-Bus port baud rate. GW-7828 supports Modbus RTU function code 0x03 and 0x04 to read data of M-Bus meters. Through this design, it is easy to communicate with any standard M-Bus slave.

GW-7828 AP

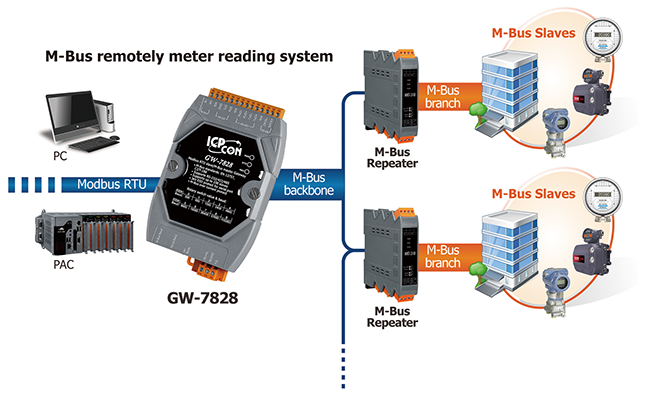

Application

The M-Bus (Meter‐Bus) is a bus optimized for the reading of measurement instruments like: energy counters, hot and cold water counters, gas, pressure, sensors and actuators, etc.….

GW-7828 AP

Specifications

 COM Ports
 Ports 1 x RS-232
1 x RS-422 　　 (can't be used simultaneously)
1 x RS-485
 Baud Rate 300 bps ~ 115200 bps
 Parity None, Even, Odd, Space, Mark
 Data Bit 5, 6, 7, 8
 Stop Bit 1, 2



 M-Bus
 Baud Rate 300 bps ~ 2400 bps
 Data Bit 5, 6, 7, 8
 Stop Bit 1, 2
 Parity None, Even, Odd, Space, Mark
 Isolation 3750 Vrms for photo-couple
 Current Protection short-circuit protection



 Power
 Consumption 1.8 W @ 24 VDC (with 1 slave device)
11.8 W @ 24 VDC (with 100 slave devices)



 Mechanical
 Dimensions (mm) 72 x 122 x 33 (W x L x D)
 Installation DIN-Rail



 Environment
 Operating Temperature -25 ~ +60 °C (-13 to 167 ℉)
 Storage Temperature -40 ~ +80 °C (-22 to 176 ℉)
 Humidity 10% ~ 90% RH, Non-condensing



Accessories

CA-0910
     CA-0910

Description

 PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY
          GW-7828     CR  Modbus RTU Slave to M-Bus Master Gateway (RoHS) 1
