Industrial Gateway

GW-7662

  • Protocol: PROFINET IO Device
  • PROFINET Conformance Class B and RT Class 1
  • Cyclic Time: 1ms (min)
  • Generic GSDML File Provided (Version 2.25)
  • Max length of input/output data is 512/512 Bytes
  • Support Modbus Master and Slave mode
  • Support Modbus RTU and ASCII format
  • 4 kV Contact ESD protection for any terminal

Introduction

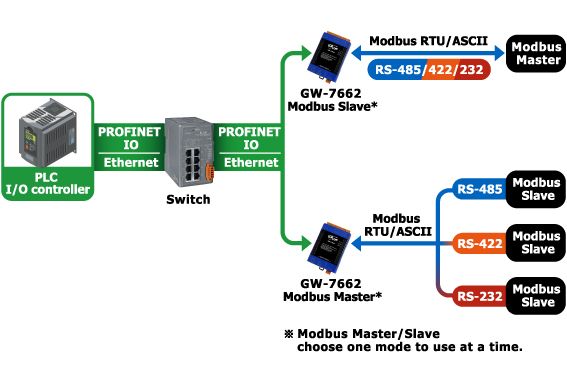

The GW-7662 specially designed for PROFINET IO device. It allows PROFINET controller to access Modbus devices. These Modbus devices maybe a PLC, a sensor, ICPDAS M-7000 series modules and so forth. We also provide a utility software for users to configure GW-7662. By using this module, users can put their Modbus devices into PROFINET network easily.

Application

  • Industrial Automation

  • Factory Automation

  • Process Automation

  • Etc…

Specifications

 CPU Module
 CPU 32-bit CPU Core
 EEPROM 8 KB
 Flash 4 MB
 SRAM 32 MB
 Watchdog Timer CPU built-in



 LED indicators
 Status AP LED, BOOT LED, ERR LED



 COM Ports
 Ports RS-232/RS-422/RS-485 (can't be used simultaneously)
3-pin screwed terminal block (RxD, TxD, GND)
4-pin screwed terminal block (RxD+, RxD-, TxD+, TxD-)
2-pin screwed terminal block (DATA+, DATA-)
 Baud Rate 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800
 Parity None, Even, Odd
 Data Bit 7, 8
 Stop Bit 1, 2



 Ethaernet
 Services ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging



 PROFINET
 Conformance Classes Class B
 Services RTC, RTA, CL-RPC, DCP, LLDP, I&M
 Cycle Time 1 ms (min)
 Protocol PROFINET IO Device



 Power
Consumption 3.4 W



 Mechanical
 Dimensions (mm) 42 x 76 x 119 (W x L x H)
 Installation DIN-Rail



 Environment
 Operating Temperature -25 ~ +75 °C (-13 to 167 ℉)
 Storage Temperature -30 ~ +80 °C (-22 to 176 ℉)
 Humidity 10% ~ 90% RH, Non-condensing



Description

 PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY
 GW-7662     CR  PROFINET to Modbus RTU/ASCII Gateway (RoHS) 1
