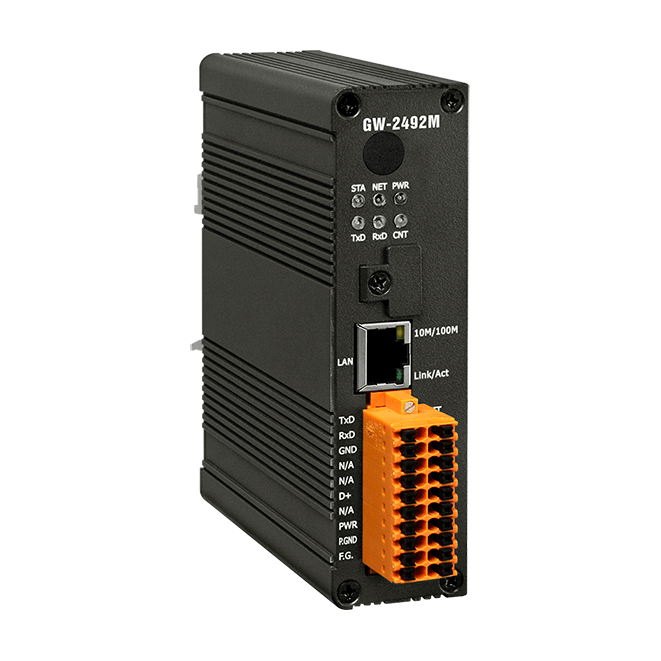

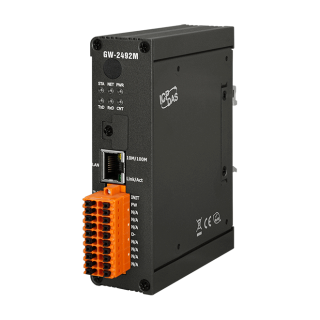

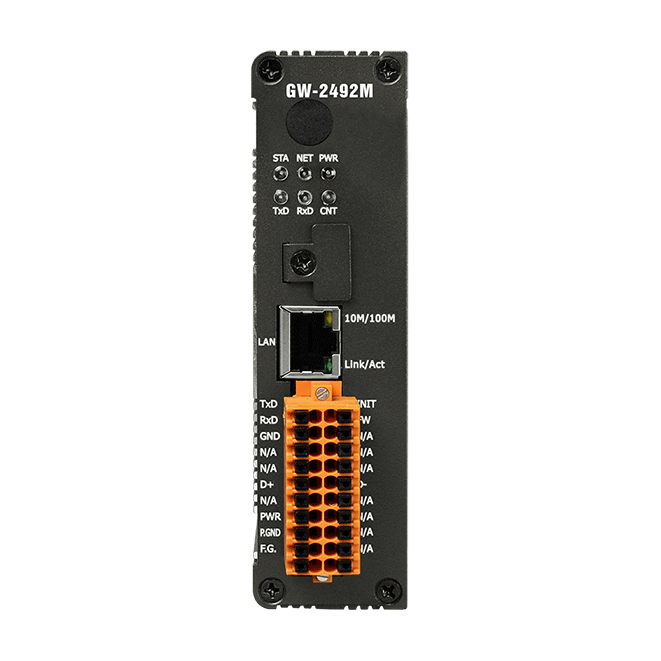

Industrial Gateway

GW-2492M

  • Read/Write Modbus registers via BACnet objects
  • Configurable BACnet/IP Server
  • Configurable Modbus RTU Master
  • Supports BACnet AI, AO, AV, BI, BO, BV, MSI, MSO, MSV Object Types
  • Supports Modbus discrete inputs, coils, input registers and holding registers
  • Supports up to 180 DI, 180 DO, 180 AI and 180 AO to transfer to BACnet Objects
  • Simple data translation allows you to manipulate data as it passes between protocol


Introduction

GW-2492M is a network gateway allowing BACnet client devices to be accessed Modbus network as a Modbus RTU master. The BACnet/IP protocol is used to relay and exchange information between building devices. GW-2492M contains a large number of BACnet objects (AI, AO, AV, BI, BO, BV, MSI, MSO, MSV) gives you flexibility in mapping Modbus RTU registers to any combination of BACnet objects. Multiple BIBBs (DS-RP-B, DS-RPM-B, DS-WP-B, DS-WPM-B,…etc.) are supported. All the data transfer is configurable using a standard Web browser.

Application

  • Building Automation

  • Heating, Ventilating, and Air-conditioning Control

  • Lighting Control

  • Access Control

  • Fire Detection Systems

Specifications

 LED Indicators
 Status Power (1), BACnet/IP Status (1), BACnet/IP Net(1),
Modbus RTU TxD/RxD/Link (3)
Ethernet LED Ethernet Status (RJ-45) (2)



 COM Ports
 Ports termninal block(D+, D-, TxD, RxD, GND)



 Ethaernet
Ports 1 x RJ-45, 10/100Base-TX



 BACnet/IP
 Protocol Modbus RTU Master (Supports up to 32 stations)
 Objects AI, AO, AV, BI, BO, BV, MSI, MSO, MSV(Convert modbus 600 DI, 600 DO, 600 AI and 600 AO)
 BIBBs DS-RP-B, DS-RPM-B, DS-WP-B, DS-WPM-B, DM-DDB-B, DM-DOB-B, DM-DCC-B, DM-RD-B



 Power
 Input Range +10 ~ +30 VDC
 Consumption 5 W @ 24 VDC



 Mechanical
 Casing Metal
 Dimensions (mm) 33 x 120 x 116
 Installation DIN-Rail



 Environment
 Operating Temperature -25 ~ +75 °C (-13 to 167 ℉)
 Storage Temperature -30 ~ +80 °C (-22 to 176 ℉)
 Humidity 10% ~ 90% RH, Non-condensing



Accessories

CA-0910
    CA-0910

Description

 PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY
 GW-2492M     CR  BACnet/IP to Modbus RTU Gateway (RoHS) 1
