Industrial Gateway

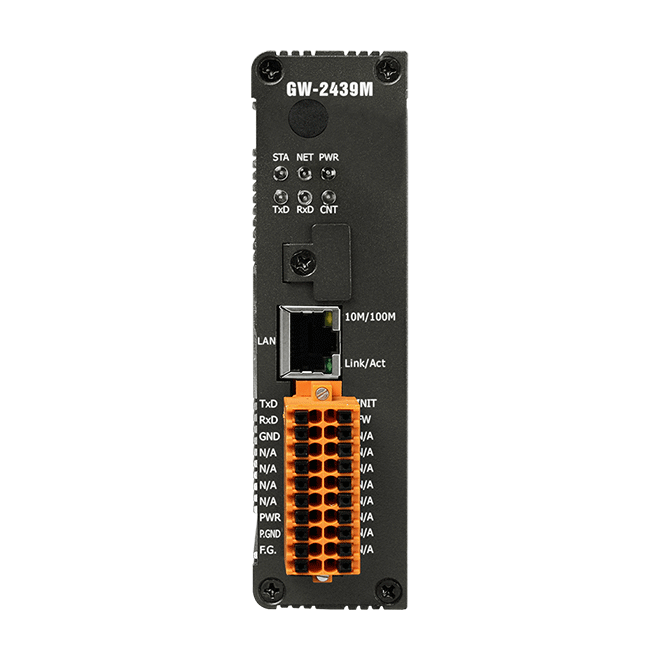

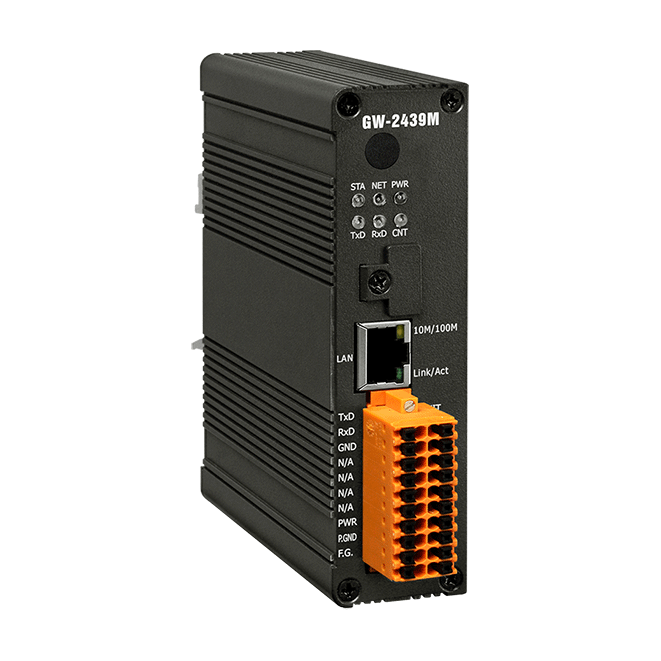

GW-2439M

  • Read/Write BACnet objects via Modbus registers
  • Configurable BACnet/IP Client
  • Configurable Modbus TCP Server
  • Supports BACnet AI, AO, AV, BI, BO, BV, MSI, MSO, MSV Object Types
  • Supports Modbus discrete inputs, coils, input registers and holding registers
  • Supports up to 500 DI/O and 1000 AI/O modbus registers to convert remote BACnet objects' present value
  • Simple data translation allows you to manipulate data as it passes between protocol

Introduction

GW-2439M is a network gateway allowing Modbus TCP client devices to be accessed BACnet/IP network as a BACnet/IP client. The BACnet/IP protocol is used to relay and exchange information between building devices. GW-2439M contains a large number of BACnet objects (AI, AO, AV, BI, BO, BV, MSI, MSO, MSV) gives you flexibility in mapping Modbus TCP registers to any combination of BACnet objects. BACnet interoperability building blocks (DS-RP-A, DS-RPM-A, DS-WP-A, DS-WPM-A, DM-DDB-A, DM-DOB-A, DM-DCC-A, DM-RD-A) are Supported. All the data transfer is configurable using ICPDAS Utility.

Application

  • Building Automation

  • Heating, Ventilating, and Air-conditioning Control

  • Lighting Control

  • Access Control

  • Fire Detection Systems

Specifications

 LED Indicators
 Status Power (1), BACnet/IP Status (1), BACnet/IP Net(1),
Modbus TCP TxD/RxD/Link (3)
Ethernet LED Ethernet Status (RJ-45) (2)



 Ethaernet
 Ports 1 x RJ-45, 10/100Base-TX
 Protocol Modbus TCP Server



 BACnet/IP
 Protocol BACnet/IP Client (Supports up to 32 stations)
 Objects AI, AO, AV, BI, BO, BV, MSI, MSO, MSV(Supports up to 500 DI/O and 1000 AI/O modbus registers to convert remote BACnet objects' present value)
 BIBBs DS-RP-A, DS-RPM-A, DS-WP-A, DS-WPM-A, DM-DDB-A, DM-DOB-A, DM-DCC-A, DM-RD-A



 Power
 Input Range +10 ~ +30 VDC
 Consumption 5 W @ 24 VDC



 Mechanical
 Casing Metal
 Dimensions (mm) 33 x 120 x 116
 Installation DIN-Rail



 Environment
 Operating Temperature -25 ~ +75 °C (-13 to 167 ℉)
 Storage Temperature -30 ~ +80 °C (-22 to 176 ℉)
 Humidity 10% ~ 90% RH, Non-condensing



Description

 PRODUCT SERIES     DESCRIPTION    QTY   INQUIRY
 GW-2439M     CR  Modbus TCP to BACnet/IP Gateway (RoHS) 1
