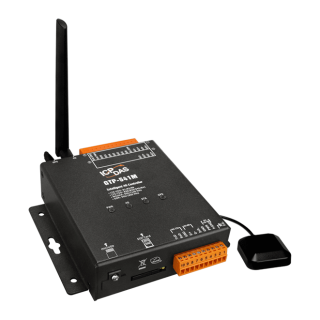

GTP-541M

  • Support LTE-FDD Band B1/B3/B8
  • Support LTE-TDD Band B38/B39/B40/B41
  • Support WCDMA/HSPA+ Dual-band 900/2100 MHz
  • Support GSM/GPRS Dual-band 900/1800 MHz
  • 1 x RS-485 and 1 x RS-232 for general COM port
  • Power Reverse Polarity Protection
  • Power supply +10 VDC ~ +30 VDC
  • I/O Trigger SMS/Voice Alarm Function
  • Modbus Trigger SMS/Voice Alarm Function
  • 4G RTU Function with GPS
  • 4G/Serial gateway function

Introduction

The GTP-541M is an industrial smart 4G remote terminal device that is backward compatible with the 2G/3G frequency band and can be used with different software interfaces to meet user needs. 4G remote terminal equipment transmits I/O signals to the remote management platform through LTE/WCDMA/GPRS. ICP also provides related software support to facilitate customers to quickly establish monitoring programs. These softwares include VxServer. Virtual COM software such as VxComm. In addition, users can switch GTP-541M different functions such as ModBusSMS, DIOSMS and RMV through SD card replacement firmware to meet different application requirements. The powerful features of the GTP-541M reduce user development costs and time, making it ideal for IoT applications.


Application

  •  Modbus SMS Function (SMSMB Firmware)

  • IO SMS Function (SMSDIO Firmware)

  • Text SMS Function (SMSTXT Firmware)

  • Remote Terminal Unit Function (RTU Firmware)

  • Remote Maintain Function(RMV, VSPE Firmware)

Specifications



 Software
Service Virtual COM, RTU, SMS Alarm



 CPU Module
CPU ARM Cortex™ A5 processor
Storage Expansion SD Card (Max. 32GB SDHC)
Real Time Clock Provide seconds, minutes, hours, day of week/month, month and year
Watchdog Timer Yes



LED Indicators
Status 1 x PWR
1 x 4G
1 x STA
1 x GPS



2G System
Data Transmission Rate GPRS
Downlink transfer: Max. 85.6 kbps; Uplink transfer: Max. 85.6kbps
Frequency Band 900/1800 MHz
Coding Schemes CS 1, CS 2,CS 3,CS 4
CSD GSM
Downlink transfer: Max. 14.4 kbps; Uplink transfer: Max. 14.4 kbps
GPRS Multi-slot GPRS class 12; GPRS station class B
Power Class Class 4 (2 W @ 900 MHz)
Class 1 (1 W @ 1800 MHz)
SMS Format Sending: UCS2/7bits
Receiving: UCS2/7bits



3G System
Data Transmission Rate DC-HSPA+
Downlink transfer: Max. 42 Mbps; Uplink transfer: Max. 5.76 Mbps
TD-SCDMA Download: Max. 4.2 Mbps; Upload: Max 2.2Mbps
CDMA2000 EVDO Download: Max. 14.7 Mbps; Upload: Max 5.4Mbps
Frequency Band WCDMA 900/2100 MHz
Power Class Class 3(250mW @ WCDMA)



4G System
Data Transmission Rate LTE(Cat.3)
Downlink transfer: Max. 100 Mbps; Uplink transfer: Max. 50Mbps
Frequency Band FDD LTE : B1/B3/B8
TDD LTE : B38/B39/B40/B41



GPS/GNSS
Protocol NMEA 0183
Support Channels 32



Analog Input
Channels 4
Type Voltage
Range +10V ~ -10V
Resolution 16-bit



Digital Input
Channels 5
Type Wet Contact
Sink/Source (NPN/PNP) Sink/Source, Isolated channel with common power or ground
ON Voltage Level +5V ~ +24V
OFF Voltage Level +1V Max



Digital Output
Channels 2
Load Voltage +24 VDC Max
Load Current 100mA Max



COM Ports
Ports 1 x RS-232/485, Non-isolated
Baud Rate 9600、19200、38400、57600 and 115200 bps



Power
Consumption 4.8W ( 200 mA @ 24 VDC)



Mechanical
Casing Metal
Dimensions (mm) 113 x 125 x 34 (W x L x H)
Installation DIN-Rail/ Screw



Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +80 °C
Humidity 5 ~ 95% RH, Non-condensing



Accessories

ANT-421-05
ANT-421-05

Description

 PRODUCT SERIES     DESCRIPTION    QNT   INQUIRY
GTP-541M     CR  4G Multi Function Controller with GPS (RoHS) (Asia Only) 1
