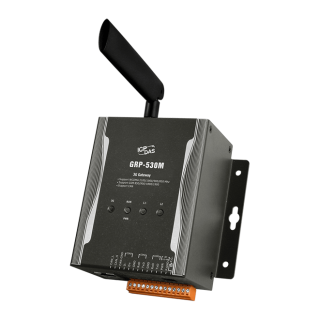

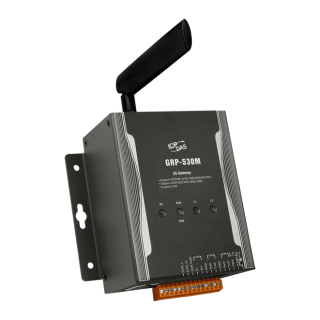

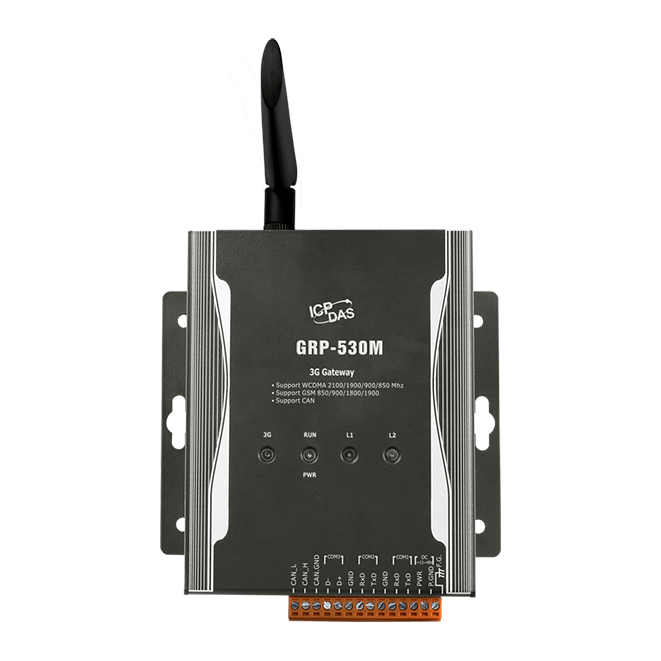

GRP-530M

  • Support WCDMA 850/900/1900/2100 MHz and GSM 850 / 900 / 1800 / 1900 MHz.
  • 10/100/1000 Base-TX compatible ethernet eontroller.
  • COM port: COM1 (3-wire RS232), COM2 (3-wire RS232), COM3 (RS-485) Support CAN.
  • GPS : 32 channels with All-In-View tracking.
  • Support Micro SD card.
  • Provide 3G Router function.
  • Support port mapping function.
  • Serial Port to 3G Gateway.
  • High reliability in harsh environments.
  • DIN-Rail mountable.

Introduction

The GRP-530 design by ICP DAS is a 3G gateway for Ethernet or serial port. With the GPS, the GRP-530 can use as a GPS tracking system. In M2M application fields, use it to transfer the data from remote I/O, Modbus data or video of the camera via 3G/2G. With its high-performance CPU, the GRP-530 Series can handle a large amount of data and are suitable for harsh industrial environments. The GRP-530 Series equipped with the 3G module, Ethernet interface, CAN Bus, and GPS module.

Application

  • 3G Router

  •
  • Remote Video Monitor
  •

  • Serial Port to 3G Gateway Application

Specifications



 CPU Module
CPU ARM CPU
EEPROM 16 KB (Data Retention: 40 years; 1,000,000 erase/write cycles)
Flash 256 MB
SRAM 256 MB
Storage Expansion SD Card (Max. 32GB SDHC)
Real Time Clock Provide seconds, minutes, hours, day of week/month, month and year
Watchdog Timer Yes



 LED Indiacators
Status 1 x RUN/PWR
1 x 3G
1 x L1
1 x L2



2G System
Data Transmission Rate GPRS
Downlink transfer: Max. 85.6 kbps; Uplink transfer: Max. 42.8kbps
Frequency Band 850/900/1800/1900 MHz
Coding Schemes CS 1, CS 2,CS 3,CS 4
GPRS Multi-slot GPRS class 12; GPRS station class B
Power Class Class 4 (2 W @ 850/900 MHz)
Class 1 (1 W @ 1800/1900 MHz)



3G System
Data Transmission Rate WCDMA / HSPA+
Downlink transfer: Max. 14.4 Mbps; Uplink transfer: Max. 5.76 Mbps
Frequency Band WCDMA 850/900/1900/2100 MHz
Power Class Class 3 (250mW @ WCDMA/HSPA)



GPS/GNSS
Protocol NMEA 0183
Support Channels 32



COM Ports
Ports 1 x RS-232 (Console, Debug)
1 x RS-232
1 x RS-485 (3000VDC Isolated)



Ethernet
Ports 1 x RJ-45, 10/100Base-T(X)



CAN
Signal Line CAN Bus (CAN_H, CAN_L)



Power
Consumption 4.8W ( 200 mA @ 24 VDC)



Mechanical
Casing Metal
Dimensions (mm) 117 x 126 x 58 (W x L x H)
Installation DIN-Rail / Screw



Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 95% RH, Non-condensing



Accessories

ANT-115-03
ANT-115-03

Description

 PRODUCT SERIES     DESCRIPTION    QNT   INQUIRY
GRP-530M     CR  Ethernet/Serial/CAN to 2G/3G Gateway (RoHS) 1
