FPM-D2440

High Speed Modules

FPM-D2440

Introduction

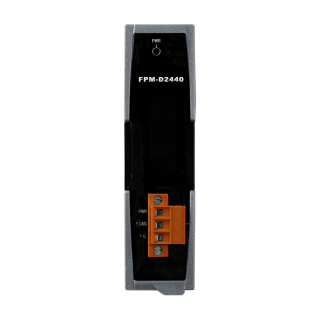

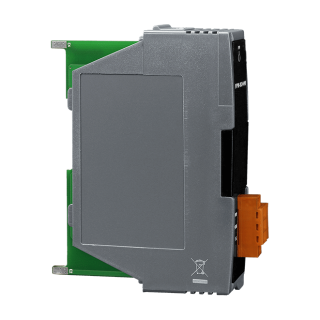

The FPM-D2440 is a power module for the iDCS-8000 system. It is a 24 VDC input with isolated 5V power output. The isolated 5V power provides maximum 40W to the iDCS-8000 system. This power module also offers non-isolated 24V power with 5A fuse limitation. Besides, this module also offers LED to indicate power status locally. Moreover, the module offers 1000 VDC isolation between channels and backplane bus. If any high voltage or current damages the channels, the system (backplanes, other modules, and control unit) won't be affected because the benefit of isolation.

Application

  • Building Automation
  • Factory Automation
  • Machine Automation
  • Remote Maintenance
  • Remote Diagnosis
  • Testing Equipment

Specifications



 EMS Protection
 EFT (IEC 61000-4-4) Yes
 ESD (IEC 61000-4-2) Yes



 LED Indicators
 Status 1 x Power



 Input
 Voltage Range +20 ~ +26 VDC (3)



 Output
 DC Voltage 5 VDC, max. 40W (1)
24 VDC, max. 120W (2)



 Power
 Reverse Polarity Protection Yes
 Redundant Power Inputs Yes



 Mechanical
 Dimensions (mm) 30 x 85 x 115
 Weight 300 g



 Environment
 Operating Temperature -25 ~ +75 °C
 Humidity 10 to 90% RH, Non-condensing



Accessories

4SIPP-801W-CAG

Description

 PRODUCT SERIES     DESCRIPTION    QNT   INQUIRY
 FPM-D2440     CR  Field Power Module 24 VDC input (RoHS) 1
