High Speed Modules

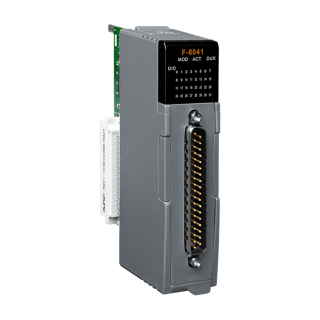

F-8041

  • 32 digital output (sink) channels
  • Safety value (Preset/Hold)
  • Power-on(Initial) value
  • Output channel LED indication
  • RoHS compliance
  • 3000 VDC isolation from output to backplane
  • 3000 VDC isolation from output to frame ground
  • Redundancy
  • Fast redundant switching time (<100us)

Introduction

The F-8041 is a digital output module with 32 NPN channels. The output channel of F-8041 is a current sinking channel and can drive the load up to 0.5A current. The digital output channels offer LED to indicate digital output status. Moreover, the module offers 3000 VDC optical isolation between channels and backplane bus. If any high voltage or current damages the channels, the system (backplanes, other modules, and control unit) won't be affected because the benefit of isolation.

Application

 Building Automation

 Factory Automation

 Machine Automation

 Remote Maintenance

 Remote Diagnosis

 Testing Equipment



Specifications



 Isolation
Intra-module Isolation 3000 VDC



 EMS Protection
 EFT (IEC 61000-4-4) Yes
 ESD (IEC 61000-4-2) Yes



 LED Indicators
 Status 1 x RUN, 1 x ACT, 1 x DUX and Communication (32 as channel 0~31 status)



 Digital Output
Channels 32 (NPN)
Type Sink, Open-collector
Load Current Singel channel: 2mA to 500 mA
Maximum of total channels: 4.5 A
Power on Value Yes
Safe Value Yes (Preset/Hold)



 I/O Expansion
I/O Type DN-DO-16DR-A, DN-DO-16DR-B, DN-DIO-M



 Power
 Consumption 2.1 W @ 24 VDC



 Mechanical
Dimensions (mm) 30 x 85 x 115
Weight 300 g



 Environment
Operating Temperature -25 °C ~ +75 °C
Humidity 5 ~ 95% RH, Non-condensing



Accessories

CA-37100AM CA-3710AM CA-3710D

Description

 PRODUCT SERIES     DESCRIPTION    QNT   INQUIRY
 F-8041     CR  32-ch Isolated DO Redundant Module (RoHS) 1
