High Speed Modules

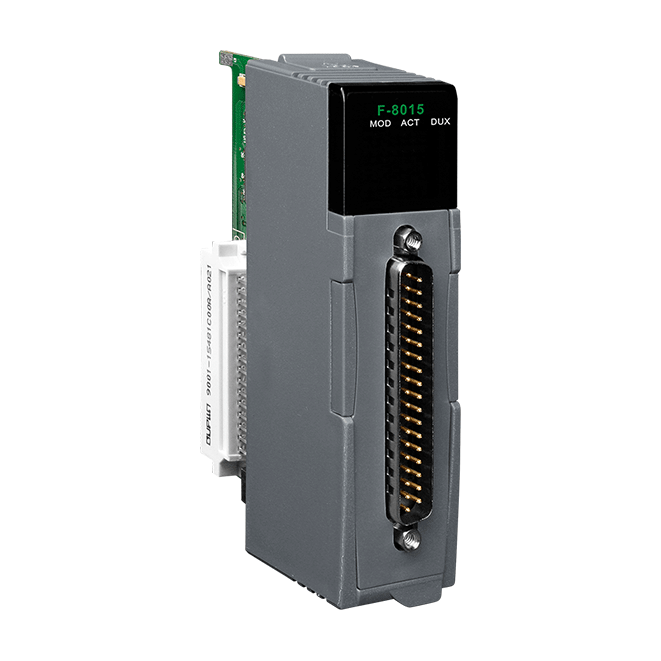

F-8015

  • 8 RTD input channels
  • User defined up/down scale
  • Open wire detection
  • RoHS compliance
  • 3000 VDC isolation from input to backplane
  • 3000 VDC isolation from input to frame ground
  • Redundancy
  • Fast redundant switching time (<100us)

Introduction

The F-8015 is a 16-bit, 8-channel RTD input module that features programmable input range on all channels. This module has ±0.05% accuracy for highly accurate application. Besides, the F-8015 provides 3000 VDC optical isolation between channels and backplane bus. If any high voltage or current damages these channels, this module won’t affect other component in iDCS-8000 system.

Application

 Building Automation

 Factory Automation

 Machine Automation

 Remote Maintenance

 Remote Diagnosis

 Testing Equipment

Specifications



 EMS Protection
EFT (IEC 61000-4-4) Yes
ESD (IEC 61000-4-2) Yes



 LED Indicators
 Status 1 x RUN, 1 x ACT, 1 x DUX and Communication (32 as channel 0~31 status)



 Analog Input
Channels 8
Type RTD
Sensor Type Pt100, JPt100, Pt1000
Range Pt100: -200 ~ +850 ℃
JPt100, Pt1000: -200 ~ +630 ℃
Resolution 16 bit
Accuracy ±0.05% FSR (±250 mΩ)
Sampling Rate 8 Samples/sec (Total)
Input Impedance 20 MΩ
Common Mode Rejection 106 dB
Normal Mode Rejection 90 dB
Overvoltage Protection Yes
Zero Drift ±0.5 μV/°C
Span Drift ±20 ppm/°C
Isolation 3000 VDC



 Analog Output
Open Wire Detection Yes



 I/O Expansion
 I/O Type DN-RTD-M



 Power
 Consumption 1 W



 Mechanical
 Dimensions (mm) 30 x 85 x 115
 Weight 300 g



 Environment
 Operating Temperature -25 °C ~ +75 °C
 Humidity 5 ~ 95% RH, Non-condensing



Accessories

CA-37100AM

 CA-3710AM CA-3710D

Description

 PRODUCT SERIES     DESCRIPTION    QNT   INQUIRY
 F-8015     CR  8-ch Isolated RTD Input Redundant Module (RoHS) 1
