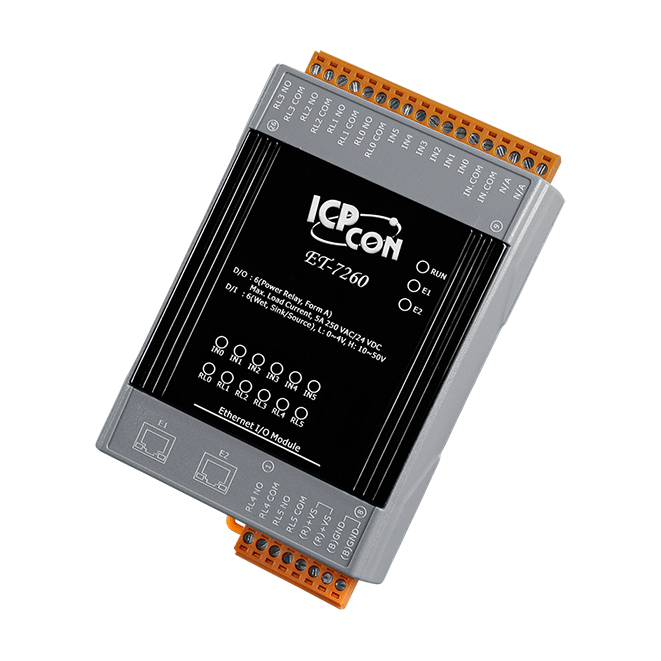

ETS-7260

  • Support for Http/https Web Server
  • Enhanced DoS Protection
  • Support for Modbus/TCP Security
  • Communication Security
  • 2-port Ethernet Switch for Daisy-Chain Topology
  • Dual Watchdog
  • I/O Pair Connection
  • Built-in I/O
    • DI/Counter: 6 Channels
    • Power Relay: 6 Channels

Introduction

The ETS-7260 provides 6 wet contact digital input channels and 6 form A electromechanical relays. It features optical isolation for 3000 VDC of transient overvoltage protection and doesn’t have channel-to-channel isolation. Each input channel can be used as a 32-bit counter. The power-on value and safe value of relay are programmable. Note: When inductive loads are connected to the relays, a large counter electromotive force may occur when the relay actuates because of the energy stored in the load. These flyback voltages can severely damage the relay contacts and greatly shorten the relay life. Limit these flyback voltages at your inductive load by installing a flyback diode for DC loads or a metal oxide varistor for AC loads.

Application

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.

Specifications

 Software
 Built-in Web Server Yes



 CPU Module
 Watchdog Timer Module, Communication (Programmable)



 Isolation
2-way Isolation Ethernet: 1500 VDC
I/O: 3000 VDC



 EMS Protection
 EFT (IEC 61000-4-4) ±4 kV for Power Line
 ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
±8 kV Air for Random Point
 Surge (IEC 61000-4-5) ±2 kV for Power Line



 LED Indicators
 Status Run, Ethernet, I/O



 Digital Input/Counter
 Channels 6
 Type Wet Contact
 Sink/Source (NPN/PNP) Sink/Source
 ON Voltage Level +10 to +50 VDC
 OFF Voltage Level +4 VDC (max.)
 Max. Counts 4,294,967,295 (32-bit)
 Frequency 100 Hz
 Min. Pulse Width 5 ms
 Input Impedance 10 kΩ
 Overvoltage Protection +70 VDC



 Relay Output
Channels 6
Type Power Relay, Form A (SPST N.O.)
Contact Rating 5 A @ 250 VAC/24 VDC (Resistive Load)
Operate Time 10 ms (max.)
Release Time 5 ms (max.)
Electrical Endurance 10^5 ops.
Mechanical Endurance 2 × 10^7 ops.
Power on Value Programmable
Safe Value Programmable



 Ethernet
 Ports 2 x RJ-45, 10/100 Base-TX, Swtich Ports
 LAN bypass Yes
 Security ID, Password and IP Filter
 Protocol Modbus/TCP, Modbus/UDP, Modbus/TCP Security



 Power
 Reverse Polarity Protection Yes
 Consumption 3.6 W (max.)
 Powered from Terminal Block +12 to +48 VDC



 Mechanical
 Dimensions (mm) 76 x 120 x 38 (W x L x H)
 Installation DIN-Rail mounting



 Environment
 Operating Temperature -25 to +75 °C
 Storage Temperature -30 to +80 °C
 Humidity 10 to 90% RH, Non-condensing



Description

 PRODUCT SERIES     DESCRIPTION    QNT   INQUIRY
ETS-7260     CR  Ethernet I/O Module with 2-port Ethernet Switch, with 6-ch Relay Output and 6-ch DI (RoHS) 1
