Data Acquisition

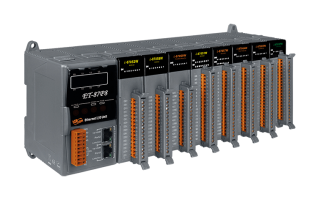

ET-87P8

• Two Ethernet Ports for Daisy-Chain Topology
• LAN Bypass Feature
• Hot Swap Allowed
• Auto Configuration
• LED Indicators for Fault Detection
• Push Buttons to Configure IP Address
• DCON Protocol (ASCII-based protocol)
• 7-Segment display x 4
• 8 Slots for I-87K Modules
• Operating Temperature: -25 ~ +75 °C

Introduction

ET-87P8 is a remote intelligent I/O expansion unit to expand I-87K series I/O modules over the Ethernet for industrial monitoring and controlling applications. It offers two Ethernet switch ports to form a daisy-chain topology. The daisy-chain feature allows ET-87P8 to connect in series to each other or other Ethernet devices. Uses can easily simplify the cabling and save installation space with the feature.

ET-87P8 is designed to be used in harsh and noisy environment, so the hardware is manufactured with wide power input range (10 ~ 30 VDC), isolated power input and can operate under wide temperature (-25 ~ +75 °C). To simplify installation and maintenance of I/O modules, it provides many useful features, such as: hot swap allowed, auto confi guration, LED indicators for fault detection, dual watchdog to keep alive, programmable power on and safe values for safety.

There are more than 30 I/O modules supported with the unit, including analog input/output, digital input/output, counter, frequency I/O modules. We provide various software development kits (SDK) and demos, such as DLL, Labview driver, InduSoft driver, Linux driver, OPC server, etc. The I-87K series I/O modules plugged in the ET-87Pn can be easily integrated into variant software system.

Specifications

 Display
 Type 5 x Digit 7 Segment LED Display



 LED Indicators
 Status 1 x Power, 1 x System, 1 x Auto Configuration, 4 x Slot



 I/O Expansion
 I/O Type I-87K series
 Slots 8



 COM Ports
Ports 1 x RS-232 (Console)
Protocol DCON (ASCII Format)



 HMI
 Push Button 4



 Ethernet
 Ports 2 x RJ-45, 10/100 Base-TX
 Protocol DCON (ASCII Format)



 Power
 Input Range +10 ~ 30 VDC (1 kV Isolated )
 Redundant Power Inputs Yes
 Consumption 6.0 W



 Mechanical
 Dimensions (mm) 312 x 132 x 111 (W x L x H)
 Installation DIN-Rail, Wall mounting



 Environment
 Operating Temperature -25 ~ +75 °C
 Storage Temperature -30 ~ +80 °C
 Humidity 10 to 90% RH, Non-condensing



Description

 PRODUCT SERIES     DESCRIPTION    QNT   INQUIRY
ET-87P8     CR  8-slot Intelligent Ethernet I/O Expansion Unit (DCON Protocol) (RoHS) 1
