Data Acquisition

ET-7017-10

  • Built-in Web Server
  • Web HMI
  • Support for both Modbus TCP and Modbus UDP Protocols
  • Communication Security
  • Dual Watchdog
  • Built-in I/O
    • AI: 10/20 Channels

Introduction

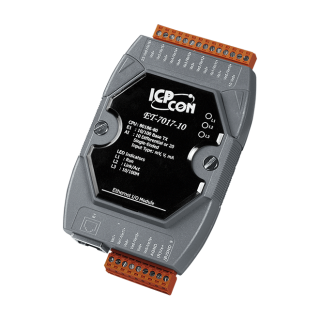

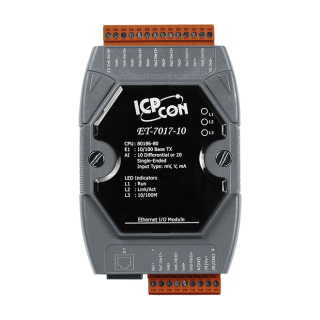

The ET-7017-10 is a module with 10-channel differential or 20-channel single-ended analog inputs. It provides programmable input range on all analog channels (+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA, 0 ~ 20 mA and 4 ~ 20 mA). Each analog channel is allowed to configure an individual range and has 240 Vrms high overvoltage protection. Each analog input can be programmed to accept voltage or current as input depending upon the position of the corresponding jumper. The sampling rate of ET-7017-10 has two modes; fast mode and normal mode for your consideration. ET-7017-10/PET-7017-10/ET-7217-10/PET-7217-10 also has qualification for 4 kV ESD protection as well as 3000 VDC intra-module isolation.

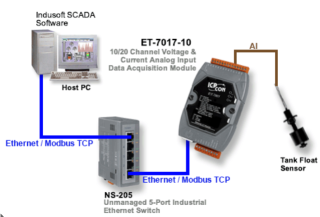

Application

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, and Testing Equipment.

Specifications

 Software
 Built-in Web Server Yes



 CPU Module
 Watchdog Timer Module, Communication (Programmable)



 Isolation
 2-way Isolation Ethernet: 1500 VDC
I/O: 2500 VDC



 EMS Protection
 EFT (IEC 61000-4-4) ±4 kV for Power Line
 ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
±8 kV Air for Random Point
 Surge (IEC 61000-4-5) ±0.5 kV for Power Line



 LED Indicators
 Status Run, Ethernet



 Analog Input
 Channels 10 differential or 20 single-ended (Note1),
software selectable
 Type Voltage
Current
 Range ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V
±20 mA, 0 to 20 mA, 4 to 20 mA
(Jumper Selectable)
 Resolution 16-bit
 Accuracy Normal Mode: ±0.1%
Fast Mode: ±0.5% or better
 Sampling Rate Normal Mode: 10 Hz (total channels)
Fast Mode: 50 Hz (total channels)
 Input Impedance Voltage: 2 MΩ (Differential), 1 MΩ (Single-ended)
Current: 125 Ω
 Common Voltage Protection ±200 VDC
 Overvoltage Protection Differential: 240 Vrms
Single-ended: 150 Vrms
 Overcurrent Protection 50 mA at 110 VDC (max.)
 Individual Channel Configuration Yes
 Open Wire Detection For 4 to 20 mA only
 Isolation ±400 VDC, Virtual Channel to Channel Isolation



 Ethernet
 Ports 1 x RJ-45, 10/100 Base-TX
 Security ID, Password and IP Filter
 Protocol Modbus TCP, Modbus UDP



 Power
Reverse Polarity Protection Yes
Consumption 2.8 W (max.)
Powered from Terminal Block +10 to +30 VDC



 Mechanical
 Dimensions (mm) 72 x 123 x 35 (W x L x H)
 Installation DIN-Rail mounting



 Environment
 Operating Temperature -25 ~ +75 °C
 Storage Temperature -30 ~ +80 °C
 Humidity 10 to 90% RH, Non-condensing



Description

 PRODUCT SERIES     DESCRIPTION    QNT   INQUIRY
 ET-7017-10     CR  Ethernet I/O Module with 10/20-ch AI (RoHS) 1
