High Speed Modules

DN-TC-M

Introduction

The DN-TC-M is a termination board for TC input modules. This termination board is also built-in CJC to measure temperature more accurate. The size of this termination board is also small and same as other mini termination boards for users’ installation.

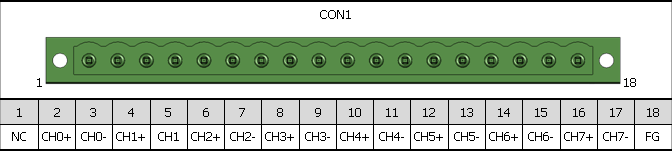

PIN Assignments

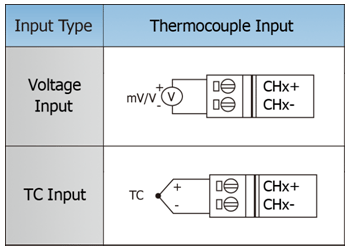

Wiring

Specifications



 Analog Input
 Channels 8
 Type Thermocouple



 Mechanical
 Dimensions (mm)  112 x 117 x 29
 Installation  DIN-Rail & wall mounting



 Environment
Operating Temperature -25 ~ 75 °C
Humidity 5 ~ 95% RH, Non-condensing



Accessories

CA-37100AM

CA-3710AM

CA-3710D

Description

 PRODUCT SERIES     DESCRIPTION    QNT   INQUIRY
 DN-TC-M     CR  Termination board for thermocouple module (RoHS) 1
