DN-RTD-M

Introduction

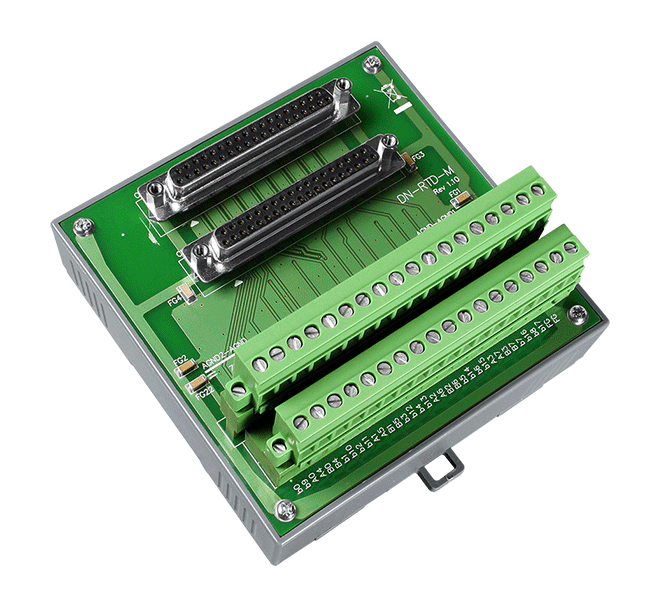

The DN-RTD-M is a termination board for RTD input modules. The size of this termination board is also small and same as other mini termination boards for users’ installation.


PIN Assignments




Wiring

Specifications



 Digital Output
 Channels 8



 Mechanical
 Dimensions (mm) 112 x 117 x 29
 Installation DIN-Rail & wall mounting



 Environment
 Operating Temperature -25 ~ 75 °C
 Humidity 5 ~ 95% RH, Non-condensing



Accessories

CA-37100AM CA-3710AM CA-3710D

Description

PRODUCT SERIES     DESCRIPTION    QNT   INQUIRY
 DN-RTD-M     CR  Termination board for RTD module (RoHS) 1
