High Speed Modules

DN-PI-M

Introduction

The DN-PI-M is a termination board for pulse input modules. The size of DN-PI-M is relatively small than other termination boards. Due to the small size of termination board, the DN-PI-M can be fulfilled some applications in small cabinet.

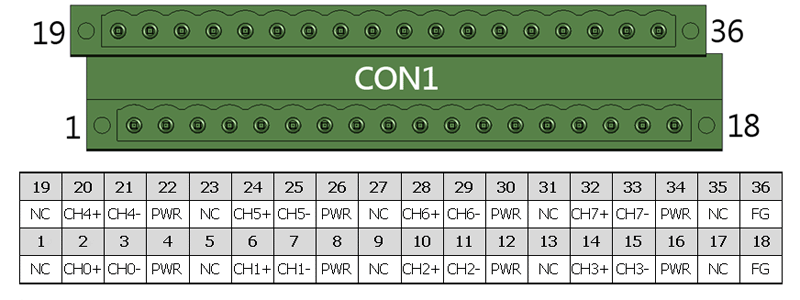

PIN Assignments

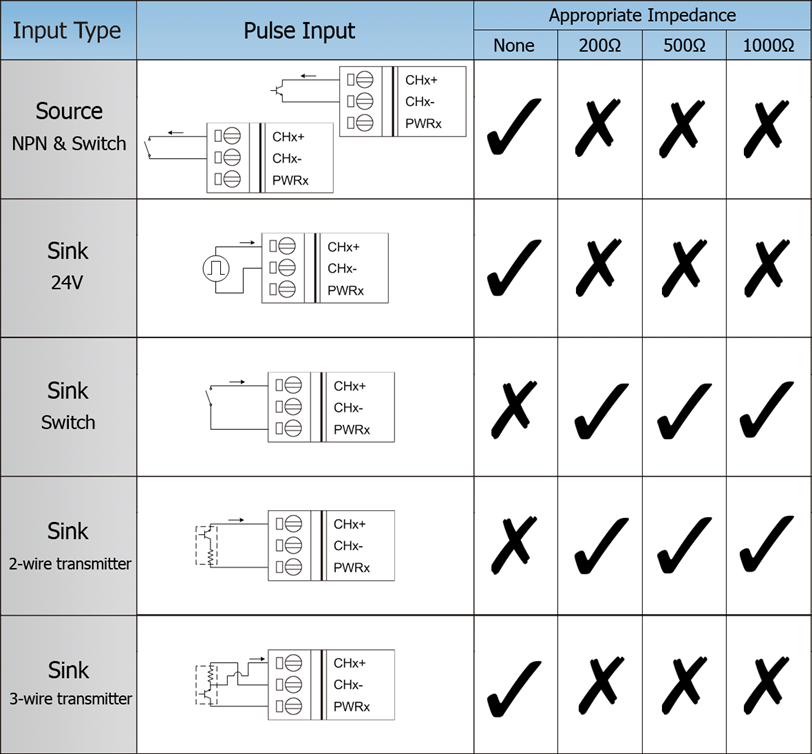

Wiring

Specifications



 Analog Input
Channels 8



 Mechanical
 Dimensions (mm) 112 x 117 x 29
 Installation DIN-Rail & wall mounting



 Environment
 Operating Temperature -25 ~ 75 °C
 Humidity 5 ~ 95% RH, Non-condensing



Accessories

CA-37100AM CA-3720AM CA-3730AM

Description

 PRODUCT SERIES     DESCRIPTION    QNT   INQUIRY
 DN-PI-M   Termination board for pulse input module (RoHS) 1
