High Speed Modules

DN-DIO-M

Introduction

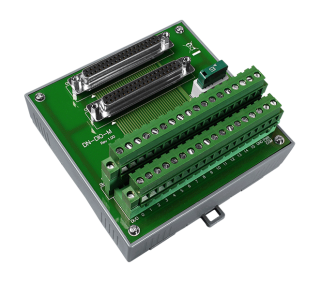

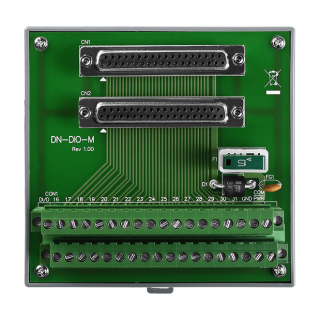

The DN-DIO-M is a termination board for digital input and output modules. The size of DN-DIO-M is relatively small than other termination boards. Due to the small size of termination board, the DN-DIO-M can be fulfilled some applications in small cabinet.

PIN Assignments




Wiring

Digital Input




Digital Output



Specifications



 Digital Output
 Channels 32



 Mechanical
 Dimensions (mm) 112 x 117 x 29
 Installation DIN-Rail & wall mounting



 Environment
 Operating Temperature -25 ~ +75 °C
 Humidity 5 ~ 95% RH, Non-condensing



Accessories

CA-37100AM CA-3710AM CA-3710D

Description

 PRODUCT SERIES     DESCRIPTION    QNT   INQUIRY
 DN-DIO-M     CR  Universal termination board for digital I/O (RoHS) 1
