DN-DI-32DW

Introduction

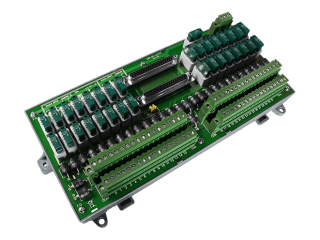

The DN-DI-32DW is a termination board with EMS protection. It provides sink and source connections for comprehensive applications. Moreover, the DN-DI-32DW supports wet and dry contact to fulfill most applications. In additional, this board also offers each channel one COM pin, the benefit for users is that they need no more additional terminal block for extending COM. Furthermore, the DN-DI-32DW offers removable fuse protection for the field loops with local indication of fuse failure and overvoltage and transient protection.



PIN Assignments

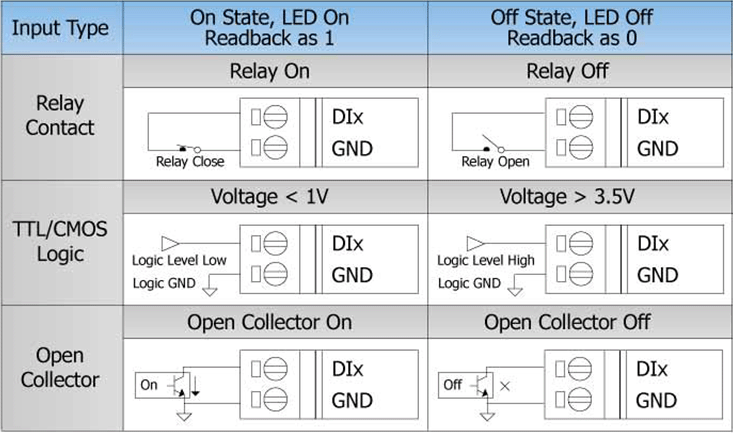

Wiring

Dry contact (Current sourcing)




Dry contact (Current sinking)

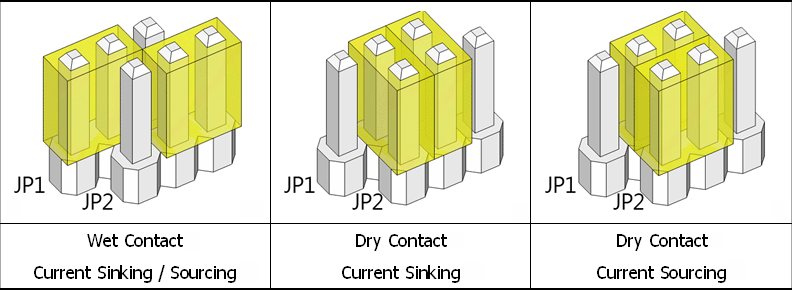

Jumper Setting

The DN-DI-32DW offers various wire connections to connect with field device to digital input module. It can be switched to different wire connection by changing jumper setting. The detail of jumper settings are described as following table.

NOTE: Please make sure the external power is attached as well when use dry contact wire connection.

Specifications



 Digital Input
 Channels 32
 Type Dry, Wet
 Fuse Protection 320mA for each channel (With physical indication)



 Mechanical
 Dimensions (mm) 126.6 x 274.6 x 25.5
 Installation DIN-Rail & wall mounting



 Environment
 Operating Temperature -25 ~ 75 °C
 Humidity 5 ~ 95% RH, Non-condensing



Accessories

CA-37100AM
CA-3710AM
CA-3710D

Description

 PRODUCT SERIES     DESCRIPTION    QNT   INQUIRY
 DN-DI-32DW     CR   Termination board for digital input with high EMS protection and removable fuses (RoHS) 1
