High Speed Modules

DN-AIO-M

Introduction

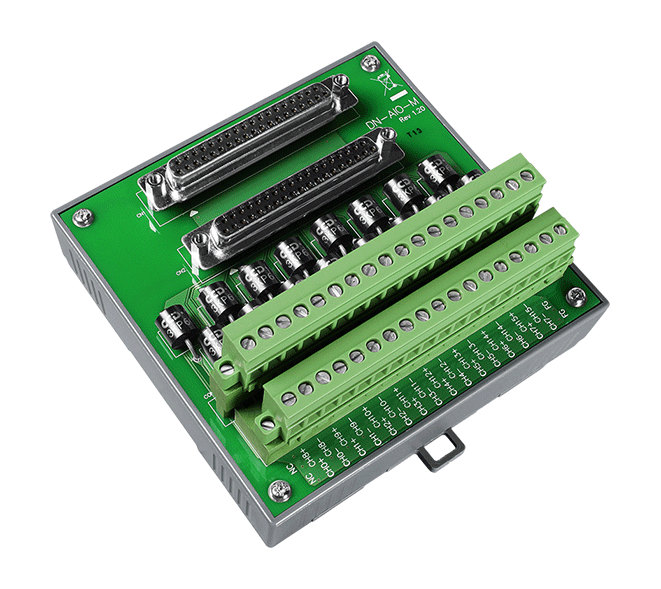

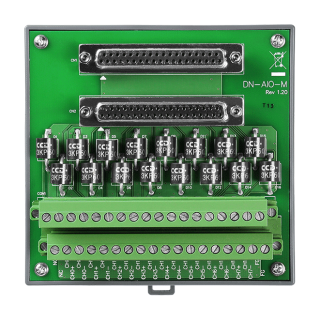

The DN-AIO-M is a termination board for analog input and output modules. It is a general termination board for most kind of analog modules. The size of this termination board is also small and same as other mini termination boards for users' installation.

PIN Assignments




Wiring

Voltage/Current Input




Voltage/Current Output




Specifications



 Digital Output
 Channels 16



 Mechanical
 Dimensions (mm) 112 x 117 x 29
 Installation DIN-Rail & wall mounting



 Environment
 Operating Temperature -25 ~ 75 °C
 Humidity 5 ~ 95% RH, Non-condensing



Accessories

CA-37100AM CA-3710AM CA-3710D

Description

 PRODUCT SERIES     DESCRIPTION    QNT   INQUIRY
 DN-AIO-M     CR  Universal termination board for analog I/O (RoHS) 1
