SIGNAL CONDITIONING

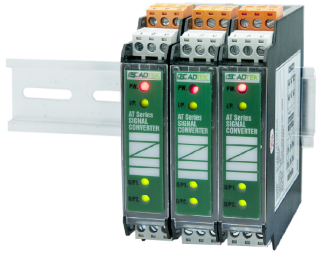

AT Series Converter (17.5mm)

* ˙Output for 0~5V / 0~10V / 1~5V / 2~10V / 4~20mA /
* 0~20mA changeable by dip switches and terminals
* ˙Dual different signals output available
* ˙LED indications for power, input and output status

* ˙0.1% accuracy available in option
* ˙17.5 mm thin profile and 35mm DIN rail mounting
* ˙CE Approved & RoHS

Introduction

AT series converter / distributor primarily designed for use in the general signal conversion and isolation circuitas 4~20mA0~10VRTD (Pt100Ω) Load CellPotentiometer and AC Voltage/Current…Complete models This section slim design of the converter / distributor, in addition to providing two groups of signal output (Isolation) or 24V excitation supply for the transmitter used, the switching power supply will provide installation convenience. The top and designed power supply, input and output indicators and removable terminal blocks to facilitate on-site construction and working status view.

Description

 Model    Measurement / Input   Analogue Output   Excitation Output
AT-VA  AC/DC Voltage 0~150V, 0~300V, 0~600V(specify)
AC/DC Current 0 ~ 5A, 0~1A(specify),
DC 0~50mV, 0~60mV, 0~75mV, 0~100mV
1 OR 2       NA
AT-PR DC Current 0/4~20mA, Voltage 0/1~5/10V (Choose DP-type,switchable) 1 OR 2 Option 24V/30mA
AT-TR Rtd temperature Pt100Ω 1 OR 2 Option 24V/30mA
AT-SG Strain Gauge 0~1.0mV/~2.0mV/~3.0mV/~4.0mV per 1 voltage supply 1 10V/30mA
AT-PM Potentio-meter 0~2.0kΩ(3 wire), 2.0kΩ~100.0kΩ(3 wire) 1 OR 2         NA
AT-RS Resistance 0~200Ω/~200KΩ(2 wire)  1 OR 2         NA
