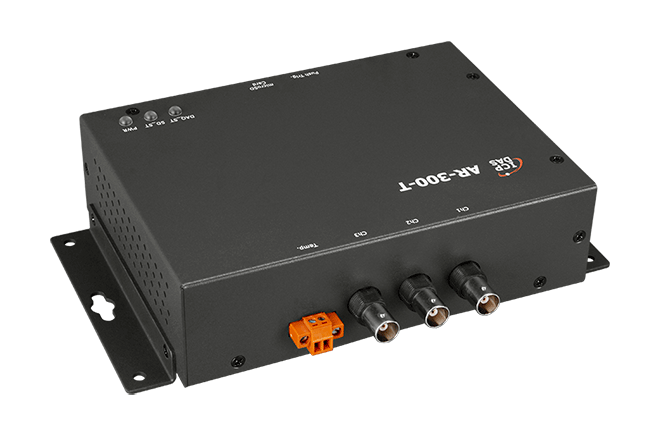

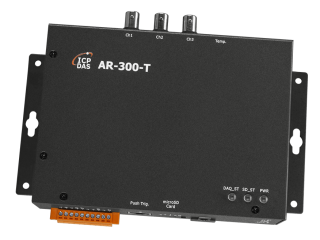

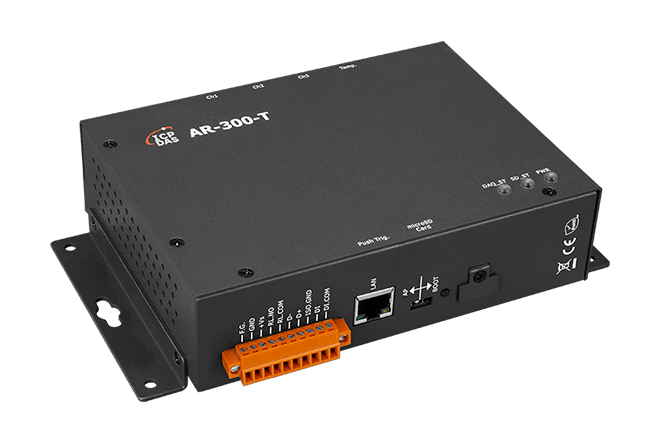

AR-300-T

High Speed Modules

AR-300-T

  • 3 simultaneous, 16-bit resolution ADC
  • Support 3-ch IEPE input, 1-ch Thermistor input, and built-in 3 mA excitation current.
  • Support sampling rate: 125kHz/100kHz/50kHz/20kHz/10kHz/5kHz
  • Max. Recording time: 30 m (5kHz)
  • Flexible trigger modes:
        * Push button trigger
        * Schedule trigger
        * Analog threshold trigger
        * Digital input trigger
        * Software remote trigger
  • Supports 4 to 32 GB micro SDHC type flash

Introduction

AR-300-T is a high-performance dynamic signal acquisition module equipped with 3 channel IEPE input providing simultaneous-sampling at up to 125 kHz per channel and 1 channel Thermistor input. The module has a built-in 16- bit resolution ADC and 3 mA excitation current to measure IEPE sensors, and a micro SDHC flash card for data logging. It also supports flexible trigger modes, sampling rates, and recording time span, making it ideal for signal measurement in vibration applications.

Application

  • Big data analysis
  • system monitoring
  • trend analysis
  • predictive maintenance

Specifications



 LED Indicators
 Status 1 x PWR
1 x DAQ
1 x SD



 Temperature Measurement
 Sensor Type Thermistor
 Channels 1
 Range 0 °C ~ +80 °C
 Accuracy ±2 °C
 Installation Wall-mount
 Trigger Mode Push-button triggering, timed triggering, threshold triggering, digital input triggering, remote triggering by utility software



Analog Input
 Channels 1, Dry Contact: Source / Wet Contact: Sink or Source
 ON Voltage Level Dry: Close to GND
Wet: +10 VDC to +50 VDC
 OFF Voltage Level Dry: Open
Wet: +4 VDC max



 Digital Input
 Channels 1, Dry Contact: Source / Wet Contact: Sink or Source
 ON Voltage Level Dry: Close to GND
Wet: +10 VDC to +50 VDC
 OFF Voltage Level Dry: Open
Wet: +4 VDC max



 Relay Output
 Channels Form A x 1
 Type Power Relay
 Contact Rating 5A@250 VAC (47 ~ 63 Hz)
5A@30 VDC
 Operate Time 10 ms
 Release Time 5 ms
 Electrical Endurance 100,000 times min
 Mechanical Endurance 20,000,000 times min



 Ethernet
 Ports 1 x RJ-45, 10/100 Base-TX



 Power
 Consumption 4.3 W



 Mechanical
 Dimensions (mm) 197 x 139 x 57 (W x L x H)
 Installation Wall mounting, rail type



 Environment
 Operating Temperature -25 ~ +75 °C
 Storage Temperature -30 ~ +80 °C
 Humidity 10 to 90% RH, Non-condensing



Accessories

CA-TM-M100-L050P_la01 CA-TM-M200-L050P_la01 CA-TM-P100-L020_la01

Description

 PRODUCT SERIES     DESCRIPTION    QNT   INQUIRY
 AR-300-T     CR  Accelerometer Data Logger Device, 3-ch IEPE Input, 1-ch Thermistor Input (RoHS) 1
